Mexen G00 axial thermostatic set with cover R, white - W903-900-904-20
Mexen G00 axial thermostatic set with cover R, white - W903-900-904-20 Mexen G00 axial thermostatic set with cover R, white - W903-900-904-20 Mexen G00 axial thermostatic set with cover R, white - W903-900-904-20
Brand:
Mexen
Seria:
G00
Ean:
5905315236982
Index:
W903-900-904-20
Color:
White
Connection Diameter:
G 1/2"
Type:
Axial
Series:
G00
Color - White - ()

Mexen G00 axial thermostatic set with cover R, white - W903-900-904-20

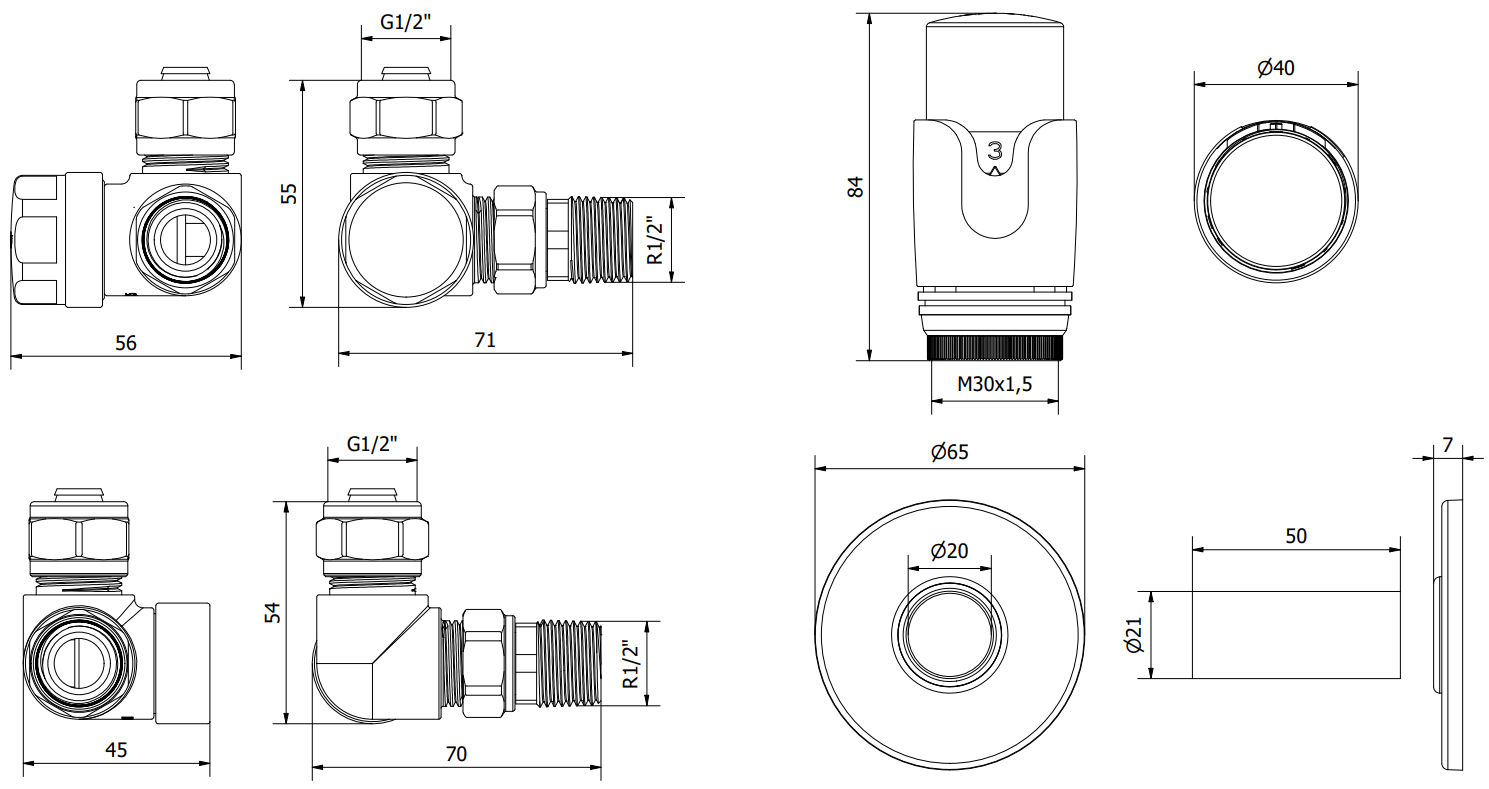

Technical data:

Valve material: Brass

Valve color: White

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head color: White

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Cover color: White

Rosette material: Stainless steel

Outer diameter of rosettes: 65 mm

Height of rosettes: 7 mm

Inner hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Inner diameter of bushings: 20 mm

The cover consists of two individual rosettes and a bushing

The set includes supply and shut-off radiator valve

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G00
Type
Axial
Color
White
Connection Diameter
G 1/2"
Cover
Yes
