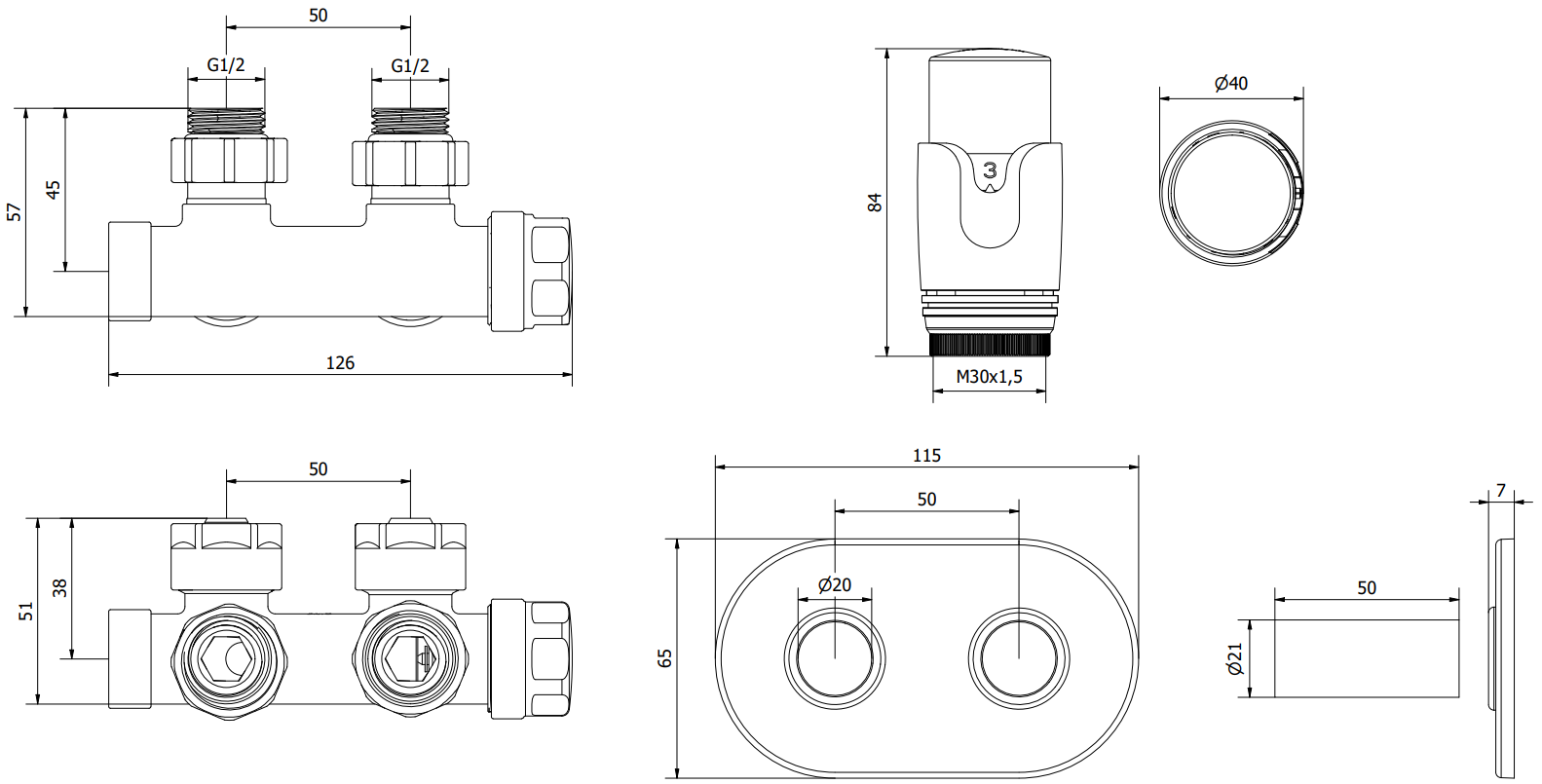

Technical Data:

Valve material: Brass

Valve color: Chrome

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Supply and cut-off radiator valve

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head color: Chrome

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Ability to connect the head from the left or right side of the valve

Mask color: Chrome

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Inner bushing diameter: 20 mm

Spacing of holes for radiator connections: 50 mm

The mask consists of a double rosette and two bushes

Included additional adapters for multi-layer pipes 16x2 mm and adapters for copper pipes 15 mm

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G00
Type
Corner
Color
Chrome
Connection Diameter
G 1/2"
Cover
Yes
