Mexen G05 thermostatic set angled/straight with rosette R, Duplex, DN50, black - W908-958-905-70
Mexen G05 thermostatic set angled/straight with rosette R, Duplex, DN50, black - W908-958-905-70 Mexen G05 thermostatic set angled/straight with rosette R, Duplex, DN50, black - W908-958-905-70 Mexen G05 thermostatic set angled/straight with rosette R, Duplex, DN50, black - W908-958-905-70
Brand:
Mexen
Seria:
G05
Ean:
5905315237811
Index:
W908-958-905-70
Color:
Black
Connection Diameter:
G 1/2"
Type:
Simple
Type:
Corner
Color - Black - ()

Mexen G05 thermostatic set angled/straight with rosette R, Duplex, DN50, black - W908-958-905-70

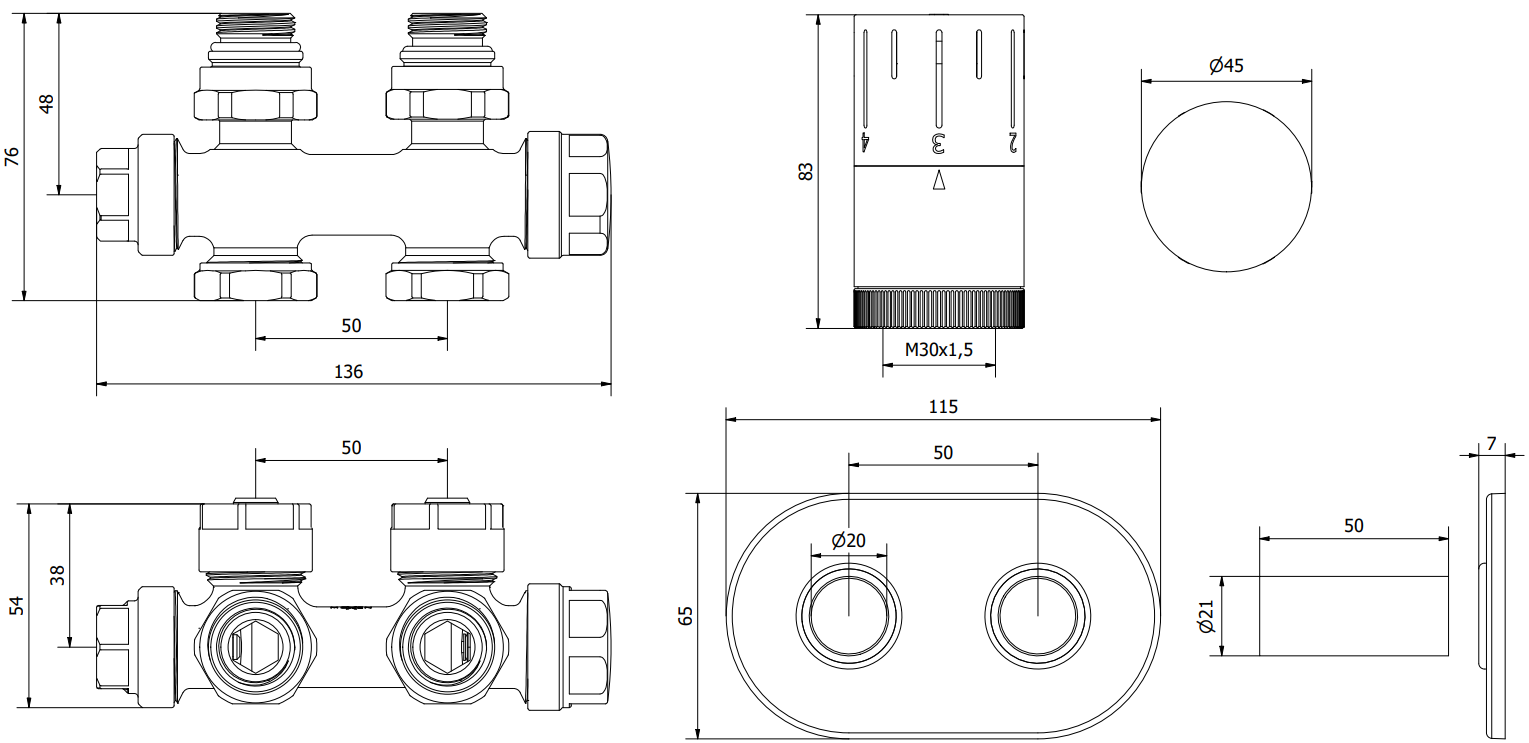

Technical data:

Valve material: Brass

Valve color: Black

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head color: Black

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility of connecting the head from the left or right side of the valve

Rosette color: Black

Escutcheon material: Stainless steel

Escutcheon width: 115 x 65 mm

Escutcheon height: 7 mm

Inner hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Internal sleeve diameter: 20 mm

Spacing of holes for radiator connections: 50 mm

The rosette consists of a double escutcheon and two sleeves

Additional connectors for 16x2 mm multilayer pipes and connectors for 15 mm copper pipes included

Universal supply and shut-off valve for angled and straight connections, regardless of whether the connection is in the wall or floor

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G05
Type
Simple , Corner
Color
Black
Connection Diameter
G 1/2"
Cover
Yes
