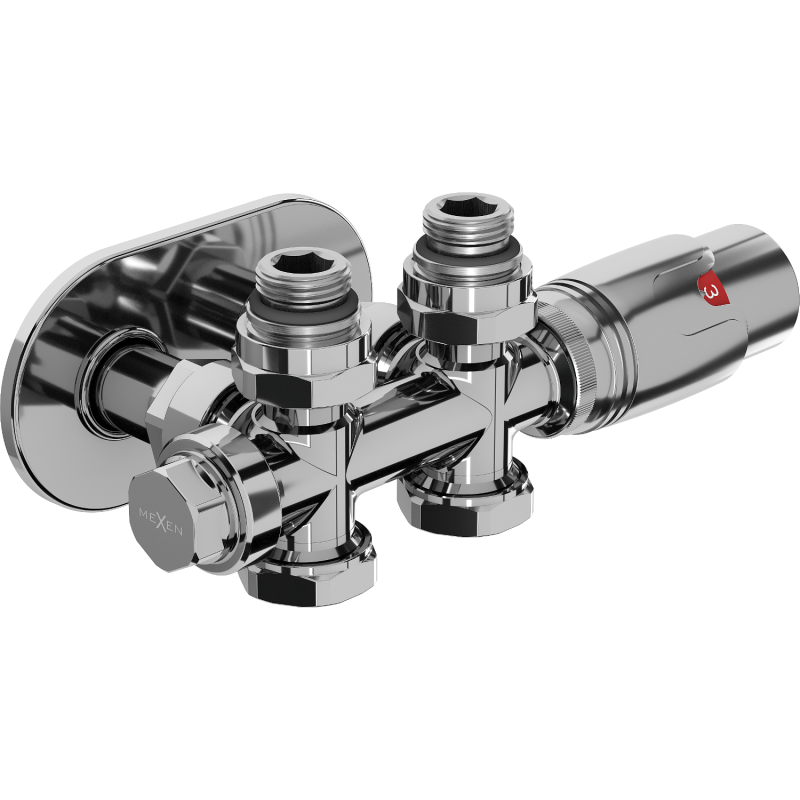

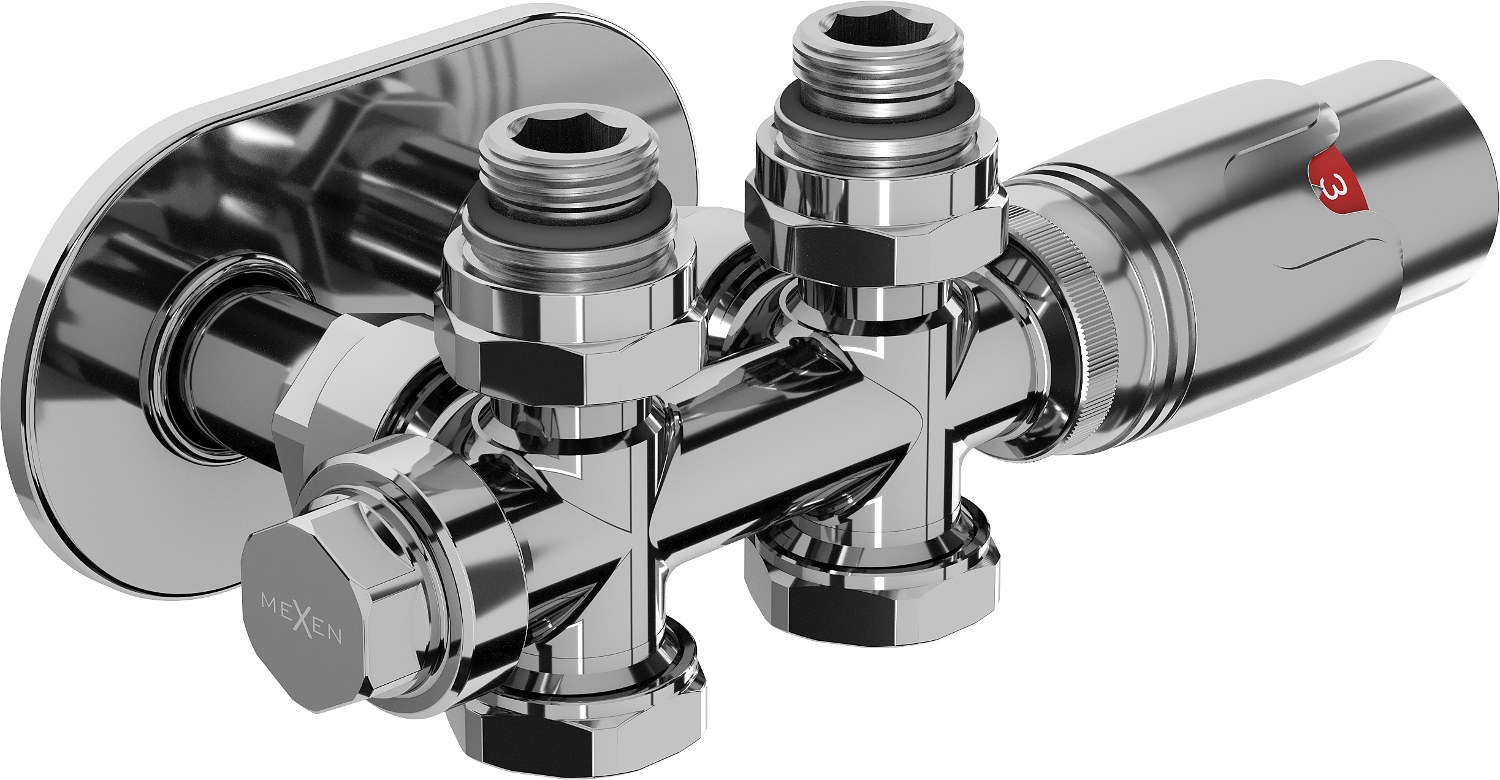

Mexen G00 angled/straight thermostatic set with R rosette, Duplex, DN50, chrome - W908-900-905-01
(0)
Questions
(0)

Mexen G00 angled/straight thermostatic set with R rosette, Duplex, DN50, chrome - W908-900-905-01

Mexen G00 angled/straight thermostatic set with R rosette, Duplex, DN50, chrome - W908-900-905-01
search
  • Mexen G00 angled/straight thermostatic set with R rosette, Duplex, DN50, chrome - W908-900-905-01
  • Mexen G00 angled/straight thermostatic set with R rosette, Duplex, DN50, chrome - W908-900-905-01
  • Mexen G00 angled/straight thermostatic set with R rosette, Duplex, DN50, chrome - W908-900-905-01
Mexen G00 angled/straight thermostatic set with R rosette, Duplex, DN50, chrome - W908-900-905-01
Mexen G00 angled/straight thermostatic set with R rosette, Duplex, DN50, chrome - W908-900-905-01 Mexen G00 angled/straight thermostatic set with R rosette, Duplex, DN50, chrome - W908-900-905-01 Mexen G00 angled/straight thermostatic set with R rosette, Duplex, DN50, chrome - W908-900-905-01
Brand:
Mexen
Seria:
G00
Ean:
5905315237071
Index:
W908-900-905-01
Color:
Chrome
Connection Diameter:
G 1/2"
Type:
Simple
Type:
Corner
Color - Chrome - ()

Mexen G00 angled/straight thermostatic set with R rosette, Duplex, DN50, chrome - W908-900-905-01

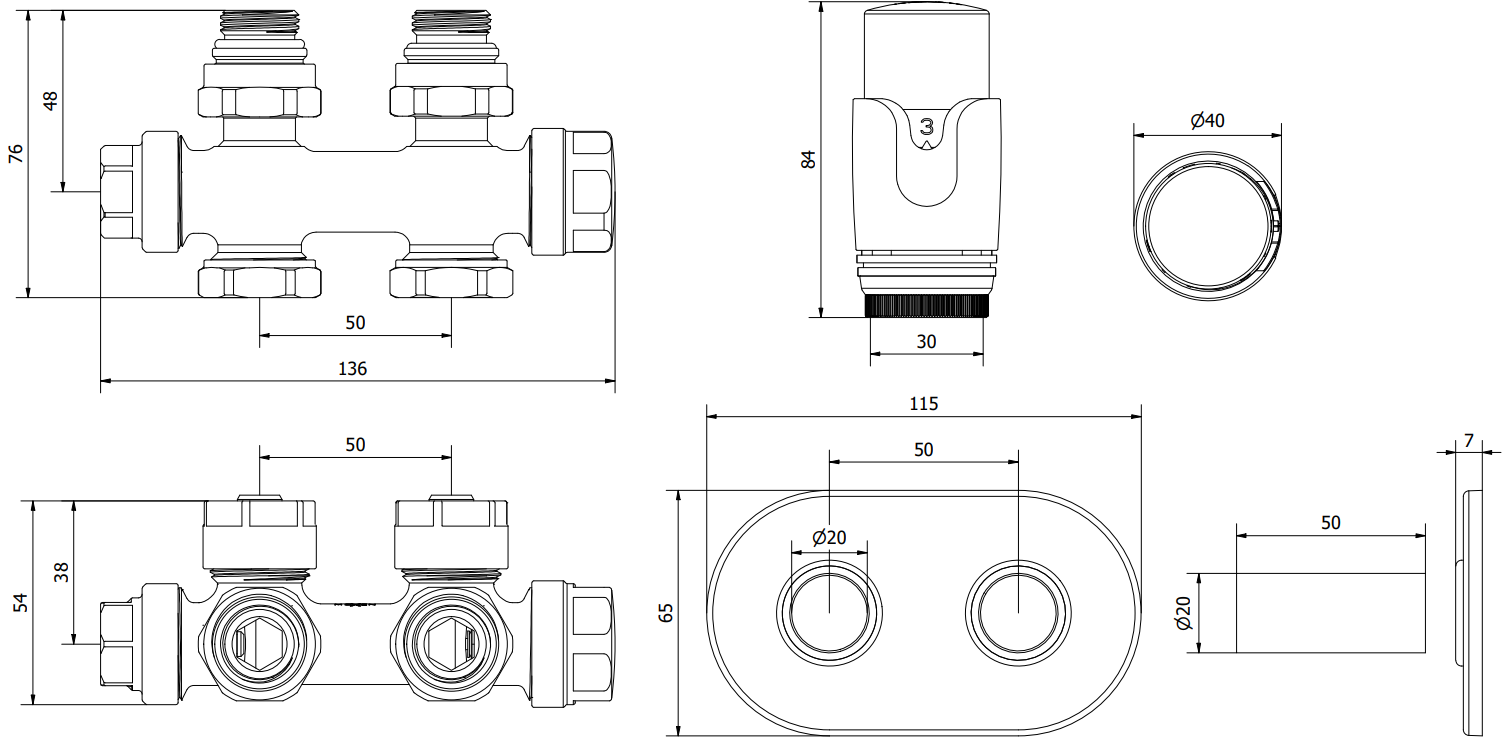

Technical data:

Valve material: Brass

Valve color: Chrome

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head color: Chrome

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Anti-freeze protection 5°C

Possibility to connect the head from the left or right side of the valve

Rosette color: Chrome

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Inner diameter of bushings: 20 mm

Spacing of radiator connection holes: 50 mm

The rosette consists of a double rosette and two bushings

Includes additional fittings for 16x2 mm multilayer pipes and fittings for 15 mm copper pipes

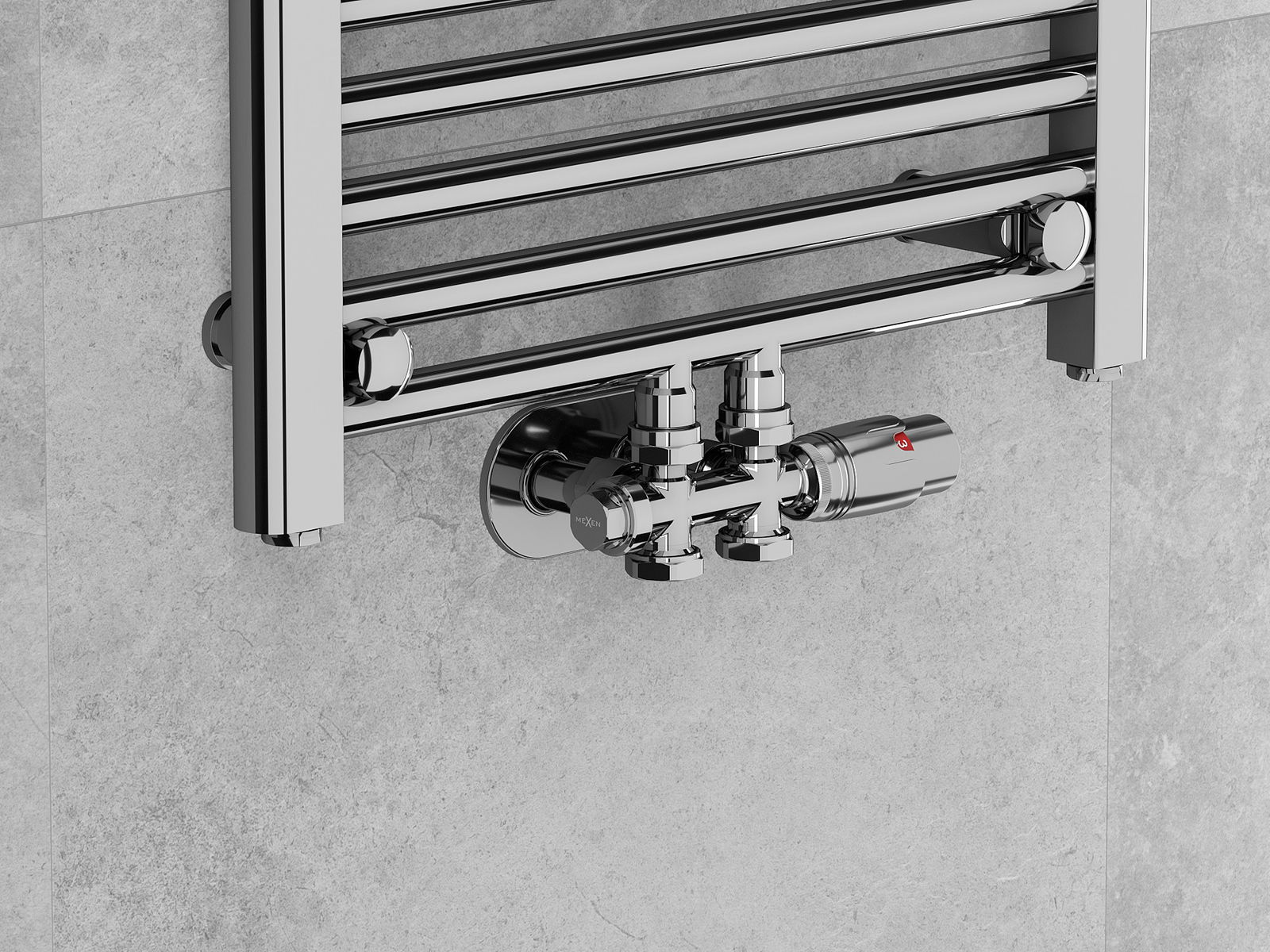

Universal supply and shut-off valve for angled and straight connections, whether the connection is in the wall or in the floor

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G00
Type
Simple , Corner
Color
Chrome
Connection Diameter
G 1/2"
Cover
Yes
