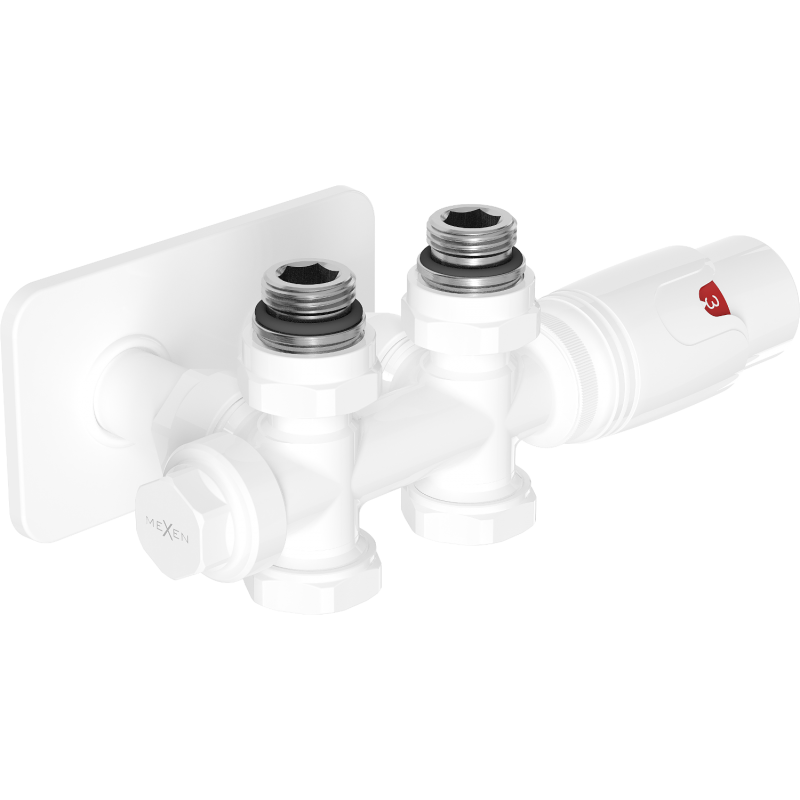

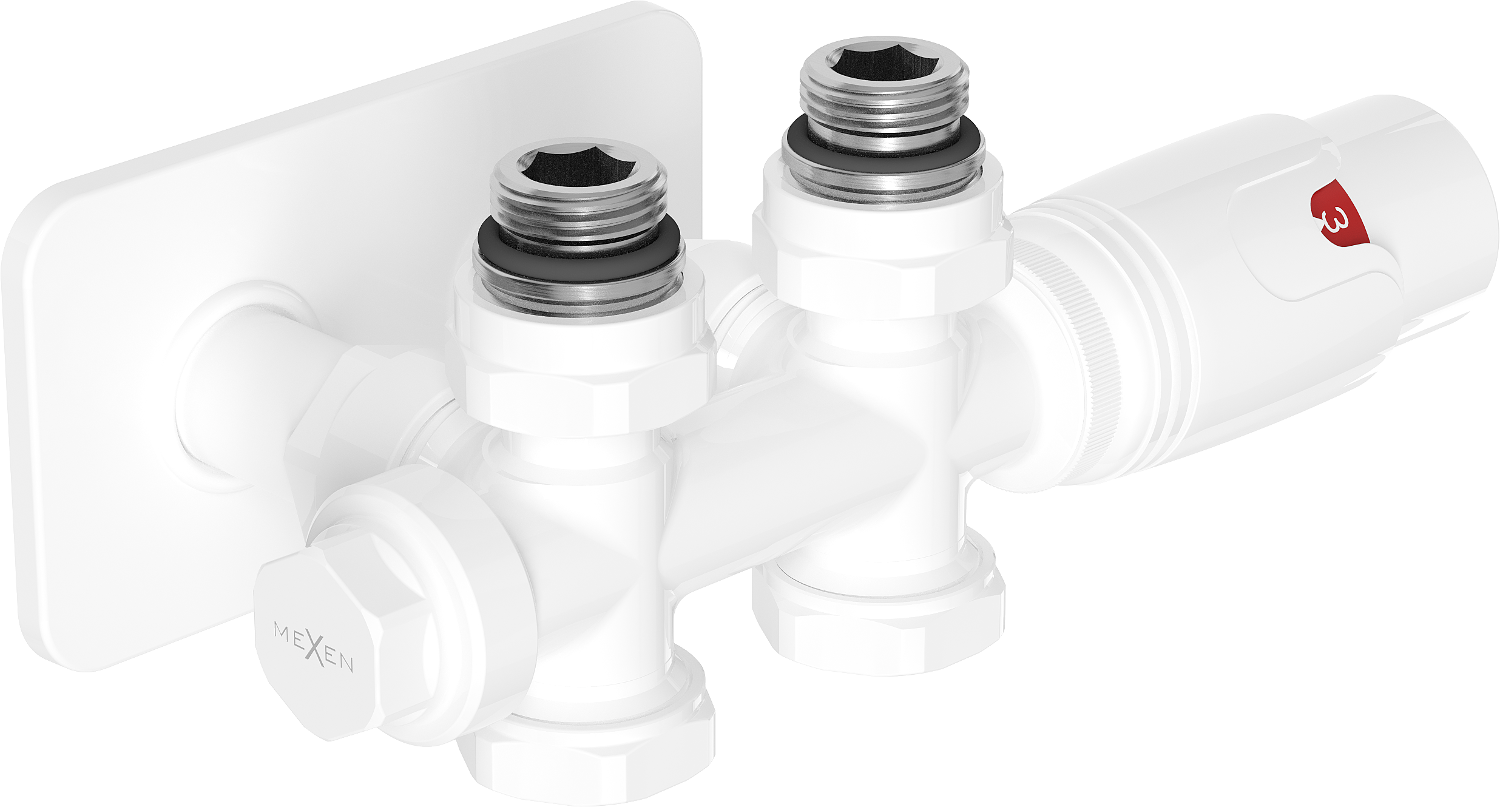

Mexen G00 thermostatic set angled/straight with escutcheon S, Duplex, DN50, white - W908-900-910-20
(0)
Questions
(0)

Mexen G00 thermostatic set angled/straight with escutcheon S, Duplex, DN50, white - W908-900-910-20

Mexen G00 thermostatic set angled/straight with escutcheon S, Duplex, DN50, white - W908-900-910-20
search
  • Mexen G00 thermostatic set angled/straight with escutcheon S, Duplex, DN50, white - W908-900-910-20
  • Mexen G00 thermostatic set angled/straight with escutcheon S, Duplex, DN50, white - W908-900-910-20
  • Mexen G00 thermostatic set angled/straight with escutcheon S, Duplex, DN50, white - W908-900-910-20
Mexen G00 thermostatic set angled/straight with escutcheon S, Duplex, DN50, white - W908-900-910-20
Mexen G00 thermostatic set angled/straight with escutcheon S, Duplex, DN50, white - W908-900-910-20 Mexen G00 thermostatic set angled/straight with escutcheon S, Duplex, DN50, white - W908-900-910-20 Mexen G00 thermostatic set angled/straight with escutcheon S, Duplex, DN50, white - W908-900-910-20
Brand:
Mexen
Seria:
G00
Ean:
5905315237330
Index:
W908-900-910-20
Color:
White
Connection Diameter:
G 1/2"
Type:
Simple
Type:
Corner
Color - White - ()

Mexen G00 thermostatic set angled/straight with escutcheon S, Duplex, DN50, white - W908-900-910-20

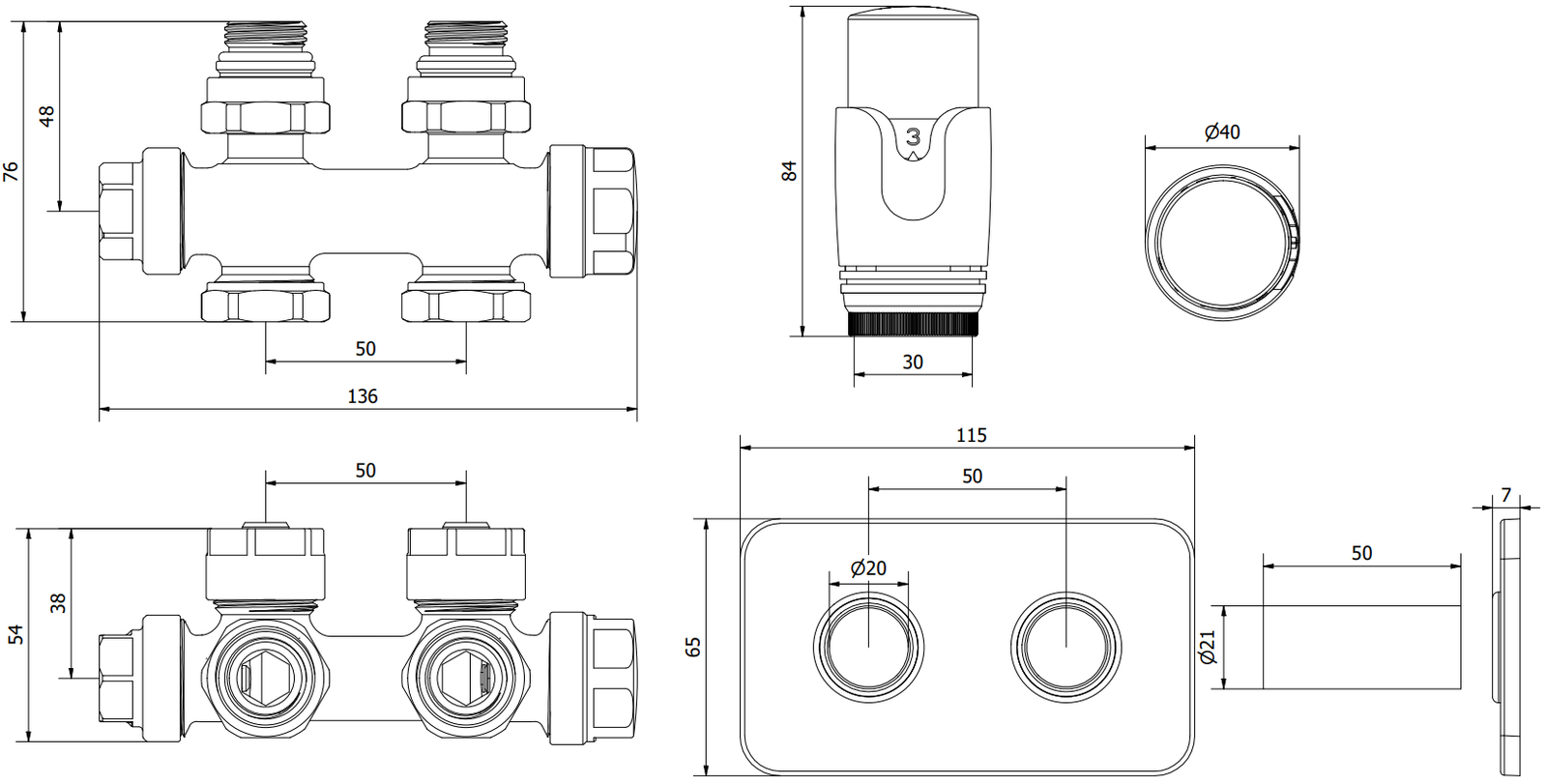

Technical data:

Valve material: Brass

Valve color: White

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum working pressure: 10 bar

Bottom connection with spacing 50 mm

Head thread: M30 x 1.5 mm

Head color: White

Adjustment scale: 0-5

Temperature regulation range: 0-29 °C

Ambient temperature: max 50 °C

Anti-freeze protection 5°C

Possibility to connect the head from the left or right side of the valve

Escutcheon color: White

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Inner diameter of sleeves: 20 mm

Spacing of holes for radiator connections: 50 mm

The escutcheon consists of a double rosette and two sleeves

Additional fittings for 16x2 mm multilayer pipes and fittings for 15 mm copper pipes are included

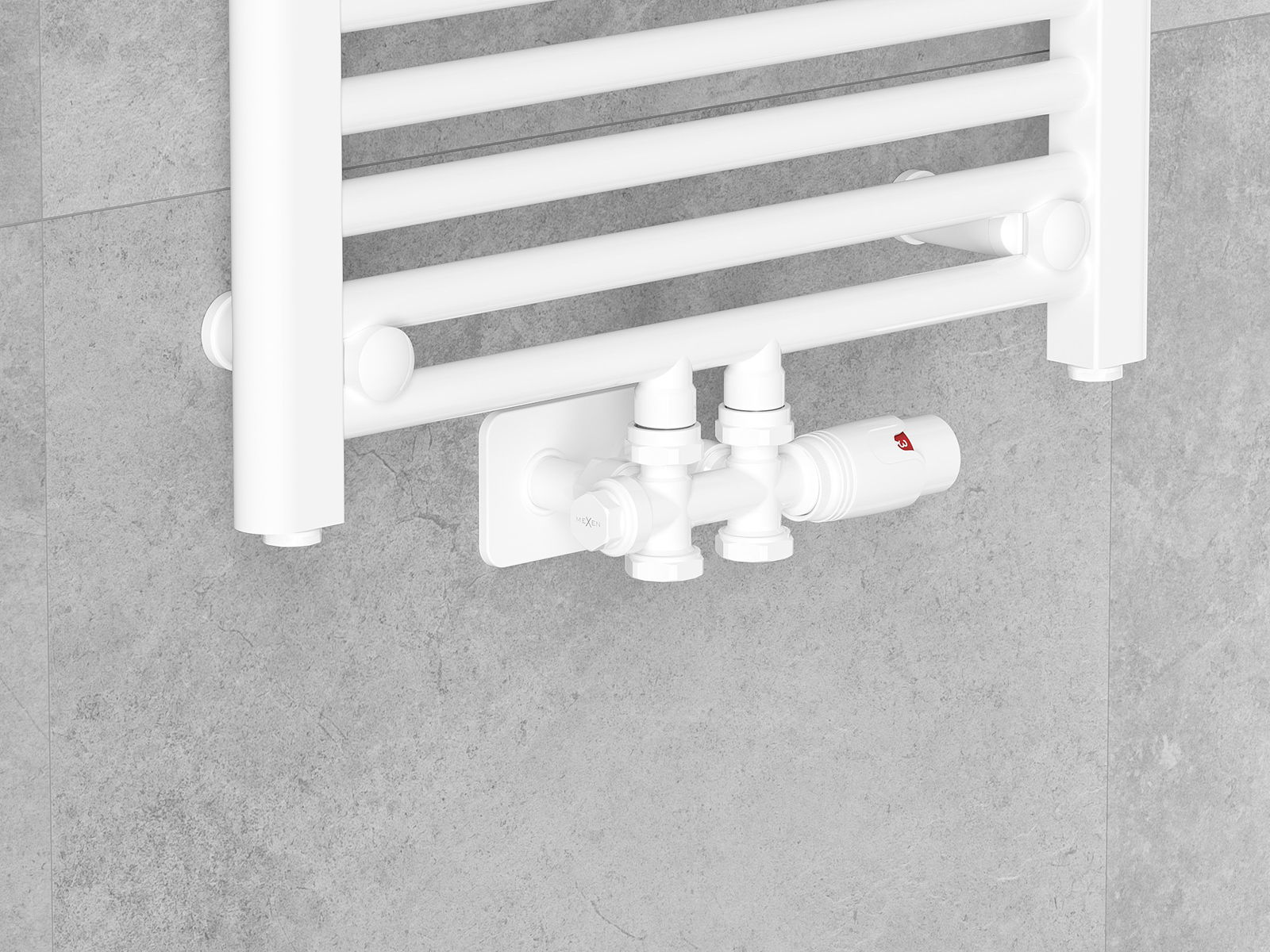

Universal supply and shut-off valve for angled and straight connections, regardless of whether the connection is in the wall or in the floor

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G00
Type
Simple , Corner
Color
White
Connection Diameter
G 1/2"
Cover
Yes
