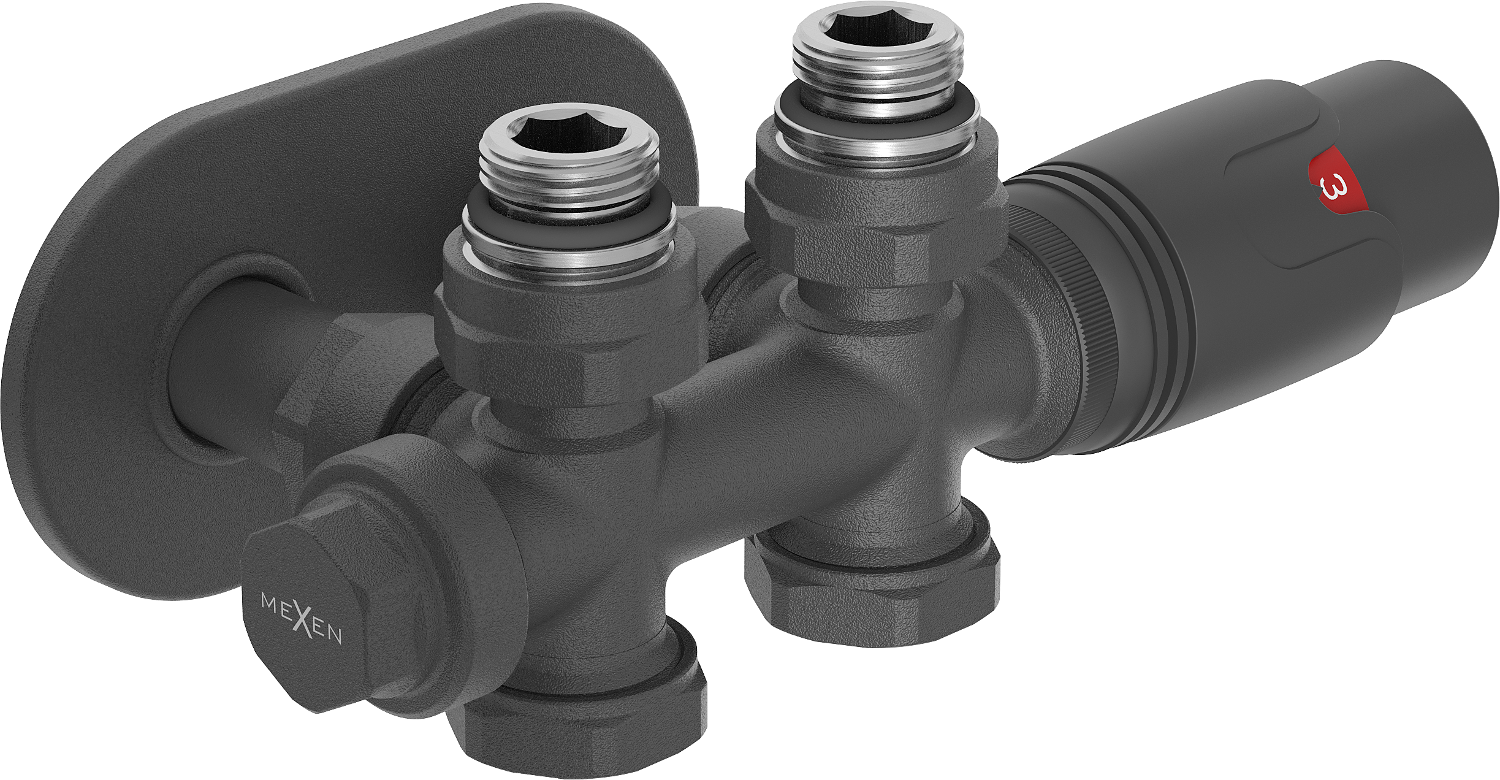

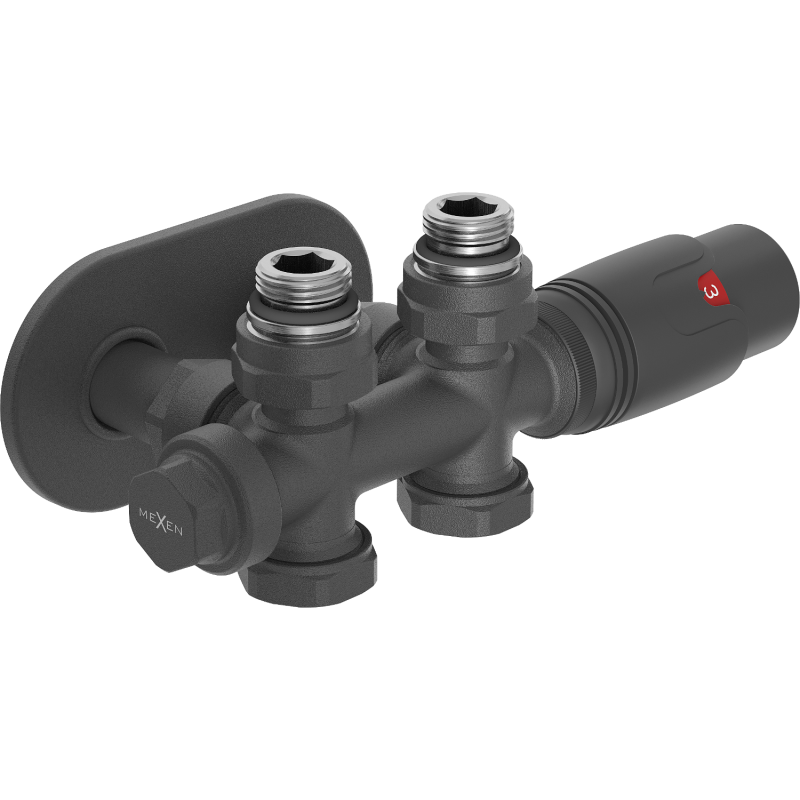

Mexen G00 thermostat set angled/straight with R escutcheon, Duplex, DN50, anthracite - W908-900-905-66
(0)
Questions
(0)

Mexen G00 thermostat set angled/straight with R escutcheon, Duplex, DN50, anthracite - W908-900-905-66

Mexen G00 thermostat set angled/straight with R escutcheon, Duplex, DN50, anthracite - W908-900-905-66
search
  • Mexen G00 thermostat set angled/straight with R escutcheon, Duplex, DN50, anthracite - W908-900-905-66
  • Mexen G00 thermostat set angled/straight with R escutcheon, Duplex, DN50, anthracite - W908-900-905-66
  • Mexen G00 thermostat set angled/straight with R escutcheon, Duplex, DN50, anthracite - W908-900-905-66
Mexen G00 thermostat set angled/straight with R escutcheon, Duplex, DN50, anthracite - W908-900-905-66
Mexen G00 thermostat set angled/straight with R escutcheon, Duplex, DN50, anthracite - W908-900-905-66 Mexen G00 thermostat set angled/straight with R escutcheon, Duplex, DN50, anthracite - W908-900-905-66 Mexen G00 thermostat set angled/straight with R escutcheon, Duplex, DN50, anthracite - W908-900-905-66
Brand:
Mexen
Seria:
G00
Ean:
5905315237101
Index:
W908-900-905-66
Color:
Anthracite
Connection Diameter:
G 1/2"
Type:
Simple
Type:
Corner
Color - Anthracite - ()

Mexen G00 thermostat set angled/straight with R escutcheon, Duplex, DN50, anthracite - W908-900-905-66

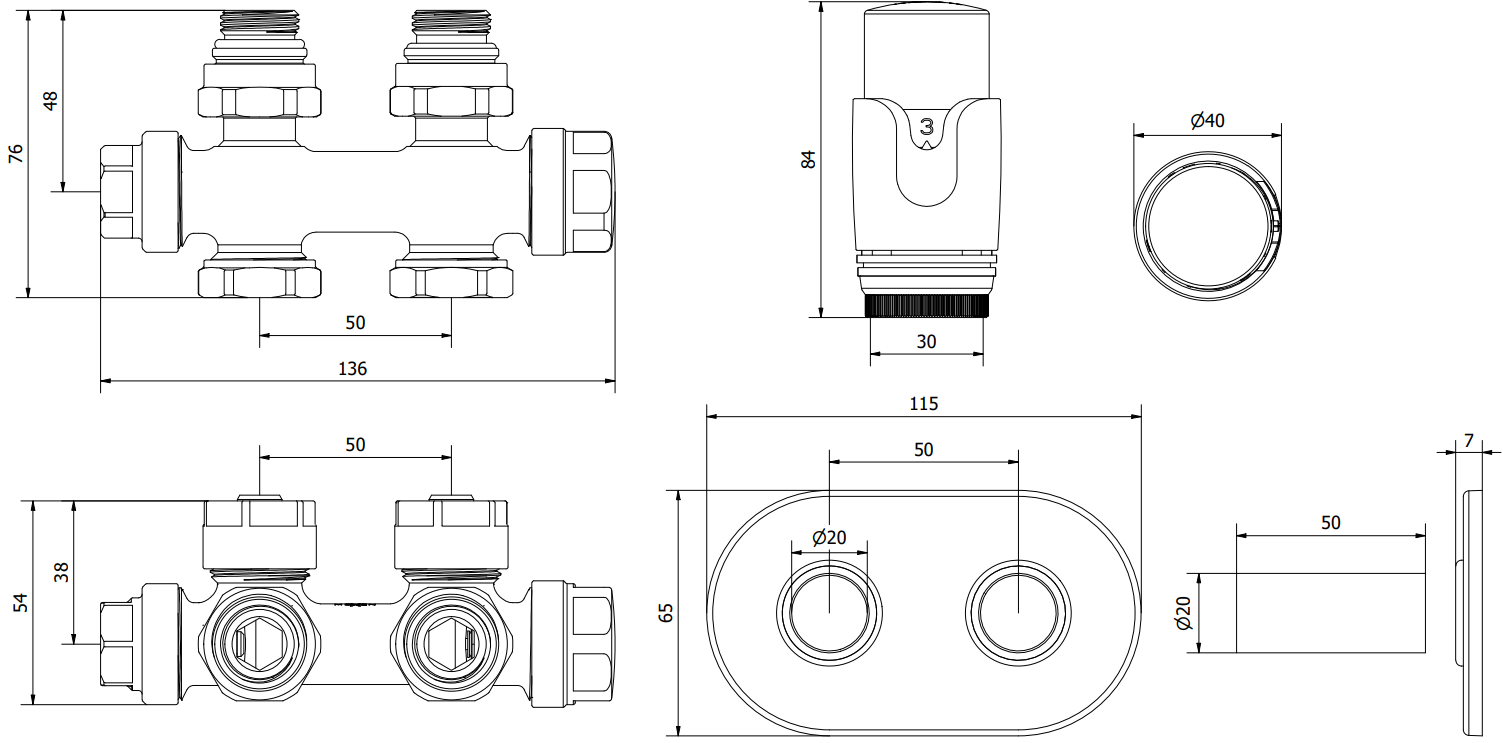

Technical data:

Valve material: Brass

Valve color: Anthracite

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head color: Anthracite

Regulation scale: 0-5

Temperature regulation range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility to connect the head from the left or right side of the valve

Escutcheon color: Anthracite

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Inner sleeve diameter: 20 mm

Spacing of radiator connection holes: 50 mm

The mask consists of a double rosette and two sleeves

Includes additional connectors for multi-layer pipes 16x2 mm and connectors for copper pipes 15 mm

Universal supply and shut-off valve for angled and straight connections independent of whether the connection is in the wall or the floor

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G00
Type
Simple , Corner
Color
Anthracite
Connection Diameter
G 1/2"
Cover
Yes
