Mexen G00 angled/straight thermostat set with R cover, Duplex, DN50, black - W908-900-905-70

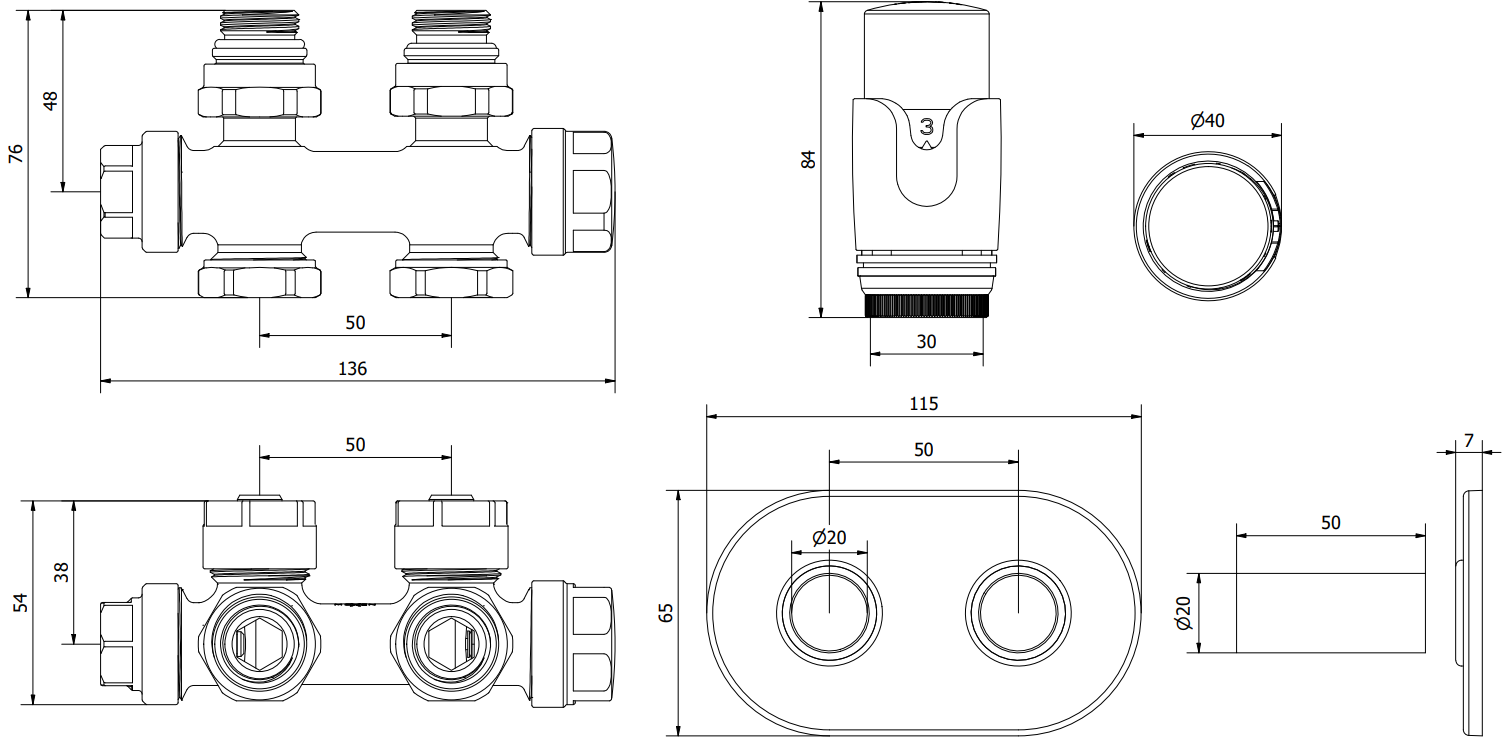

Technical data:

Valve material: Brass

Valve color: Black

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum working pressure: 10 bar

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head color: Black

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Anti-freeze protection 5°C

Possibility of connecting the head from the left or right side of the valve

Cover color: Black

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Internal hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Inner diameter of the bushings: 20 mm

Spacing of holes for radiator connections: 50 mm

The cover consists of a double rosette and two bushings

Includes additional fittings for 16x2 mm multilayer pipes and fittings for 15 mm copper pipes

Universal supply and shut-off valve for angled and straight connections

Innovative solutions used in this product

2 years warranty
