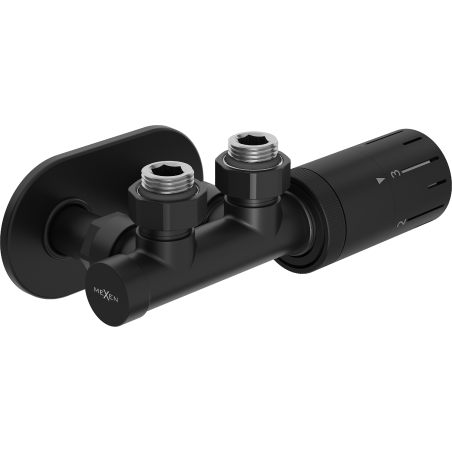

Mexen G05 thermostat set angled with cover R, Duplex, DN50, black - W907-958-905-70
Mexen G05 thermostat set angled with cover R, Duplex, DN50, black - W907-958-905-70 Mexen G05 thermostat set angled with cover R, Duplex, DN50, black - W907-958-905-70 Mexen G05 thermostat set angled with cover R, Duplex, DN50, black - W907-958-905-70
Brand:
Mexen
Seria:
G05
Ean:
5905315237767
Index:
W907-958-905-70
Color:
Black
Connection Diameter:
G 1/2"
Type:
Corner
Series:
G05
Color - Black - ()

Mexen G05 thermostat set angled with cover R, Duplex, DN50, black - W907-958-905-70

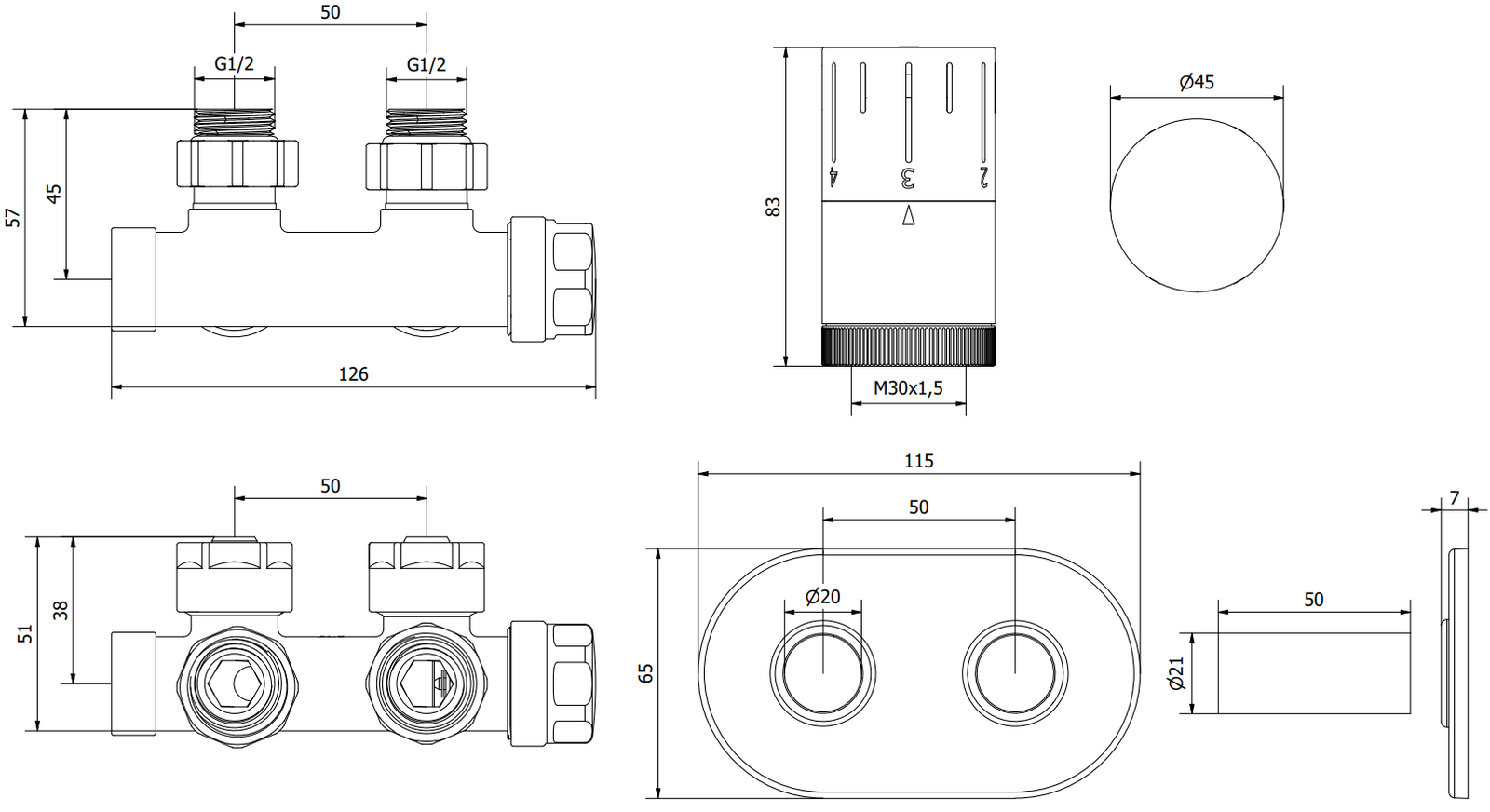

Technical data:

Valve material: Brass

Valve color: Black

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Radiator supply and shut-off valve

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head color: Black

Regulation scale: 0-5

Temperature regulation range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility to connect the head from the left or right side of the valve

Cover color: Black

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Shank material: Brass

Shank length: 50 mm

Inner diameter of the socket: 20 mm

Spacing of holes for radiator connections: 50 mm

The cover consists of a double rosette and two sockets

Additional fittings for 16x2 mm multi-layer pipes and fittings for 15 mm copper pipes are included

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G05
Type
Corner
Color
Black
Connection Diameter
G 1/2"
Cover
Yes
