Brand:
Mexen
Seria:
G05
Ean:
5905315237996
Index:
W907-958-910-50
Color:
Gold
Connection Diameter:
G 1/2"
Type:
Corner
Series:
G05
Color - Gold - ()

Mexen G05 Thermostatic Angle Set with Rosette S, Duplex, DN50, Gold - W907-958-910-50

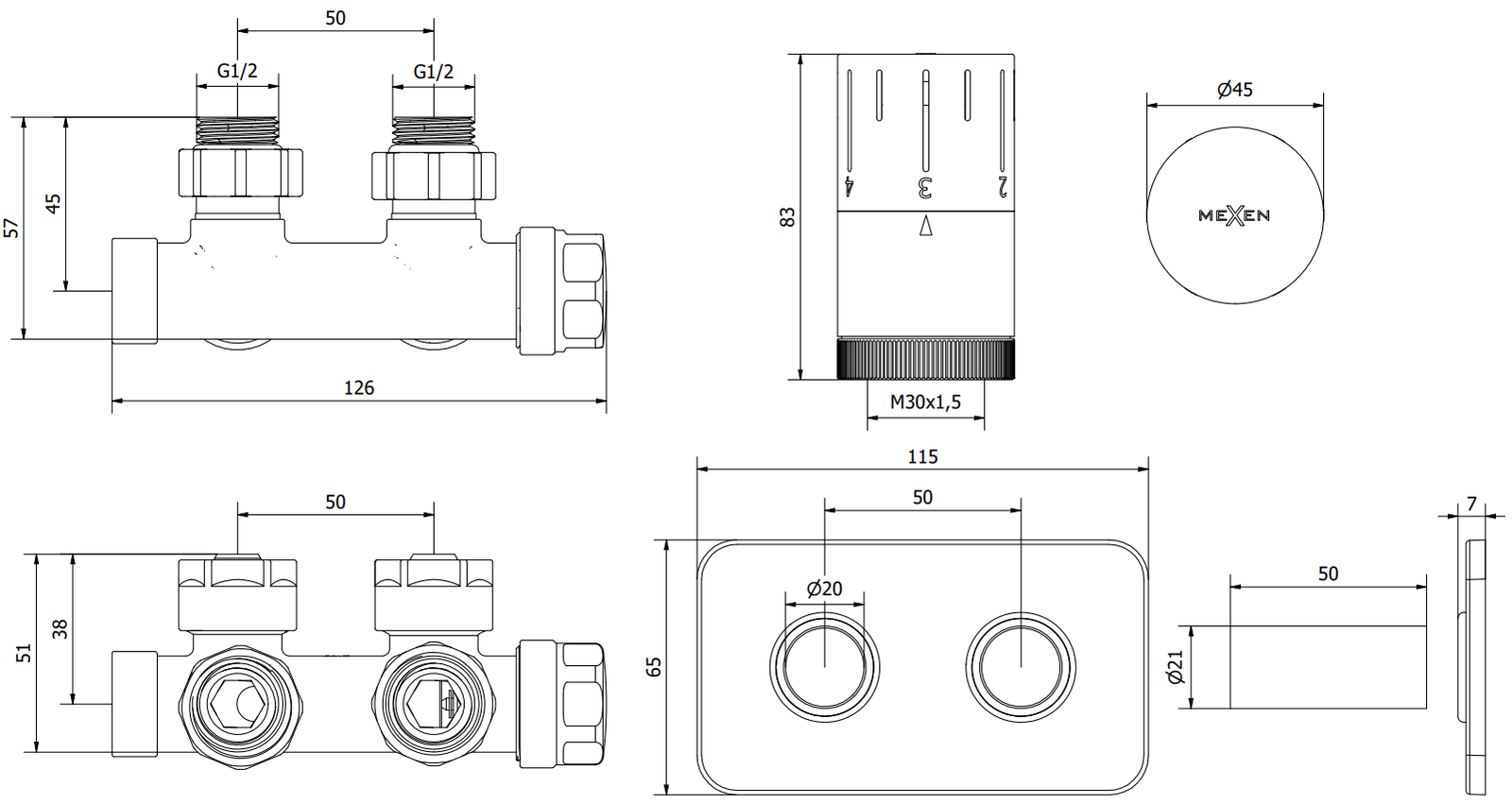

Technical data:

Valve material: Brass

Valve color: Gold

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Heating valve for supply and shut-off

Bottom connection with 50 mm spacing

Head thread: M30 x 1,5 mm

Head color: Gold

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility to connect the head from the left or right side of the valve

Cover color: Gold

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Bushing inner diameter: 20 mm

Distance between radiator connections: 50 mm

The cover consists of a double rosette and two bushings

The set includes additional connectors for 16x2 mm multilayer pipes and connectors for 15 mm copper pipes

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G05
Type
Corner
Color
Gold
Connection Diameter
G 1/2"
Cover
Yes
