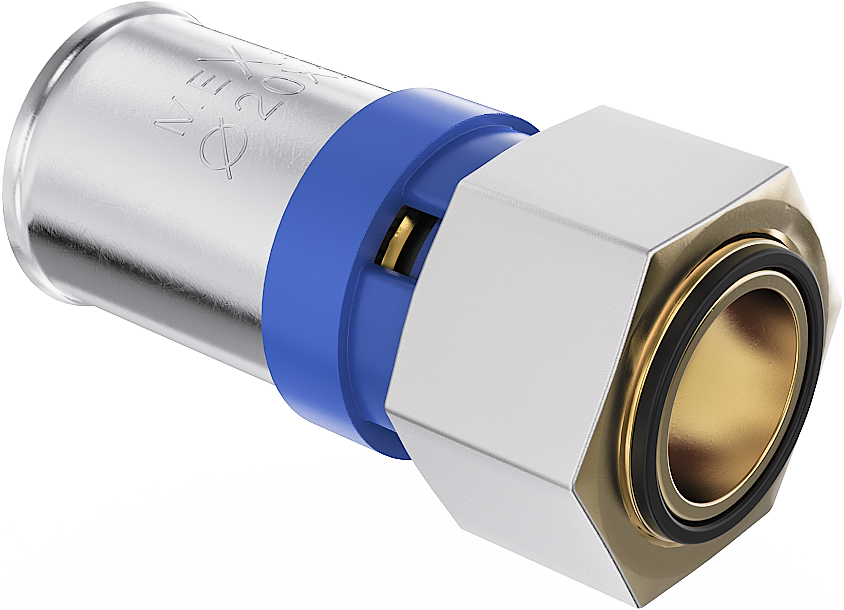

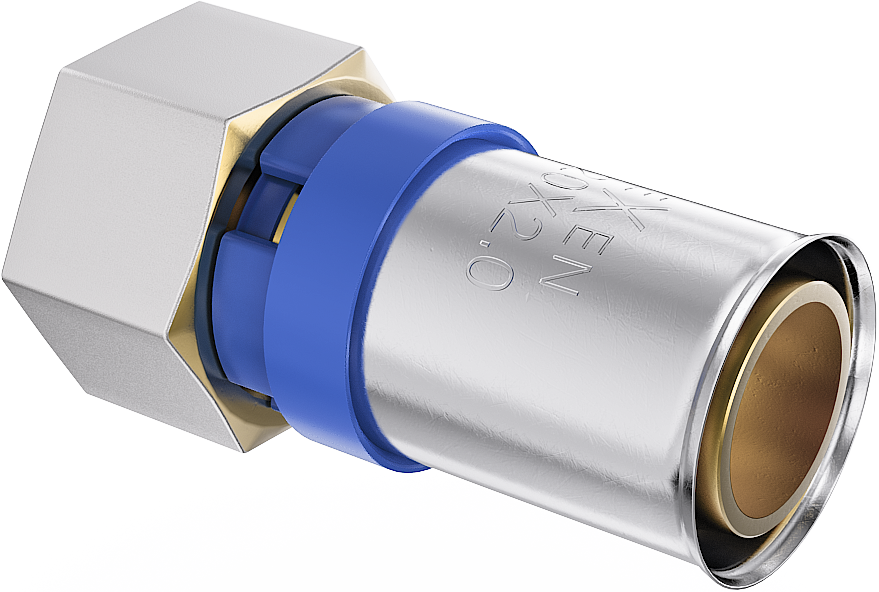

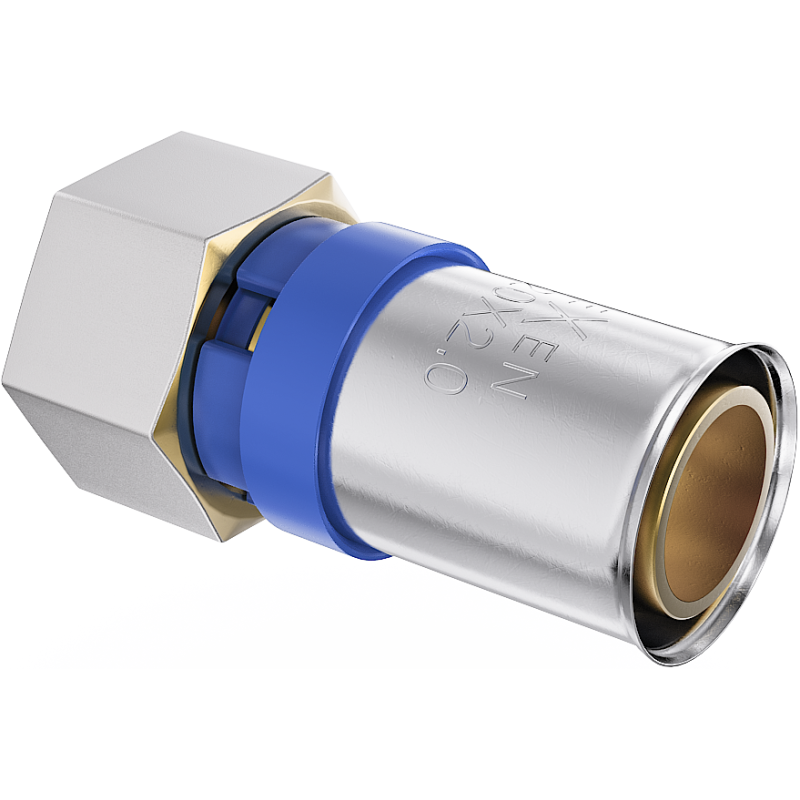

Mexen PEX-P clamp screw connection, pressed PEX 25 x 3/4 F - W97135-2534F-00

Mexen PEX-P clamp screw connection, pressed PEX 25 x 3/4 F - W97135-2534F-00

  • New
Mexen PEX-P clamp screw connection, pressed PEX 25 x 3/4 F - W97135-2534F-00
search
  • Mexen PEX-P clamp screw connection, pressed PEX 25 x 3/4 F - W97135-2534F-00
  • Mexen PEX-P clamp screw connection, pressed PEX 25 x 3/4 F - W97135-2534F-00
Mexen PEX-P clamp screw connection, pressed PEX 25 x 3/4 F - W97135-2534F-00
Mexen PEX-P clamp screw connection, pressed PEX 25 x 3/4 F - W97135-2534F-00 Mexen PEX-P clamp screw connection, pressed PEX 25 x 3/4 F - W97135-2534F-00

Mexen PEX-P clamp screw connection, pressed PEX 25 x 3/4 F - W97135-2534F-00

Technical data:

Connection diameter 1: 25 mm

Connection diameter 2: 3/4" F

Body: Nickel-plated brass

Ring: PE

Sleeve: Stainless steel 304

O-rings: NBR

For jaws type: U

Operating temperature: max 95 °C

Maximum operating pressure: 10 bar

The inspection window allows you to ensure that the pipe has been fully inserted into the fitting

Serial
Type
Półśrubunek
Średnica przyłącza 1
25 mm
Średnica przyłącza 2
3/4" GW
