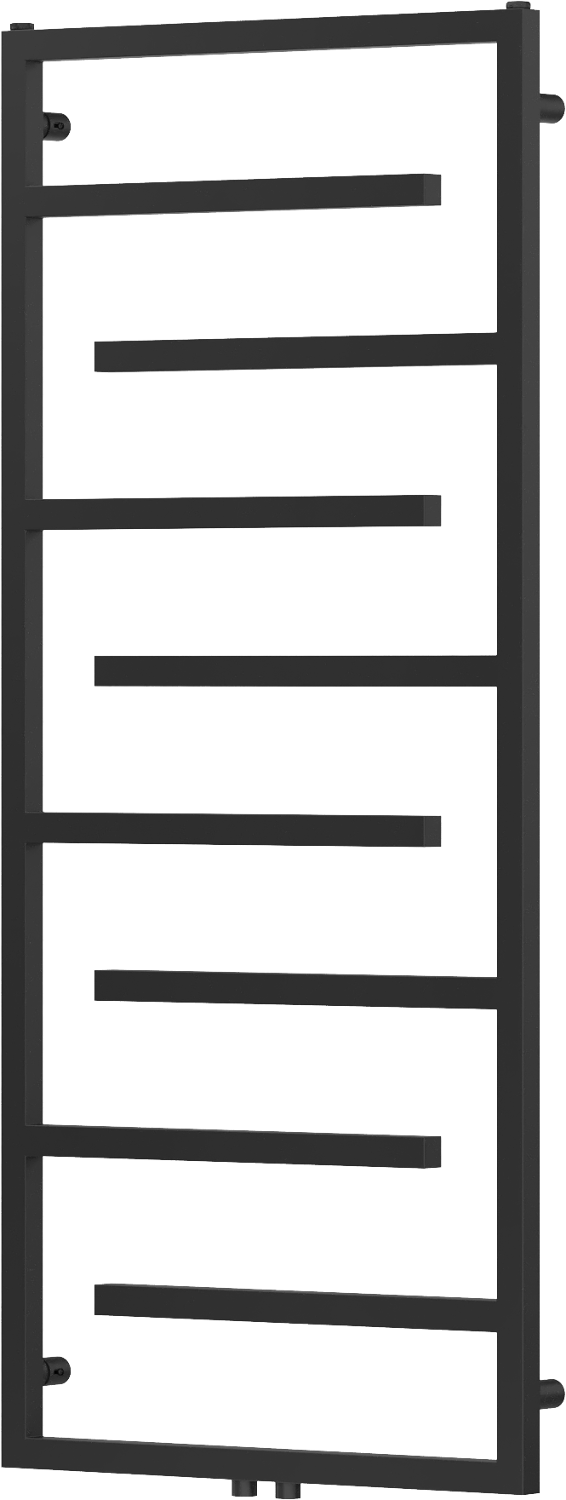

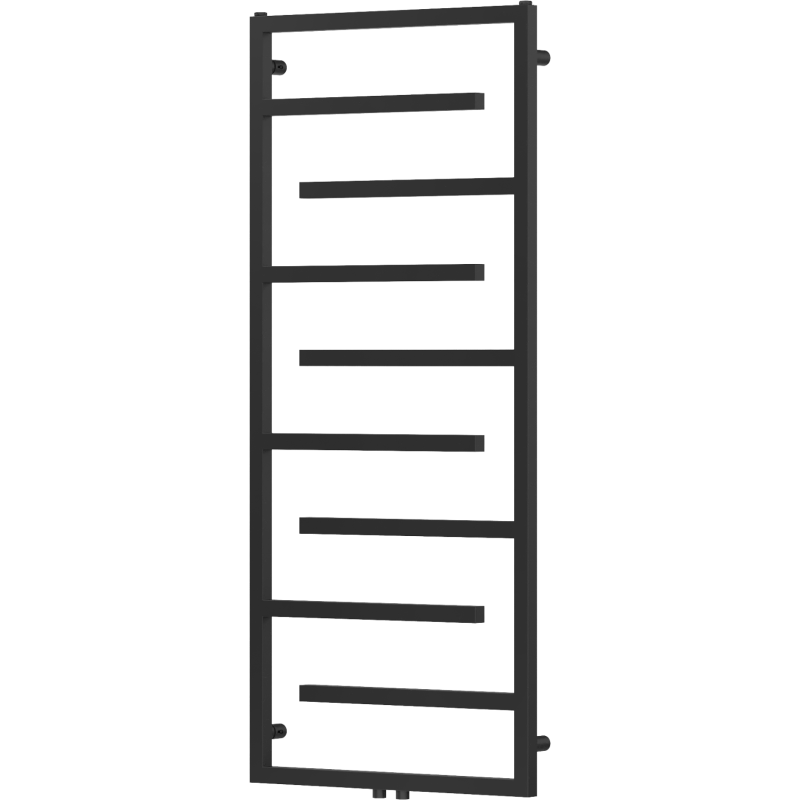

Mexen Orlando decorative radiator 1380 x 600 mm, 499 W, Black - W207-1380-600-00-70
Lowest price from the last 30 days: €217.49
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Secure payments
(edit with the Customer Reassurance module)

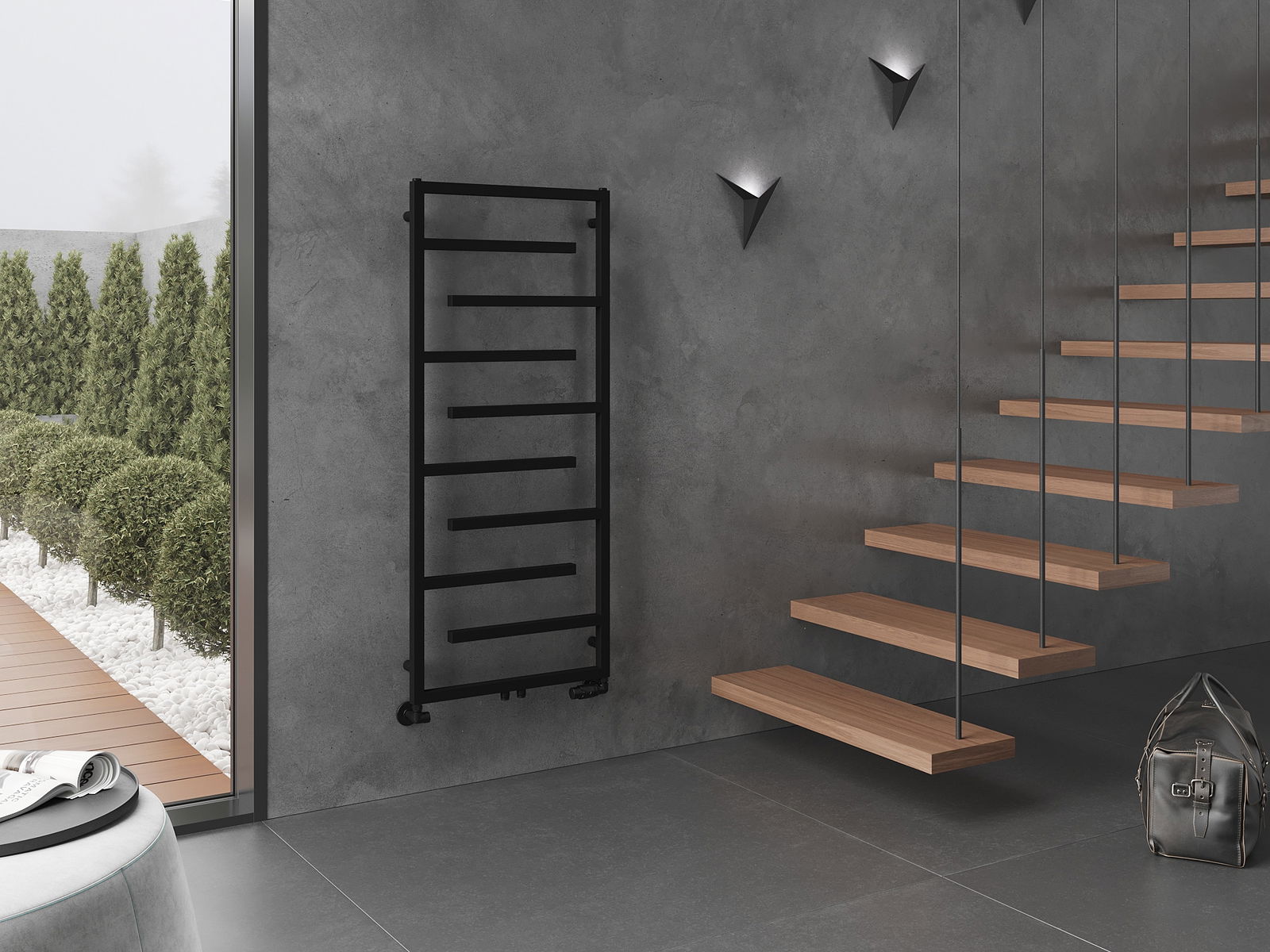

Mexen Orlando decorative radiator 1380 x 600 mm, 499 W, Black - W207-1380-600-00-70

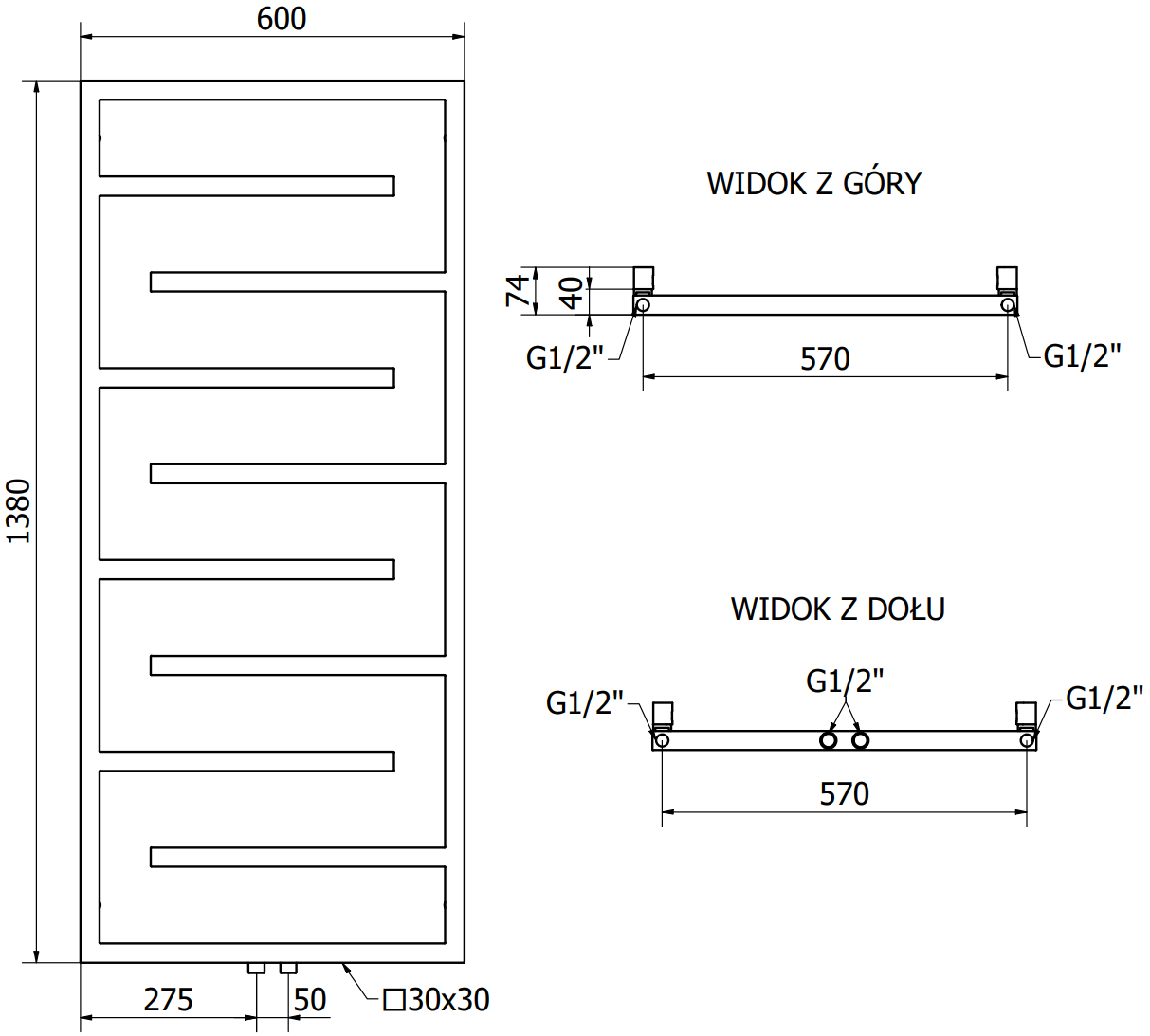

Technical specifications:
Height: 1380 mm
Width: 600 mm
Depth: 40 mm
Connection spacing:
- 57 cm (side) or 5 cm (middle)
Colour: Black RAL 9005
Material: Steel
Weight: 10 kg
Reaction to fire: A1
Operating temperature: max 95 °C
Maximum working pressure: 0,6 Mpa
Heat output:
- 75/65/20 °C - 499 W
Connections:
- 2xG ½″ middle
- 4xG ½″ top and bottom right or left
Possibility of installing a heater
High-quality, durable, corrosion-resistant coating
Includes: wall mounts, mounting kit, plugs and breather
steel
steel
The product was made of high quality low -carbon steel, which not only affects the long life of the device and corrosion resistance, but also allows you to quickly heat the room and provides users with thermal comfort.
Max. 0.6 MPa
Max. 0.6 MPa
The maximum working pressure is 0.6 MPa (6 bars). This means that the radiator can work safely and effectively in standard conditions of use. It provides optimal thermal comfort and a pleasant room temperature.
Max. 95 ° C
Max. 95 ° C
The maximum temperature achieved by the radiator during operation is 95 ° C. It allows for effective and efficient heating of the room, while ensuring the safety of users and the surface of the surrounding radiator.
Resistance to matting and corrosion
Resistance to matting and corrosion
The product is made of high quality materials resistant to matting and corrosion, thanks to which it maintains its attractive appearance and functionality for a long time, regardless of the level of humidity in the room.
10 years of warranty
10 years of warranty
The product is covered by a 10-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.
- Series
- Orlando
- Width
- 600 mm
- Height
- 1380 mm
- Type
- Decorative
- Heating Power
- 445 W
- Color
- Black
- Material
- Steel
- Strength
- Universal
- Depth
- 40 mm
- Connection spacing
- 5 cm , 57 cm
- Connection
- Side , Middle
- Orientation
- Vertical
