Mexen Fenix Air W Pneumatic Inwall Frame for WC - 6A105
(0)
Questions
(0)

Mexen Fenix Air W Pneumatic Inwall Frame for WC - 6A105

Mexen Fenix Air W Pneumatic Inwall Frame for WC - 6A105
search
  • Mexen Fenix Air W Pneumatic Inwall Frame for WC - 6A105
  • Mexen Fenix Air W Pneumatic Inwall Frame for WC - 6A105
Mexen Fenix Air W Pneumatic Inwall Frame for WC - 6A105
Mexen Fenix Air W Pneumatic Inwall Frame for WC - 6A105 Mexen Fenix Air W Pneumatic Inwall Frame for WC - 6A105
Pneumatic actuation Pneumatic actuation
Economical rinsing Economical rinsing
Adjustable brackets Adjustable brackets
Brand:
Mexen
Seria:
Fenix Air W
Ean:
5905315949738
Index:
6A105
Button included:
No
Button Installation:
From the front
Height:
111.7 cm
Mechanism:
Pneumatyczny

Mexen Fenix Air W Pneumatic Inwall Frame for WC - 6A105

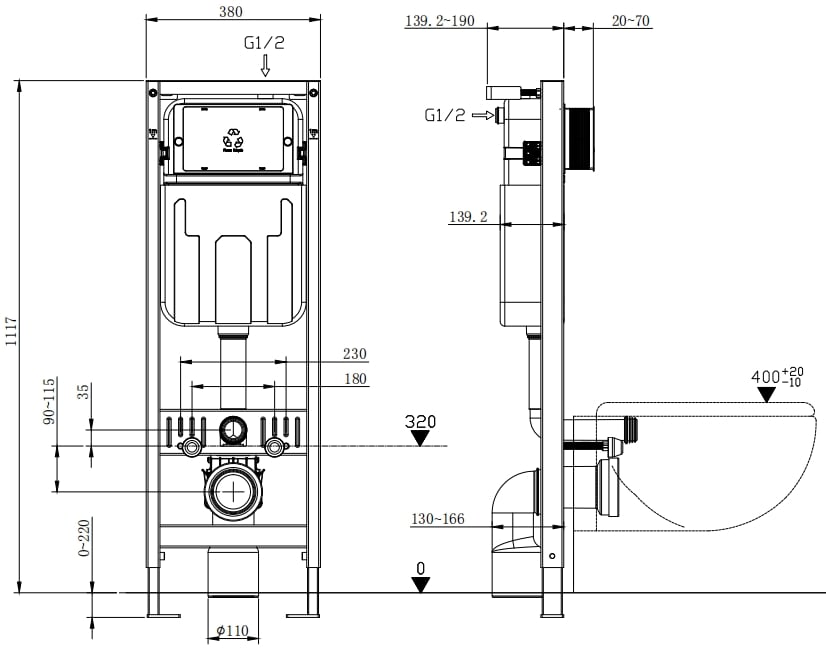

Product Specification:

Height: 111.7 cm

Width: 38 cm

Thickness: 19.2 cm

Pneumatic flushing

For installation in a full wall or gypsum board wall

For a wall-hung bowl with a hole spacing of 18 cm or 23 cm

For installation on a floor with floor layer thickness of 0-22 cm

Galvanized, adjustable legs, range 0-22 cm

Galvanized supports, adjustable in range of 139-190 mm

Tank with anti-condensation insulation

Possibility to set flushing water volume: 6/4 L, 4.5/3 L

Innovative solutions used in this product

Pneumatic actuation

Pneumatic flushing systems are advanced technologies in which the flushing process is carried out using pressurised air. The keys operate smoothly and quietly, and use is even more comfortable.

Economical rinsing

Thanks to the two -part button, we decide whether a larger or smaller amount of water is needed to rinse. It is not only economical, but also environmentally friendly.

Adjustable brackets

The ability to adjust the distance from the wall with brackets allows you to precisely match the frame to specific dimensions of the bathroom. This function is particularly useful in the case of small or limited spaces.

Adjustable legs (for bowls)

The ability to adjust the height of the frame in the range of 0-22 cm allows for a better match to various technical conditions in the bathroom. The flexible adjustment range ensures convenience of assembly and obtaining the optimal height of the frame.

Drum knee adjustment

The product has an adjustable drain knee, enabling reduction of mounting depth. This function allows you to easily adjust the product to various drain holes available in the bathroom, ensuring precise assembly.

Anti -story insulation

The tank has been secured with special anti -item insulation. Effectively reduces noise during its filling and protects against corrosion. Insulation allows you to enjoy efficiency and convenience, as well as long durability of the tank.

Strength (bidet)

The concealed frame is made of steel profiles and additionally reinforced with vertical brackets. Thanks to this, it is characterized by high strength to high loads, guaranteeing safety of use for many years.

Button from the front

The button is located at the front of the frame, facilitating access and convenient use of the flushing function. This is a practical solution especially in bathrooms, where access to the front of the frame is more comfortable.

10 years of warranty

The product is covered by a 10-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
Fenix Air W
Width
38 cm
Height
111.7 cm
Button included
No
Button Installation
From the front
Mechanism
Pneumatyczny
User manual
Download
Safety information
Download
Warranty terms
Download
Manufacturer
See
