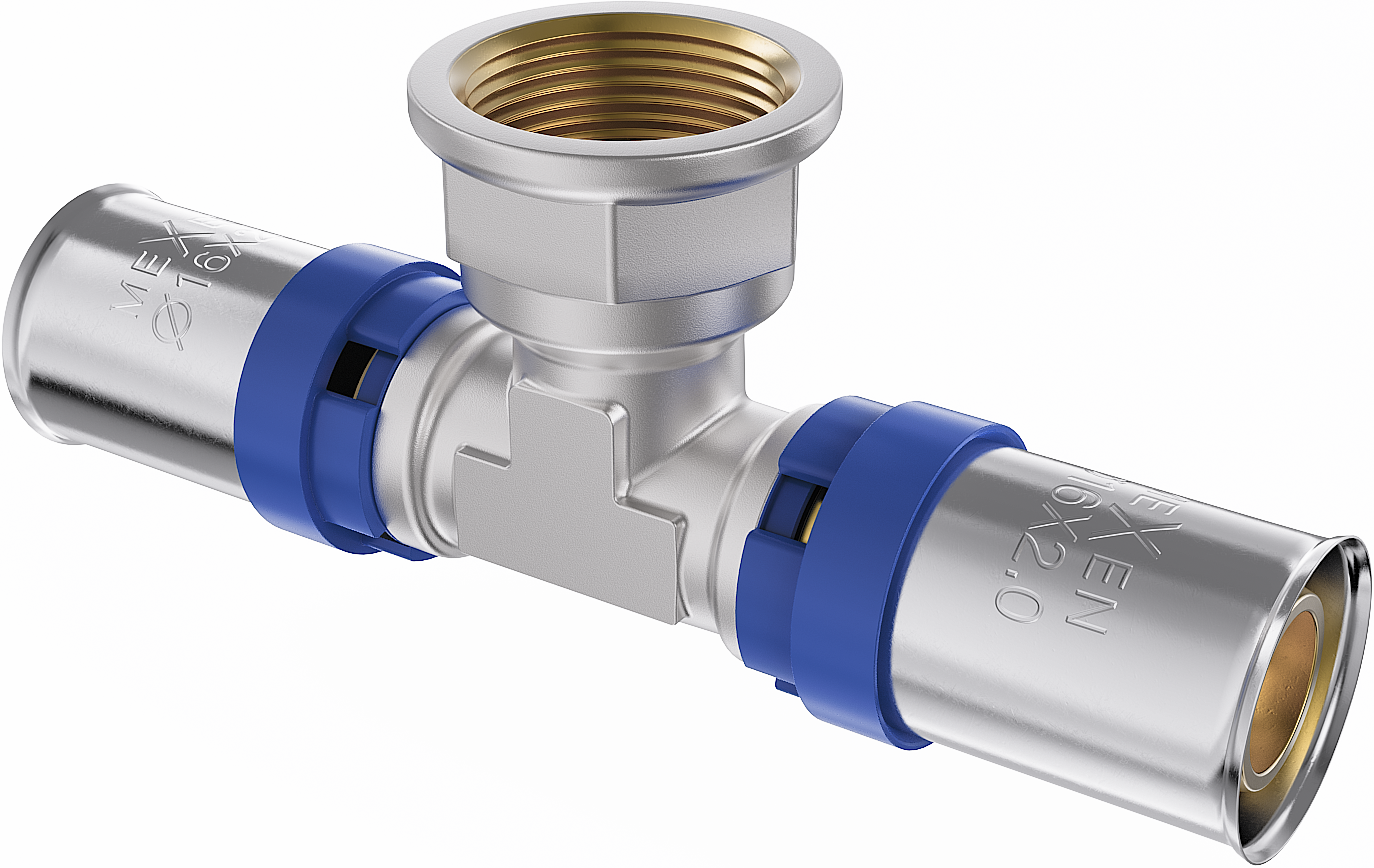

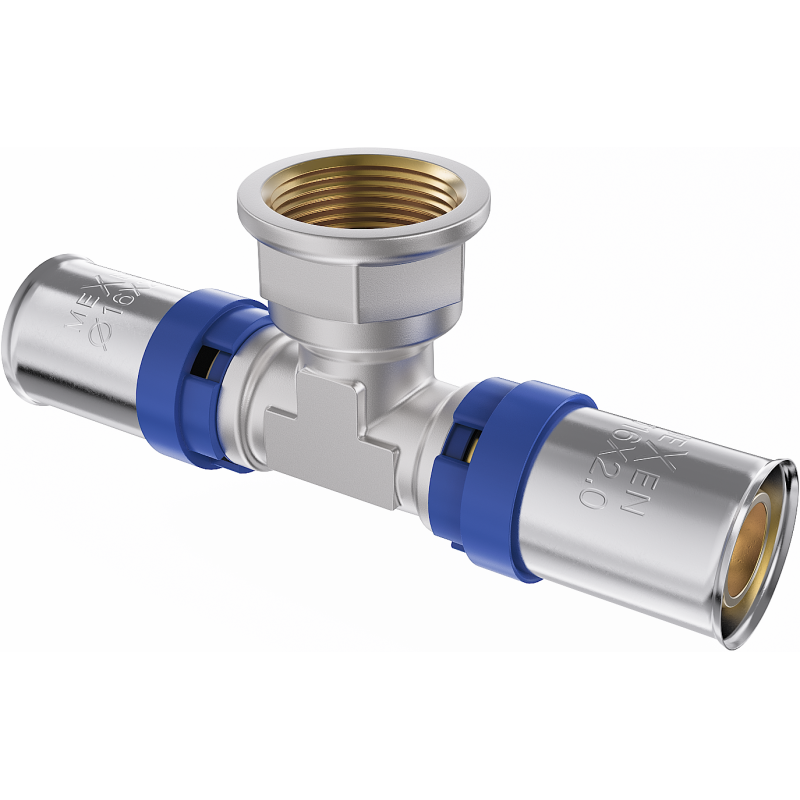

Mexen PEX-P press fitting, crimped PEX 32 x 1 GW x 32 - W97132-3210F32-00

Mexen PEX-P press fitting, crimped PEX 32 x 1 GW x 32 - W97132-3210F32-00

  • New
Mexen PEX-P press fitting, crimped PEX 32 x 1 GW x 32 - W97132-3210F32-00
search
  • Mexen PEX-P press fitting, crimped PEX 32 x 1 GW x 32 - W97132-3210F32-00
  • Mexen PEX-P press fitting, crimped PEX 32 x 1 GW x 32 - W97132-3210F32-00
Mexen PEX-P press fitting, crimped PEX 32 x 1 GW x 32 - W97132-3210F32-00
Mexen PEX-P press fitting, crimped PEX 32 x 1 GW x 32 - W97132-3210F32-00 Mexen PEX-P press fitting, crimped PEX 32 x 1 GW x 32 - W97132-3210F32-00

Mexen PEX-P press fitting, crimped PEX 32 x 1 GW x 32 - W97132-3210F32-00

Technical data:

Connection diameter 1: 32 mm

Connection diameter 2: 1" GW

Connection diameter 3: 32 mm

Body: Brass with nickel coating

Ring: PE

Sleeve: 304 stainless steel

O-rings: NBR

For jaw type: U

Operating temperature: max 95 °C

Maximum working pressure: 10 bar

A control window allows you to ensure that the pipe has been pressed to the end of the fitting

Serial
Type
Trójnik
Średnica przyłącza 1
32 mm
Średnica przyłącza 2
1" GW
Średnica przyłącza 3
32 mm
