Mexen G00 axial thermostatic set with rosette R, gold - W903-900-904-50
Mexen G00 axial thermostatic set with rosette R, gold - W903-900-904-50 Mexen G00 axial thermostatic set with rosette R, gold - W903-900-904-50 Mexen G00 axial thermostatic set with rosette R, gold - W903-900-904-50
Brand:
Mexen
Seria:
G00
Ean:
5905315236999
Index:
W903-900-904-50
Color:
Gold
Connection Diameter:
G 1/2"
Type:
Axial
Series:
G00
Color - Gold - ()

Mexen G00 axial thermostatic set with rosette R, gold - W903-900-904-50

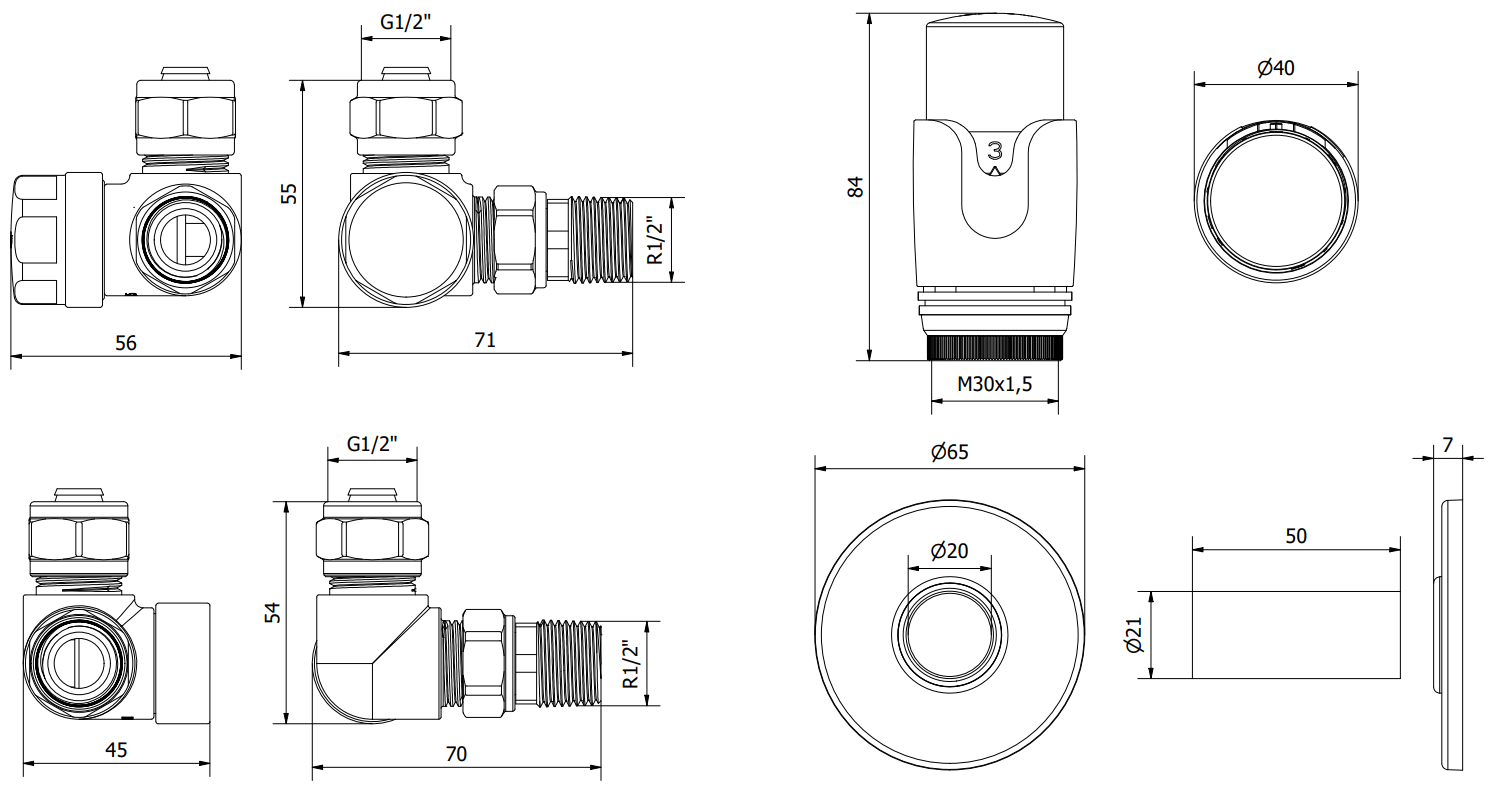

Technical data:

Valve material: Brass

Valve color: Gold

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head color: Gold

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5 °C

Rosette color: Gold

Rosette material: Stainless steel

Rosette outer diameter: 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Inner sleeve diameter: 20 mm

The rosette consists of two single rosettes and a sleeve

The set includes a radiator supply and shut-off valve

Innovative solutions used in this product

2 years warranty
