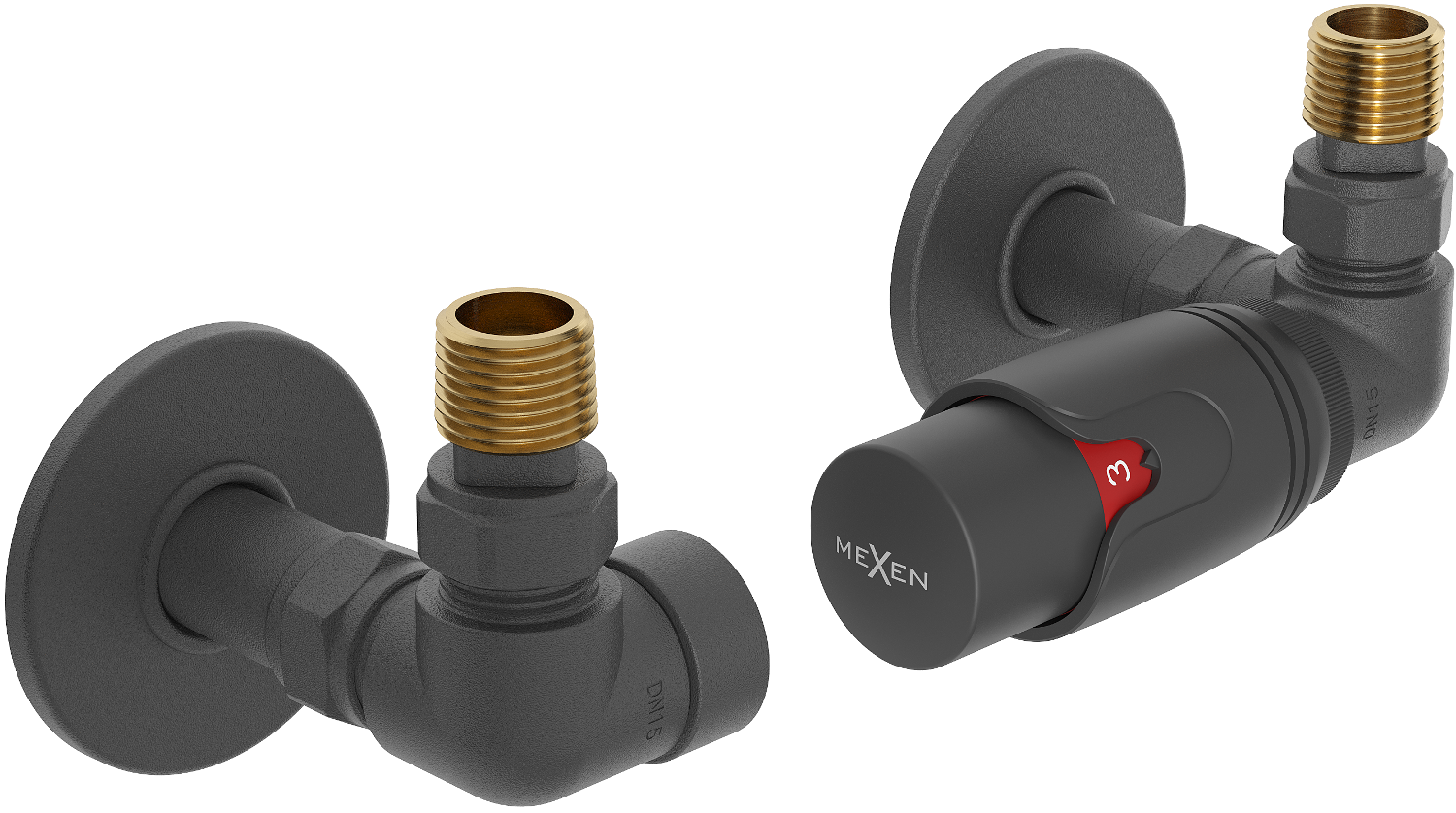

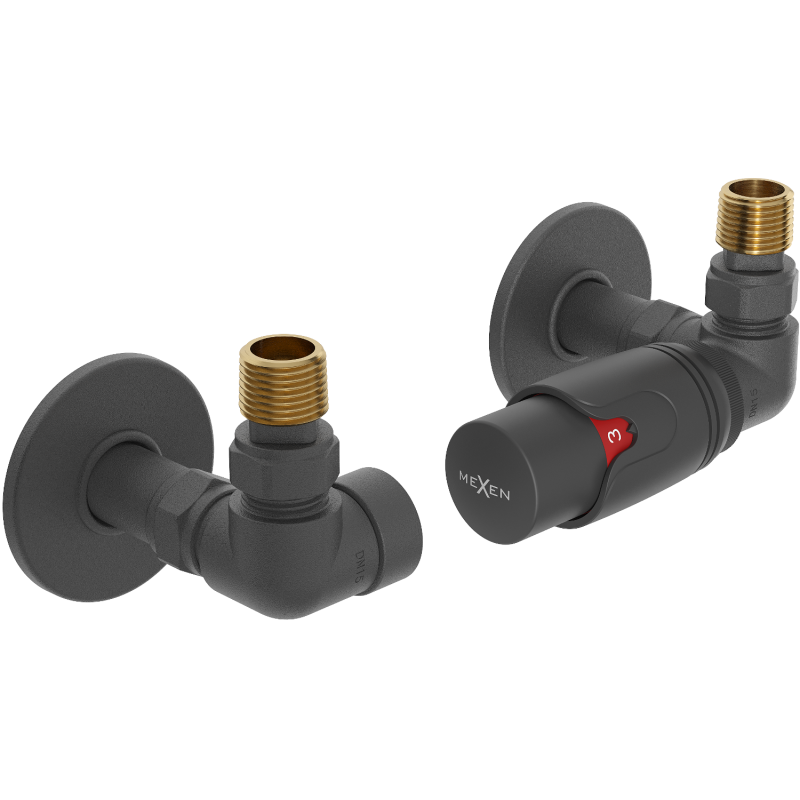

Mexen G00 axially thermostatic set with R masking, anthracite - W903-900-904-66
(1)
Questions
(0)

Mexen G00 axially thermostatic set with R masking, anthracite - W903-900-904-66

Mexen G00 axially thermostatic set with R masking, anthracite - W903-900-904-66
search
  • Mexen G00 axially thermostatic set with R masking, anthracite - W903-900-904-66
  • Mexen G00 axially thermostatic set with R masking, anthracite - W903-900-904-66
  • Mexen G00 axially thermostatic set with R masking, anthracite - W903-900-904-66
Mexen G00 axially thermostatic set with R masking, anthracite - W903-900-904-66
Mexen G00 axially thermostatic set with R masking, anthracite - W903-900-904-66 Mexen G00 axially thermostatic set with R masking, anthracite - W903-900-904-66 Mexen G00 axially thermostatic set with R masking, anthracite - W903-900-904-66
Brand:
Mexen
Seria:
G00
Ean:
5905315237002
Index:
W903-900-904-66
Color:
Anthracite
Connection Diameter:
G 1/2"
Type:
Axial
Series:
G00
Color - Anthracite - ()

Mexen G00 axially thermostatic set with R masking, anthracite - W903-900-904-66

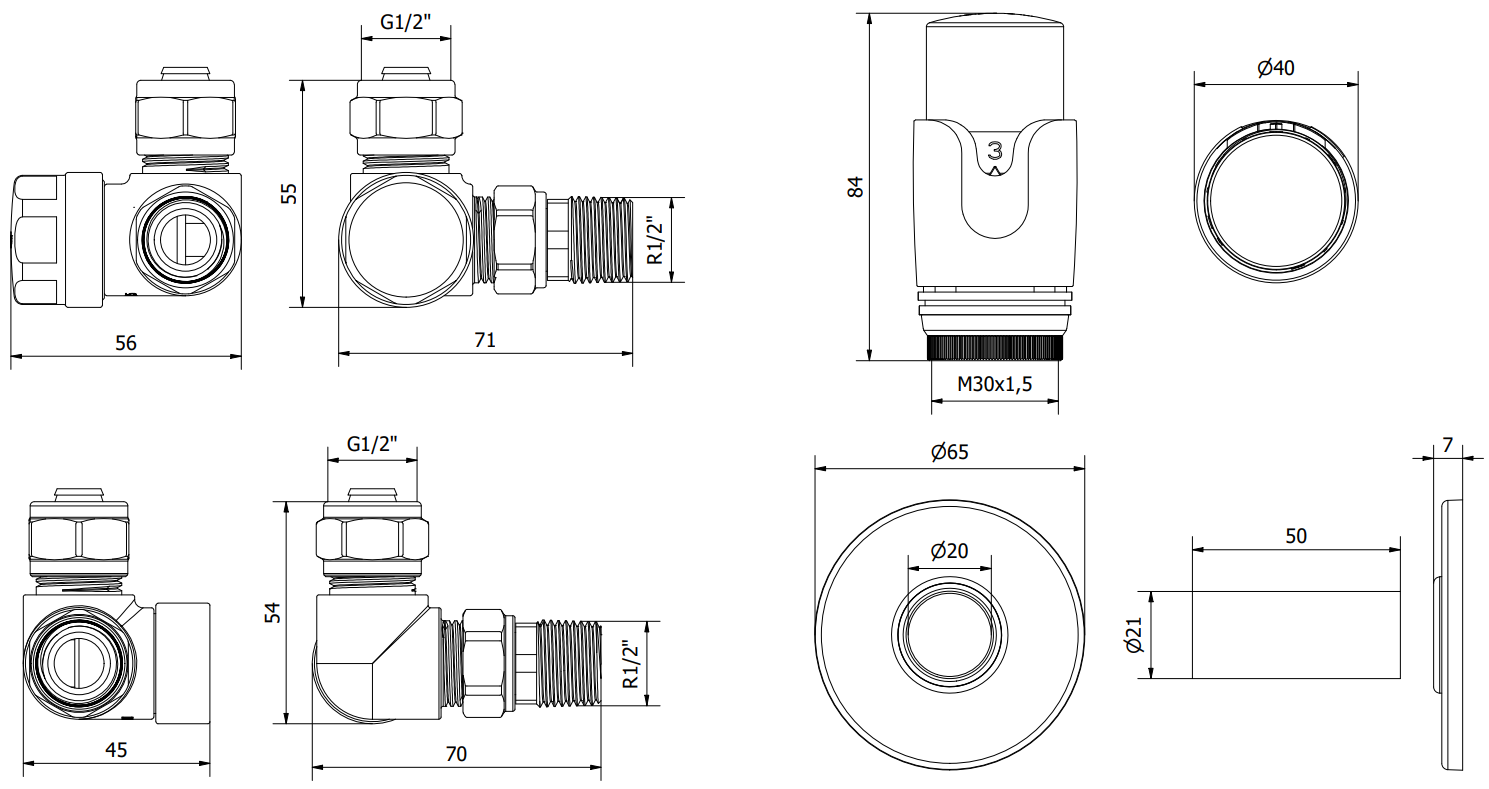

Technical data:

Valve material: Brass

Valve color: Anthracite

Valve connection diameter: G 1/2"

Operating temperature: max 120°C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head color: Anthracite

Scale regulation: 0-5

Temperature regulation range: 0-29°C

Ambient temperature: max 50°C

Anti-freeze protection 5°C

Masking color: Anthracite

Rozette material: Stainless steel

External diameter of the rozette: 65 mm

Rozette height: 7 mm

Internal hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Internal bushing diameter: 20 mm

The masking consists of two single rozettas and a bushing

The set includes a radiator supply and shut-off valve

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G00
Type
Axial
Color
Anthracite
Connection Diameter
G 1/2"
Cover
Yes
