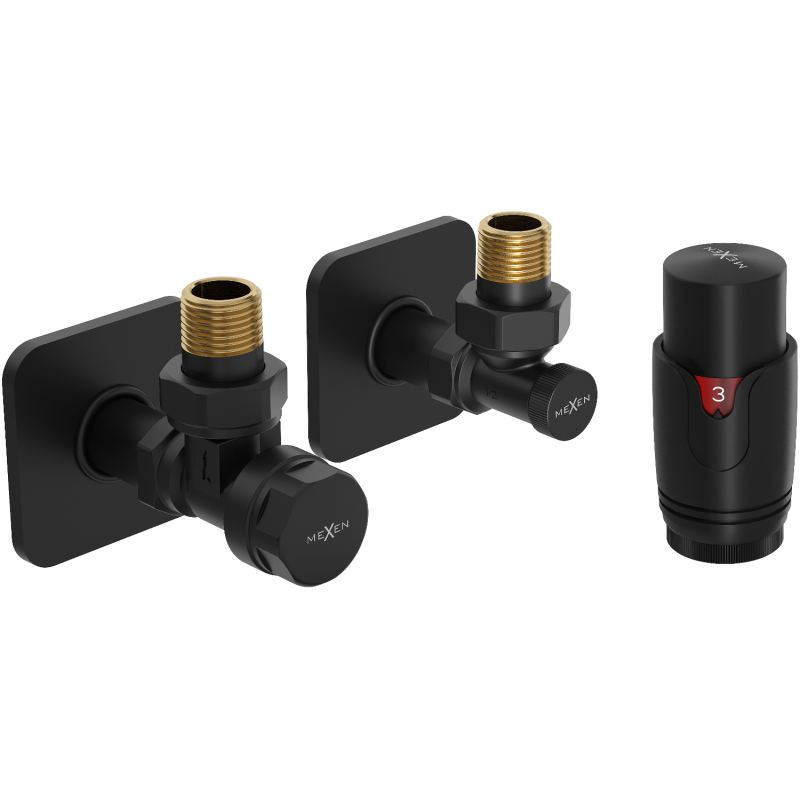

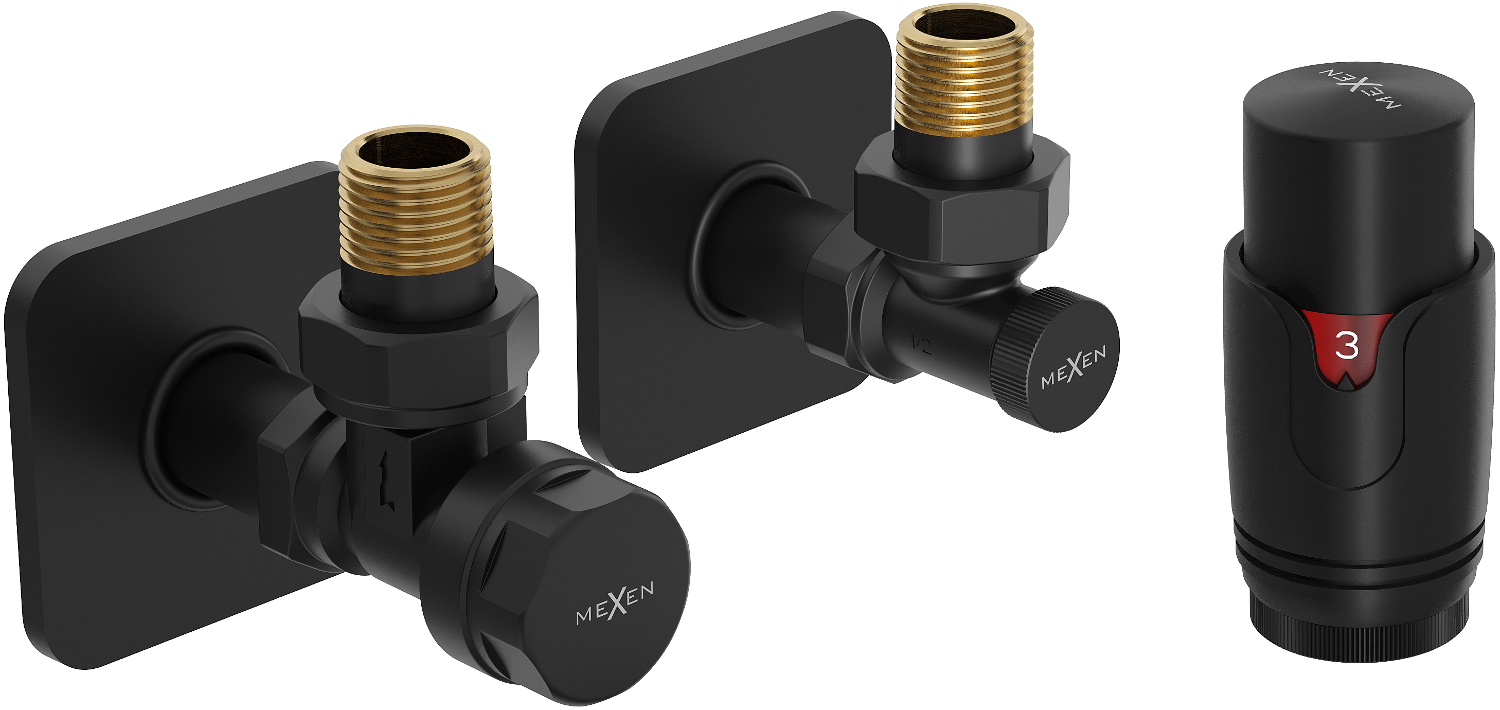

Mexen G00 angled thermostatic set with masking S, black - W901-900-909-70
(0)
Questions
(0)

Mexen G00 angled thermostatic set with masking S, black - W901-900-909-70

Mexen G00 angled thermostatic set with masking S, black - W901-900-909-70
search
  • Mexen G00 angled thermostatic set with masking S, black - W901-900-909-70
  • Mexen G00 angled thermostatic set with masking S, black - W901-900-909-70
Mexen G00 angled thermostatic set with masking S, black - W901-900-909-70
Mexen G00 angled thermostatic set with masking S, black - W901-900-909-70 Mexen G00 angled thermostatic set with masking S, black - W901-900-909-70
Brand:
Mexen
Seria:
G00
Ean:
5905315237163
Index:
W901-900-909-70
Color:
Black
Connection Diameter:
G 1/2"
Type:
Corner
Series:
G00
Color - Black - ()

Mexen G00 angled thermostatic set with masking S, black - W901-900-909-70

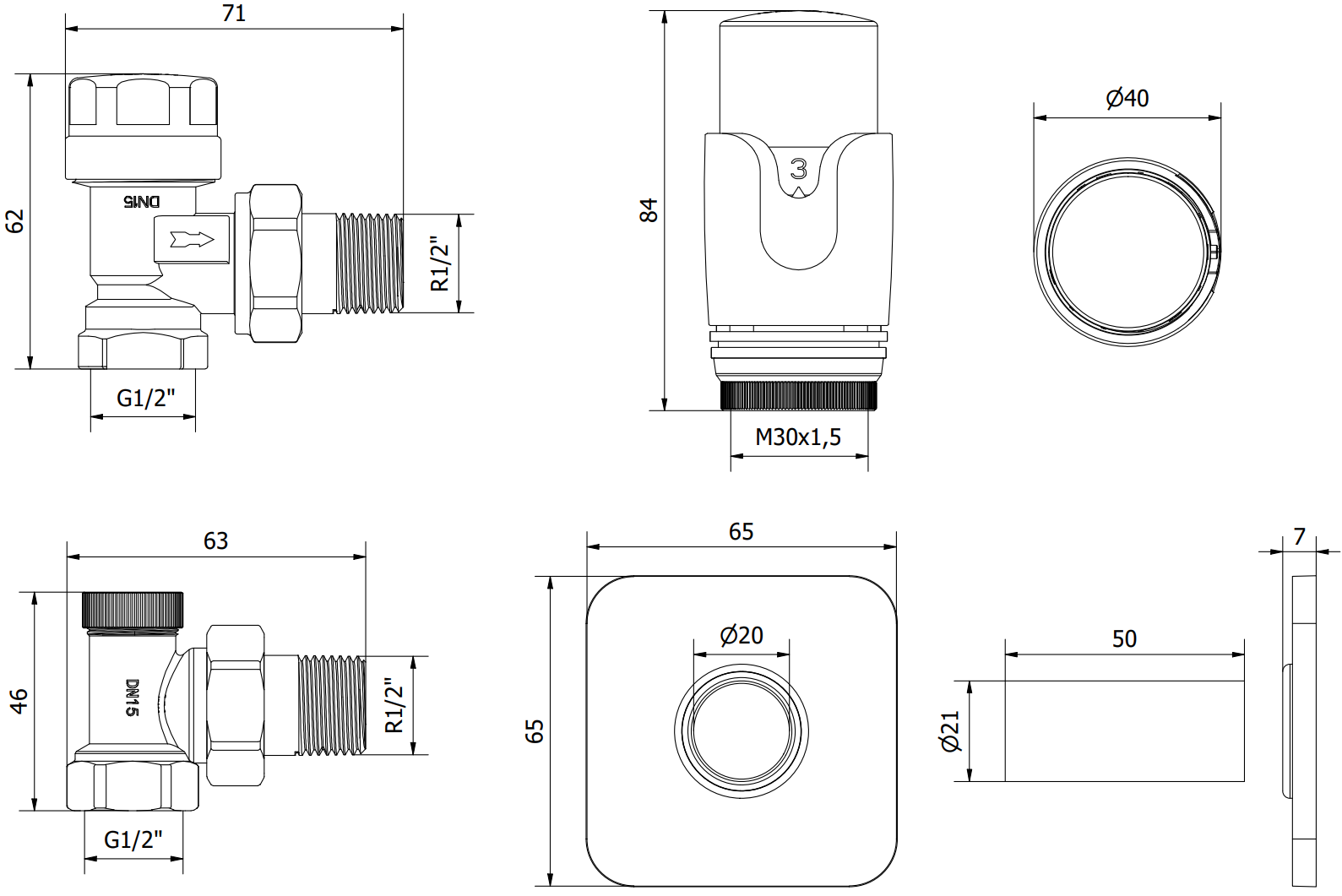

Technical data:

Valve material: Brass

Valve color: Black

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head color: Black

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Masking color: Black

Rosettes material: Stainless steel

Rosettes width: 65 mm

Rosettes height: 7 mm

Internal hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Internal sleeve diameter: 20 mm

The masking consists of two single rosettes and a sleeve

The set includes a radiator supply and cut-off valve

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G00
Type
Corner
Color
Black
Connection Diameter
G 1/2"
Cover
Yes
Warranty conditions
Download
