Brand:
Mexen
Seria:
G00
Ean:
5905315237309
Index:
W907-900-910-66
Color:
Anthracite
Connection Diameter:
G 1/2"
Type:
Corner
Series:
G00
Color - Anthracite - ()

Mexen G00 thermostatic set angled with cover S, Duplex, DN50, anthracite - W907-900-910-66

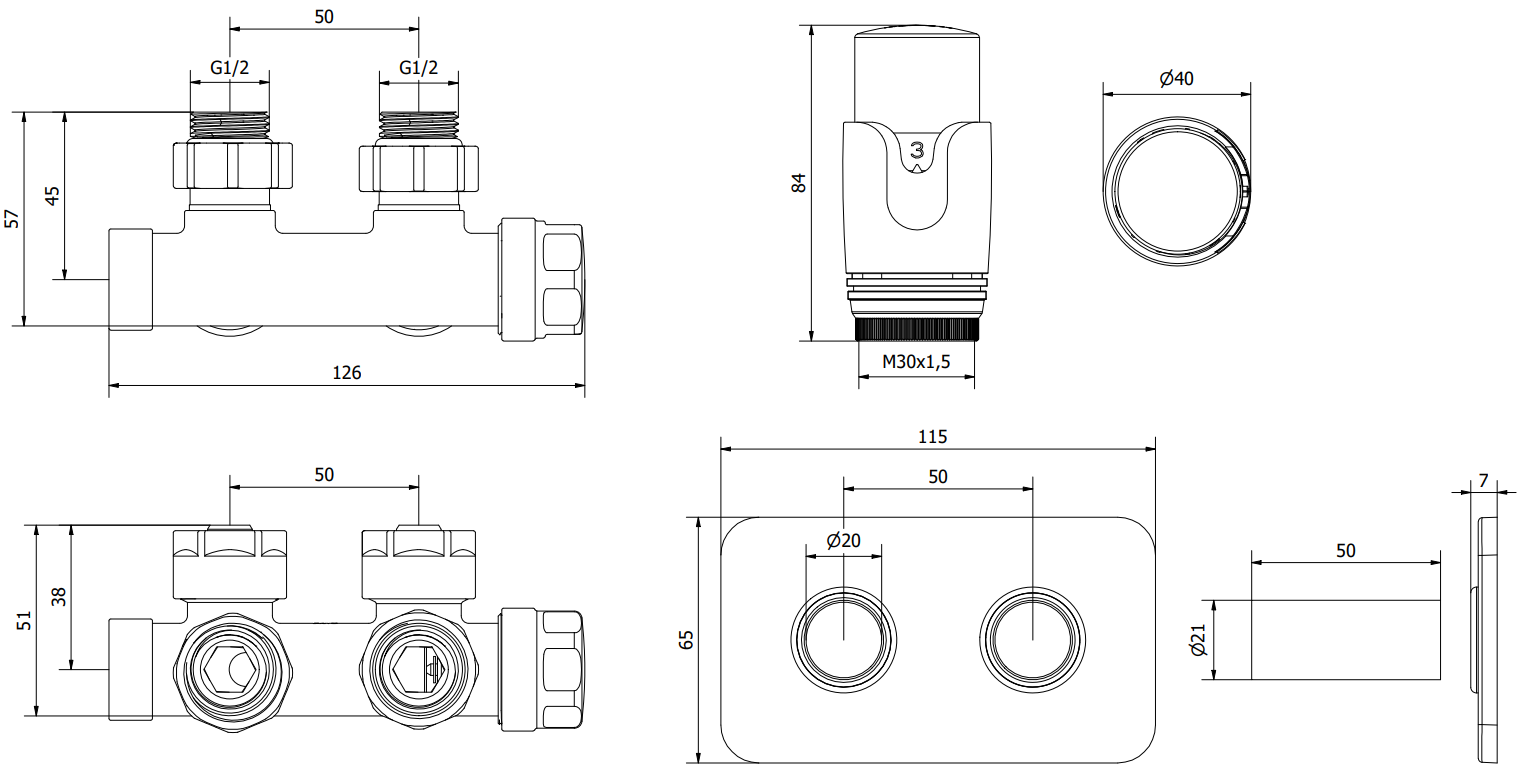

Technical data:

Valve material: Brass

Valve color: Anthracite

Connection diameter of valve: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Radiator supply and cut-off valve

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head color: Anthracite

Adjustment scale: 0-5

Temperature regulation range: 0-29 °C

Ambient temperature: max 50 °C

Freeze protection 5°C

Possibility to connect the head from left or right side of the valve

Cover color: Anthracite

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Sleeve material: Brass

Length of sleeves: 50 mm

Inner diameter of sleeves: 20 mm

Hole spacing for radiator connections: 50 mm

The cover consists of a double rosette and two sleeves

The set includes additional connectors for multi-layer pipes 16x2 mm and connectors for copper pipes 15 mm

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G00
Type
Corner
Color
Anthracite
Connection Diameter
G 1/2"
Cover
Yes
