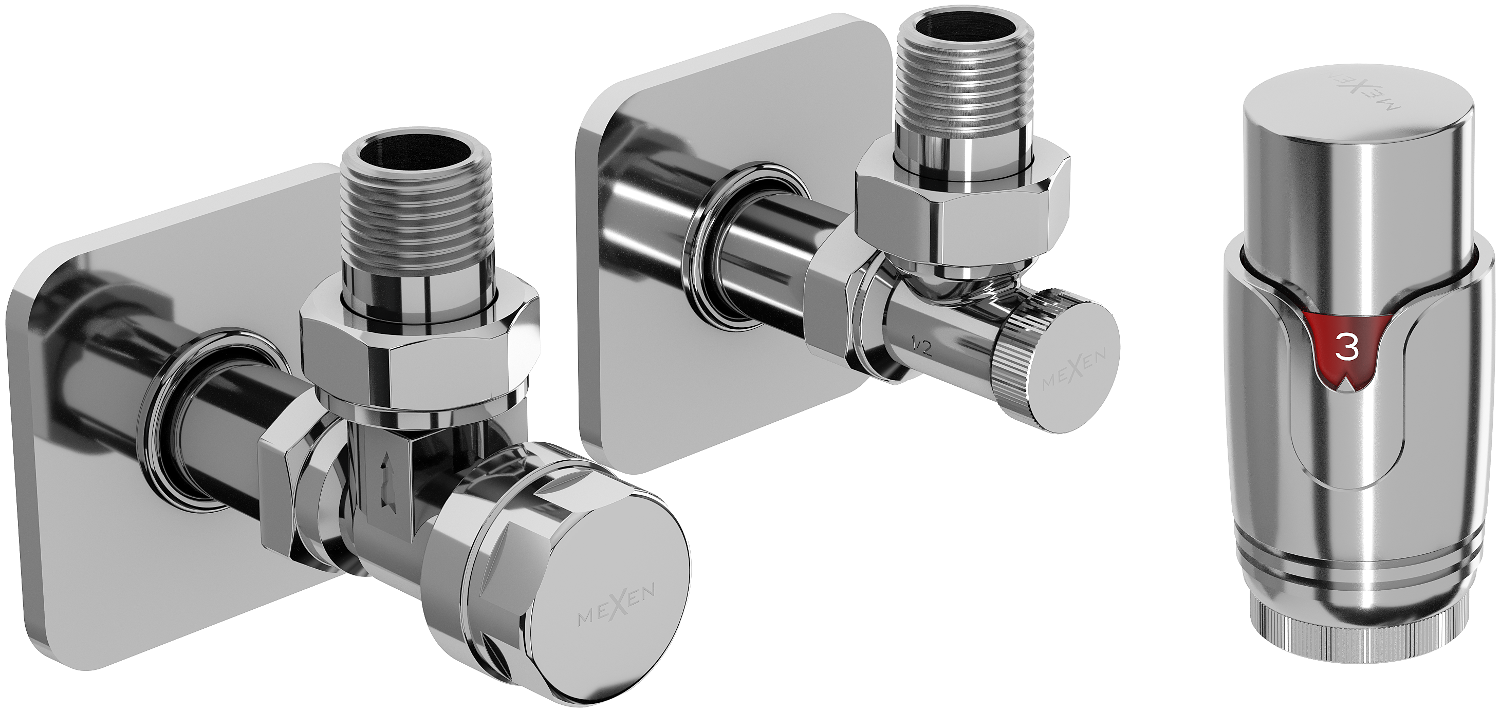

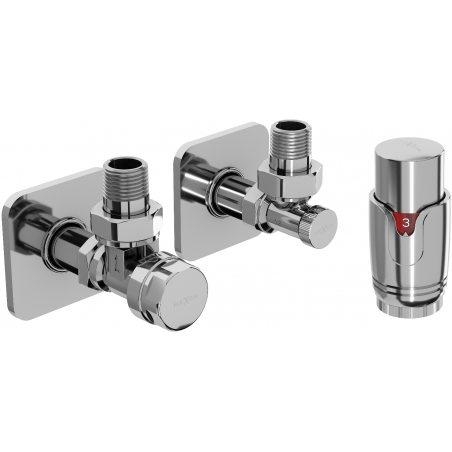

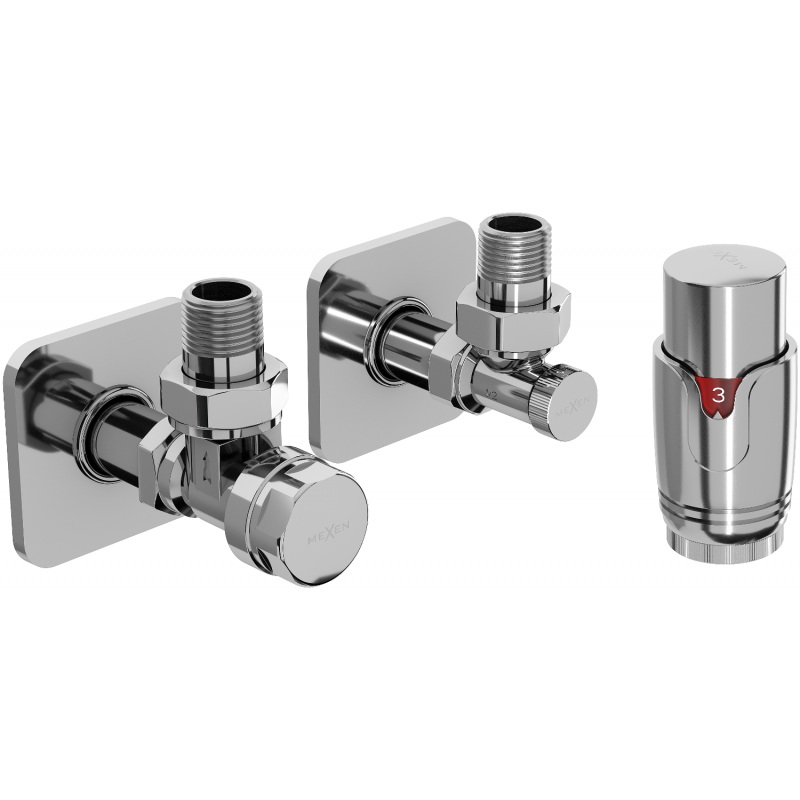

Mexen G00 Angle Thermostatic Set with Cover S, Chrome - W901-900-909-01
(0)
Questions
(0)

Mexen G00 Angle Thermostatic Set with Cover S, Chrome - W901-900-909-01

Mexen G00 Angle Thermostatic Set with Cover S, Chrome - W901-900-909-01
search
  • Mexen G00 Angle Thermostatic Set with Cover S, Chrome - W901-900-909-01
  • Mexen G00 Angle Thermostatic Set with Cover S, Chrome - W901-900-909-01
Mexen G00 Angle Thermostatic Set with Cover S, Chrome - W901-900-909-01
Mexen G00 Angle Thermostatic Set with Cover S, Chrome - W901-900-909-01 Mexen G00 Angle Thermostatic Set with Cover S, Chrome - W901-900-909-01
Brand:
Mexen
Seria:
G00
Ean:
5905315237125
Index:
W901-900-909-01
Color:
Chrome
Connection Diameter:
G 1/2"
Type:
Corner
Series:
G00
Color - Chrome - ()

Mexen G00 Angle Thermostatic Set with Cover S, Chrome - W901-900-909-01

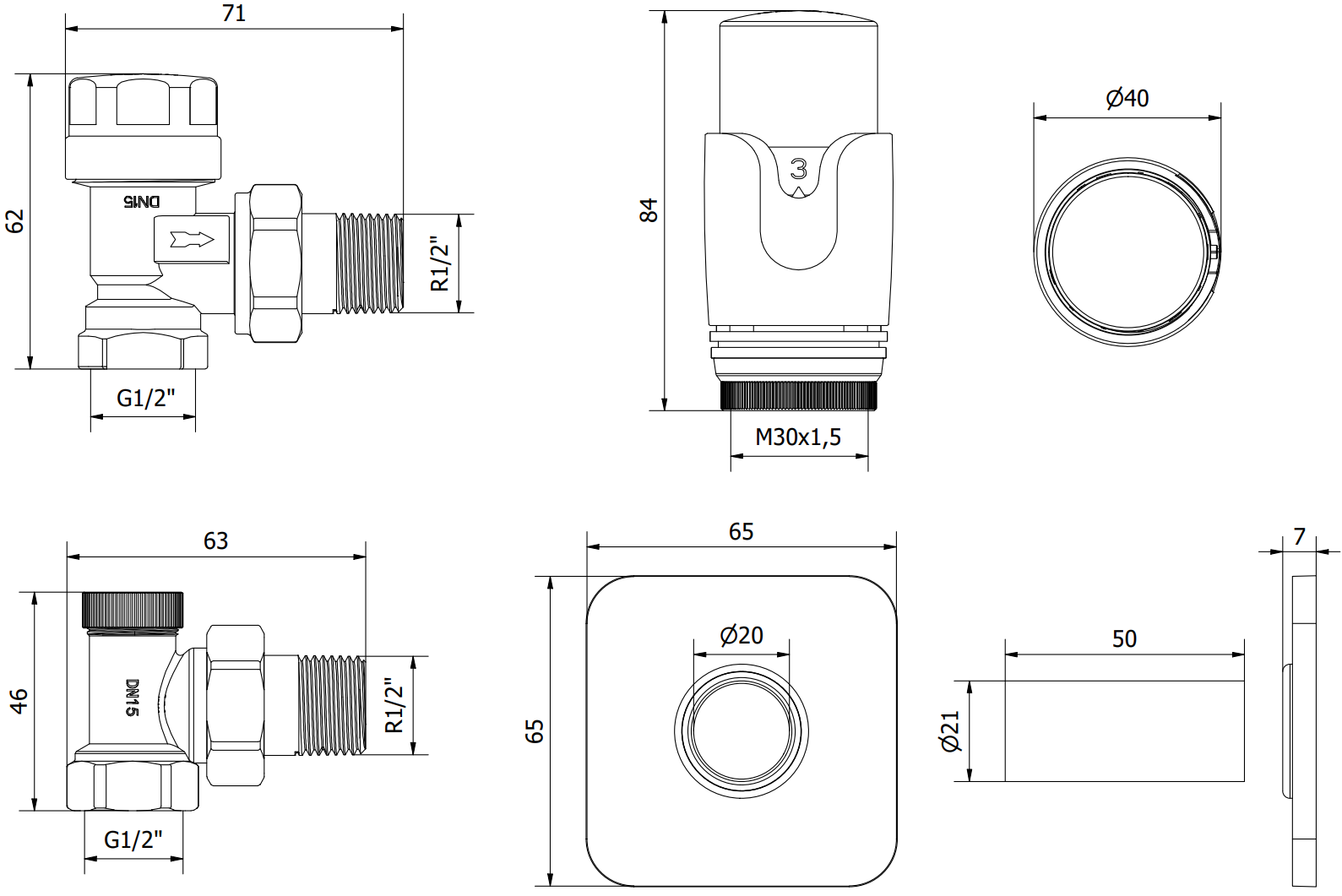

Technical data:

Material of valves: Brass

Color of valves: Chrome

Connection diameter of valves: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Thread of head: M30 x 1.5 mm

Color of head: Chrome

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Cover color: Chrome

Material of rosettes: Stainless steel

Rosette width: 65 mm

Rosette height: 7 mm

Internal hole diameter: 21 mm

Material of sleeves: Brass

Sleeve length: 50 mm

Internal sleeve diameter: 20 mm

Cover consists of two single rosettes and a sleeve

Complete with radiator supply and shut-off valve

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G00
Type
Corner
Color
Chrome
Connection Diameter
G 1/2"
Cover
Yes
