Brand:
Mexen
Seria:
G00
Ean:
5905315237057
Index:
W907-900-905-66
Color:
Anthracite
Connection Diameter:
G 1/2"
Type:
Corner
Series:
G00
Color - Anthracite - ()

Mexen G00 angled thermostatic set with cover R, Duplex, DN50, anthracite - W907-900-905-66

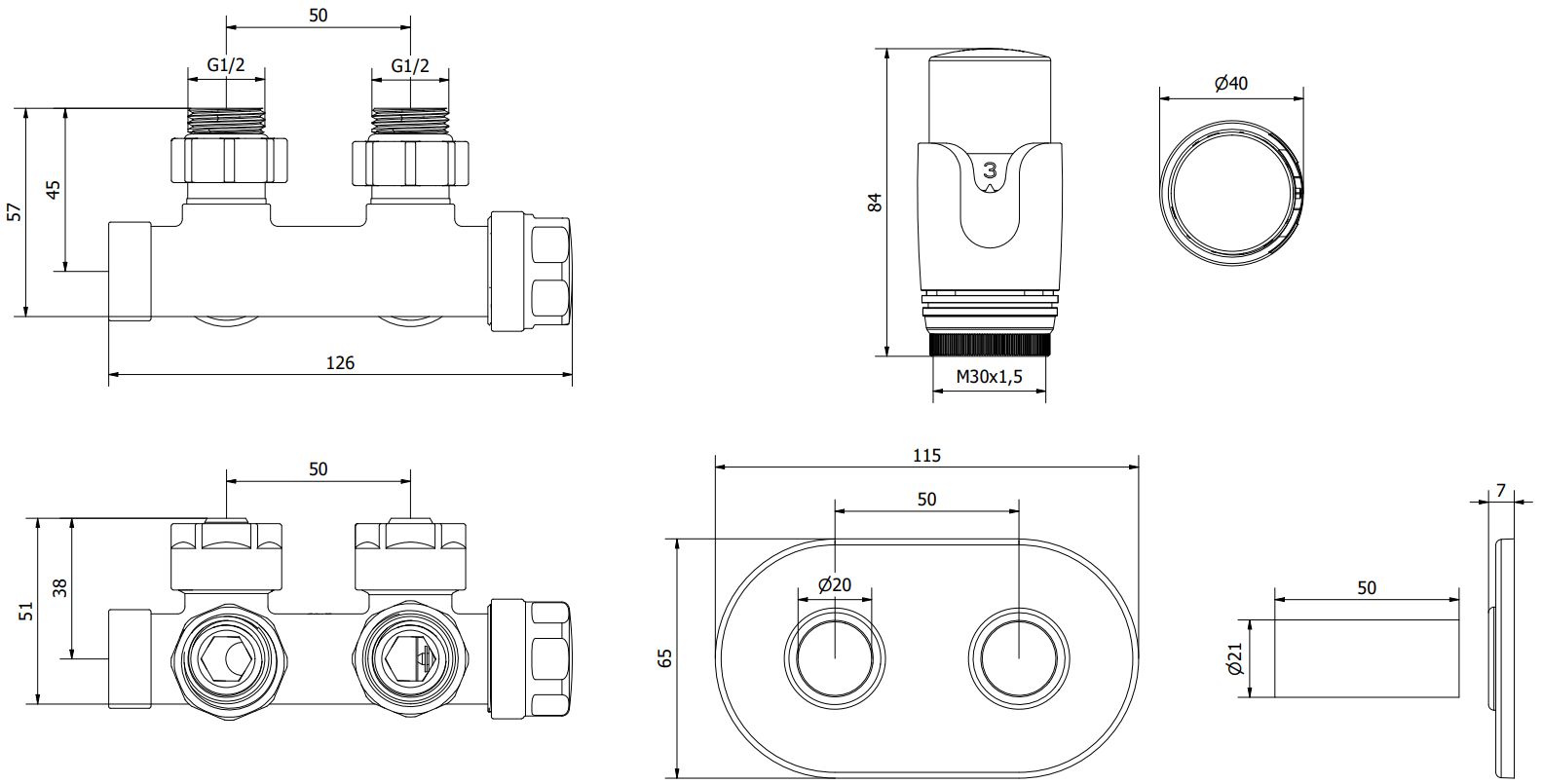

Technical data:

Valve material: Brass

Valve color: Anthracite

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Radiator supply and shut-off valve

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head color: Anthracite

Scale adjustment: 0-5

Temperature regulation range: 0-29 °C

Ambient temperature: max 50 °C

Anti-freeze protection 5°C

Possibility to connect the head on the left or right side of the valve

Cover color: Anthracite

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Ferrule material: Brass

Ferrule length: 50 mm

Inner diameter of ferrules: 20 mm

Radiator connection hole spacing: 50 mm

The cover consists of two single rosettes and a sleeve

The set includes additional connectors for 16x2 mm multilayer pipes and connectors for 15 mm copper pipes

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G00
Type
Corner
Color
Anthracite
Connection Diameter
G 1/2"
Cover
Yes
