Mexen G00 angled thermostatic set with S cover, Duplex, DN50, gold - W907-900-910-50

Mexen G00 angled thermostatic set with S cover, Duplex, DN50, gold offers exceptional quality and durability thanks to the use of brass. The product is distinguished by its elegant gold colour and the ability to operate at temperatures up to 120°C with a maximum working pressure of 10 bar. Thanks to the bottom connection with 50 mm spacing and an adjustment scale of 0-5, it provides precise temperature control in the range of 0 to 29°C. Additionally equipped with frost protection and the possibility of connecting the head from the left or right side of the valve.

Technical data:

Valve material: Brass

Valve colour: Gold

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Supply and shut-off radiator valve

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head colour: Gold

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility to connect the head from the left or right side of the valve

Cover colour: Gold

Rosette material: Stainless steel

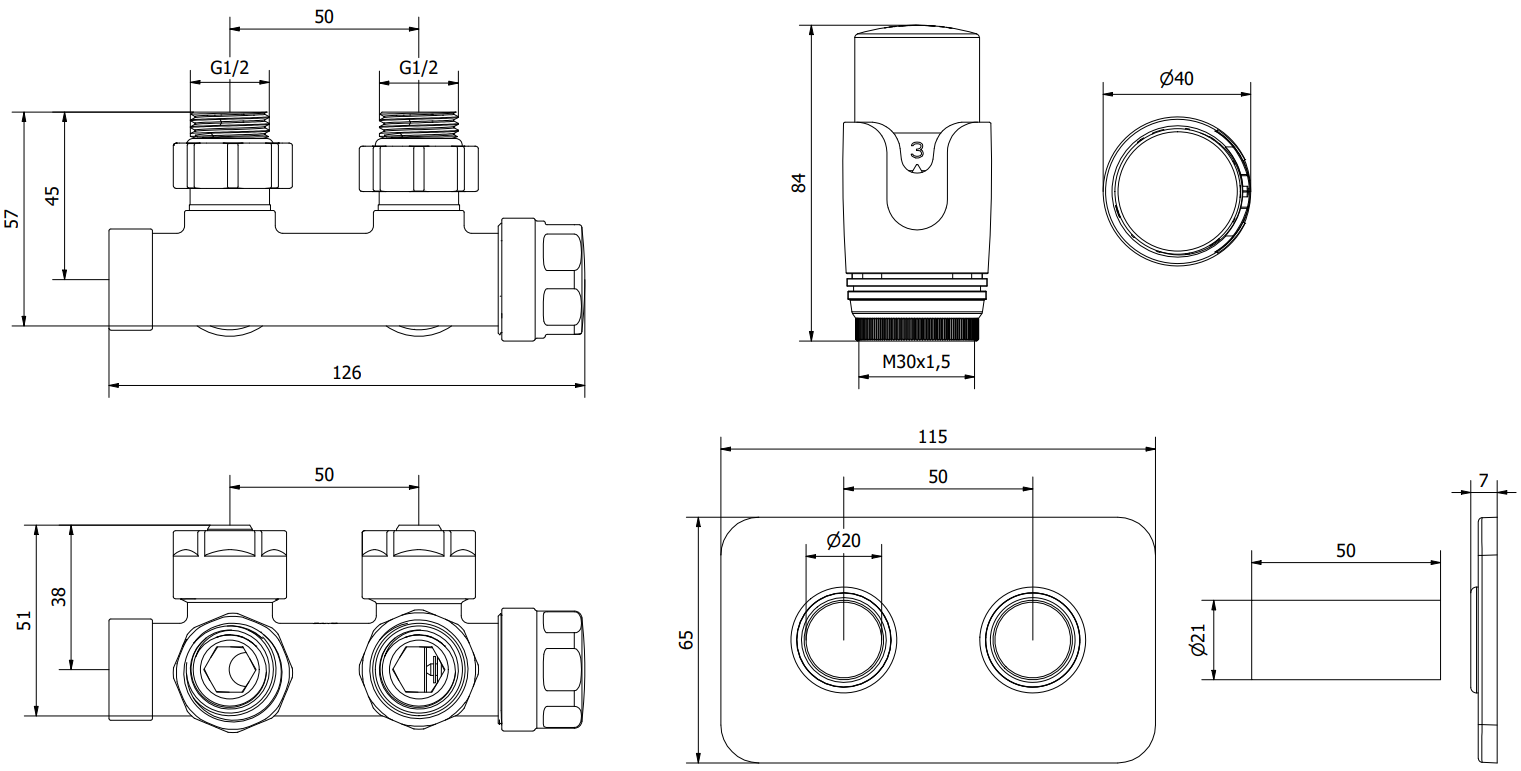

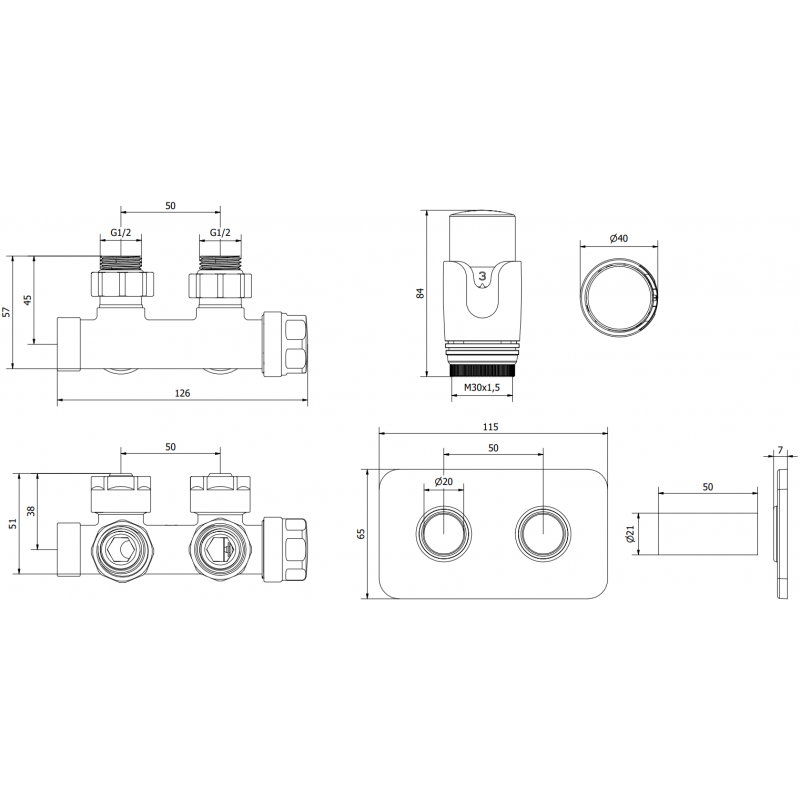

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Inner bushing diameter: 20 mm

Spacing of openings for radiator connections: 50 mm

The cover consists of a double rosette and two sleeves

Includes additional connectors for multilayer pipes 16x2 mm and connectors for copper pipes 15 mm

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the operating pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe functioning in systems with relatively high pressure.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.
