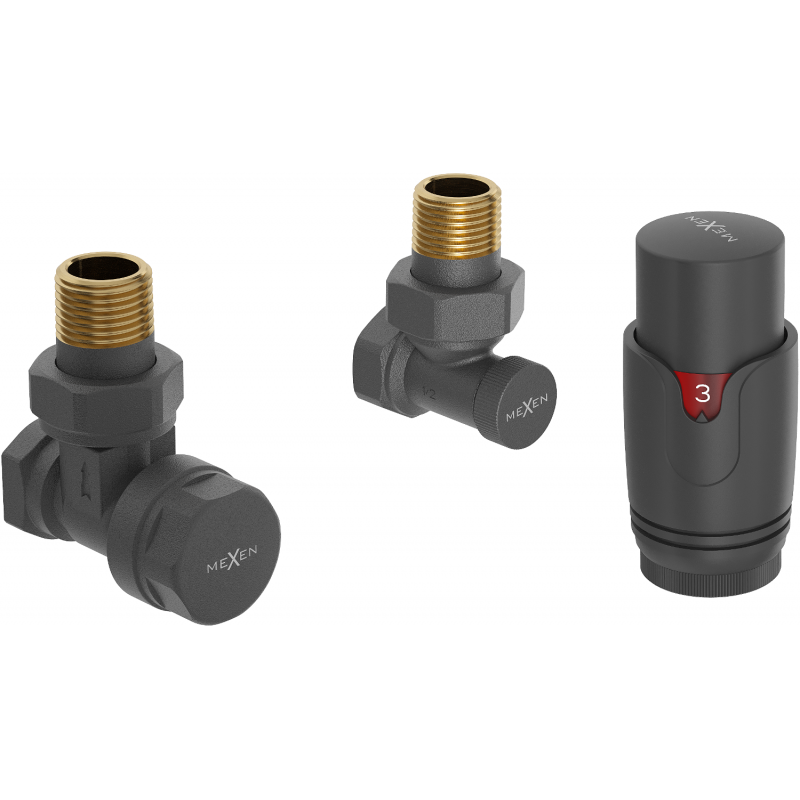

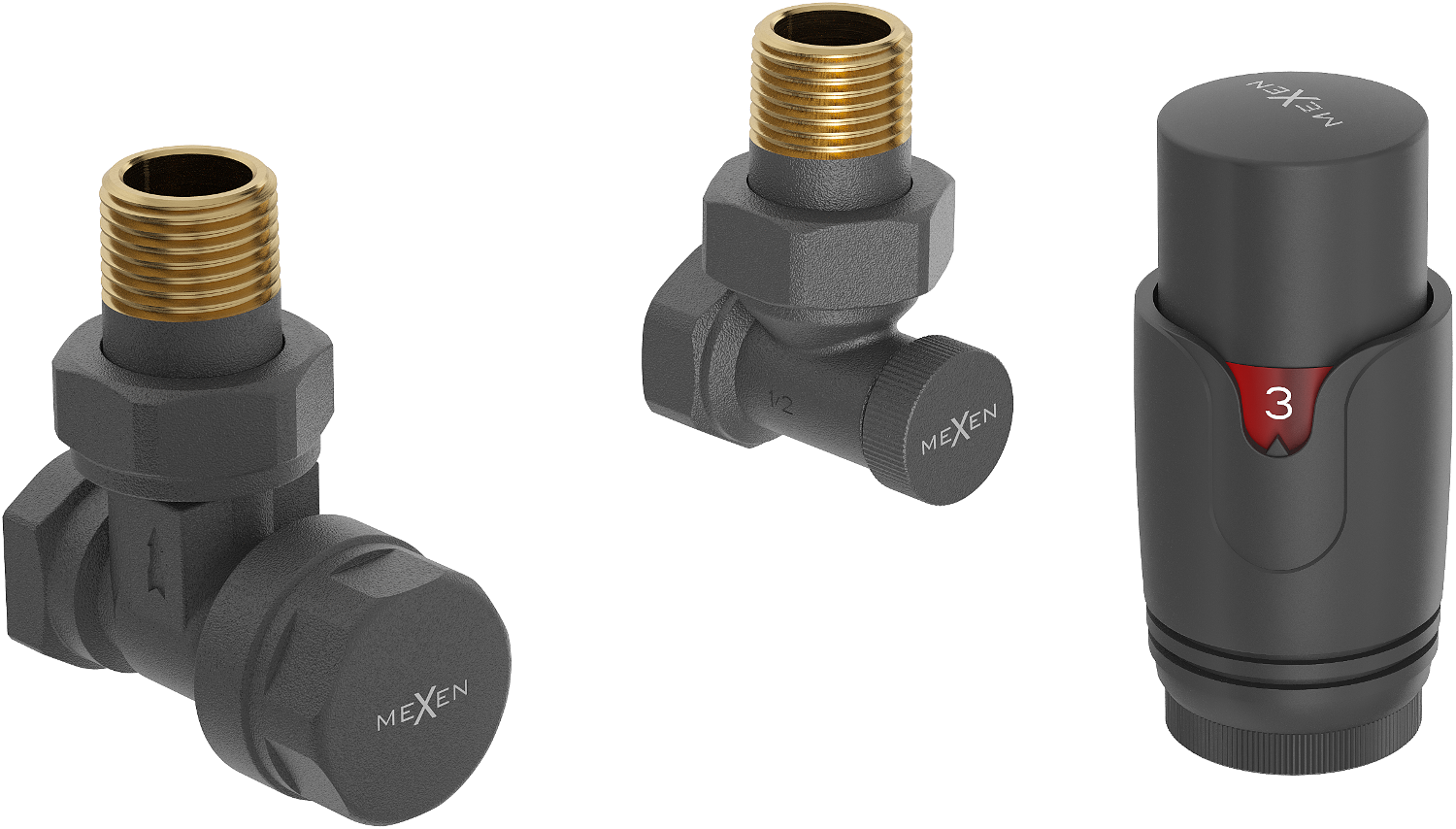

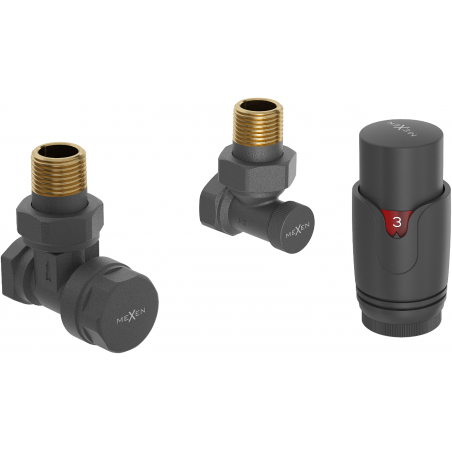

Mexen G00 Thermostatic Set Angled, Anthracite - W901-900-66

Mexen G00 angled thermostatic set, anthracite is the ideal solution for modern interiors. Made of high-quality brass, it guarantees durability and corrosion resistance. The anthracite colour adds elegance, and the G 1/2" connection diameter ensures easy installation. The set supports temperatures up to 120°C and a maximum working pressure of 10 bar. Thanks to the M30 x 1.5 mm thread and adjustment scale 0-5, you can precisely control the temperature in the range of 0-29°C, with frost protection at 5°C.

Technical specifications:

Valve material: Brass

Valve colour: Anthracite

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head colour: Anthracite

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Includes supply and shut-off radiator valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G00
Type
Angular
Colour
Anthracite
Connection diameter
G 1/2"
Cover
No
