Mexen G00 angled thermostatic set is an excellent choice for those who value functionality and style. Made of brass, in black colour, it ensures durability and an elegant look. The supply and shut-off valve with a connection diameter of G 1/2" and a maximum operating pressure of 10 bar guarantees reliability. With a temperature regulation range from 0 to 29°C and frost protection, it is ideal for various conditions. The set includes additional connectors for 16x2 mm multi-layer pipes and 15 mm copper pipes.

Technical data:

Valve material: Brass

Valve colour: Black

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Supply and shut-off radiator valve

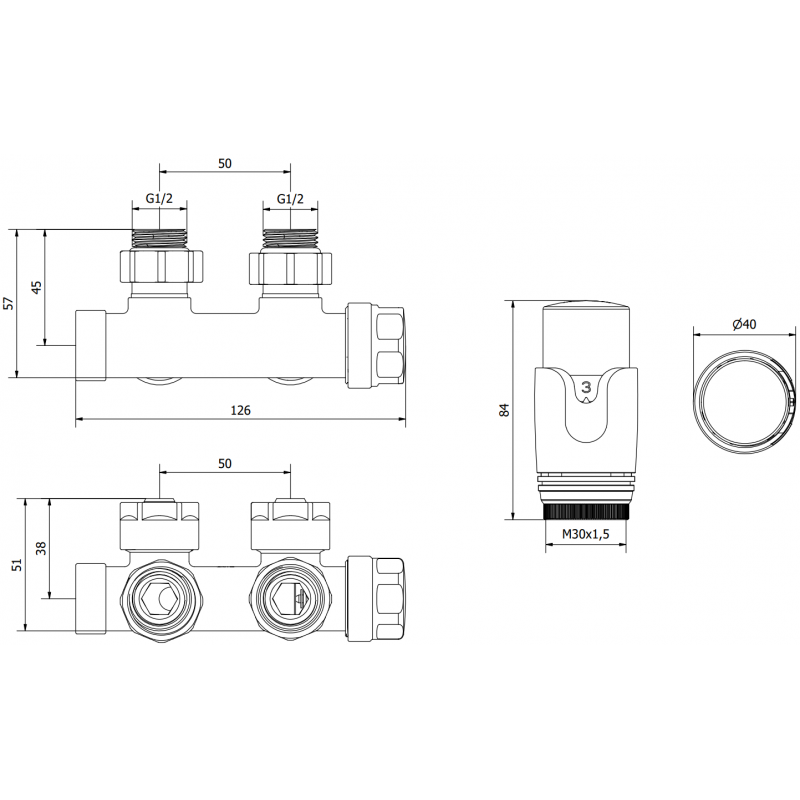

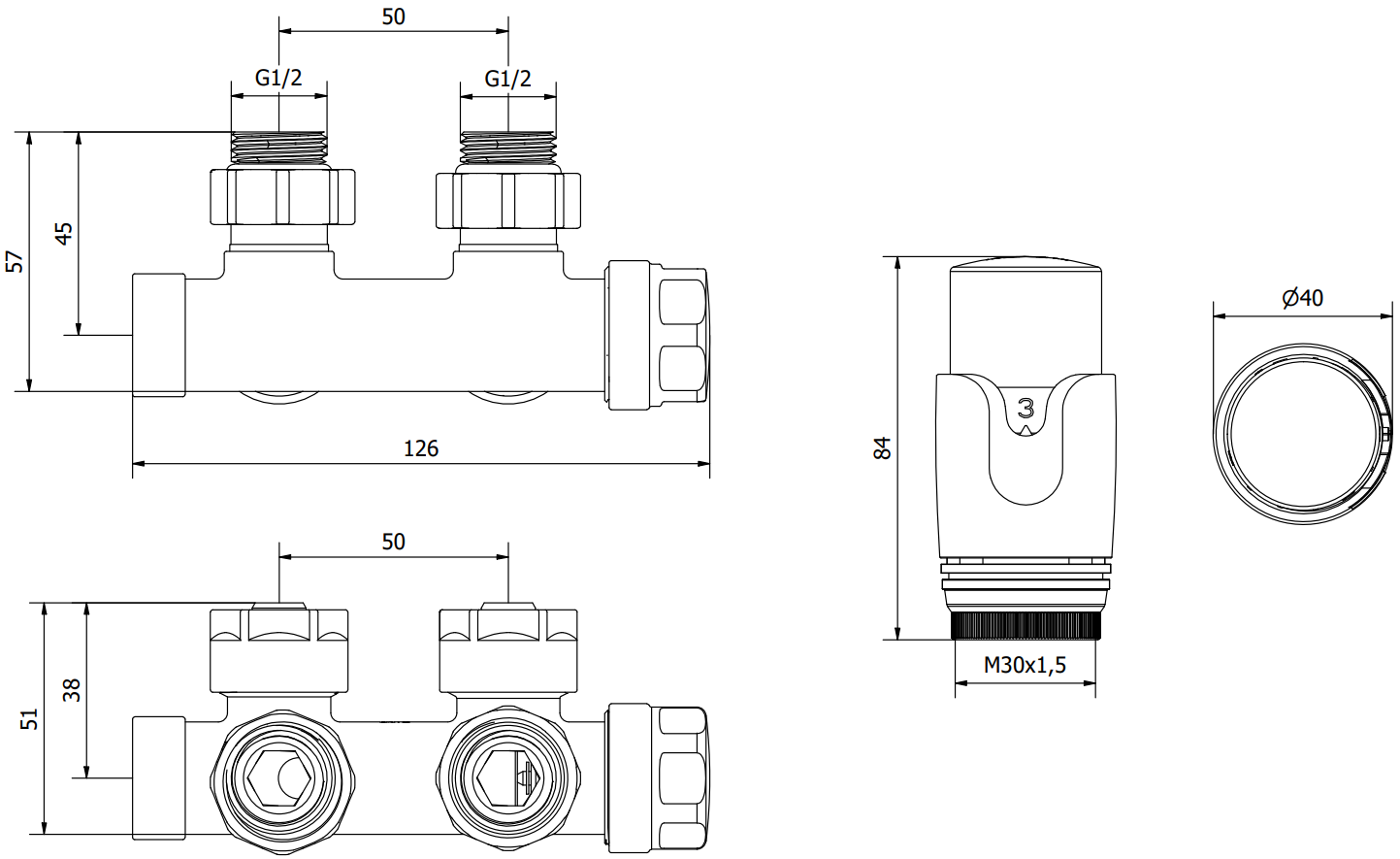

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head colour: Black

Adjustment scale: 0-5

Temperature regulation range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility to connect the head from the left or right side of the valve

Includes additional connectors for 16x2 mm multi-layer pipes and 15 mm copper pipes

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.
