Mexen G00 Corner Thermostat Set with S Cover, Duplex, DN50, Black - W907-900-910-70
(0)
Questions
(0)

Mexen G00 Corner Thermostat Set with S Cover, Duplex, DN50, Black - W907-900-910-70

Mexen G00 Corner Thermostat Set with S Cover, Duplex, DN50, Black - W907-900-910-70
search
  • Mexen G00 Corner Thermostat Set with S Cover, Duplex, DN50, Black - W907-900-910-70
  • Mexen G00 Corner Thermostat Set with S Cover, Duplex, DN50, Black - W907-900-910-70
  • Mexen G00 Corner Thermostat Set with S Cover, Duplex, DN50, Black - W907-900-910-70
Mexen G00 Corner Thermostat Set with S Cover, Duplex, DN50, Black - W907-900-910-70
Mexen G00 Corner Thermostat Set with S Cover, Duplex, DN50, Black - W907-900-910-70 Mexen G00 Corner Thermostat Set with S Cover, Duplex, DN50, Black - W907-900-910-70 Mexen G00 Corner Thermostat Set with S Cover, Duplex, DN50, Black - W907-900-910-70
Brand:
Mexen
Seria:
G00
Ean:
5905315237316
Index:
W907-900-910-70
Color:
Black
Connection Diameter:
G 1/2"
Type:
Corner
Series:
G00
Color - Black - ()

Mexen G00 Corner Thermostat Set with S Cover, Duplex, DN50, Black - W907-900-910-70

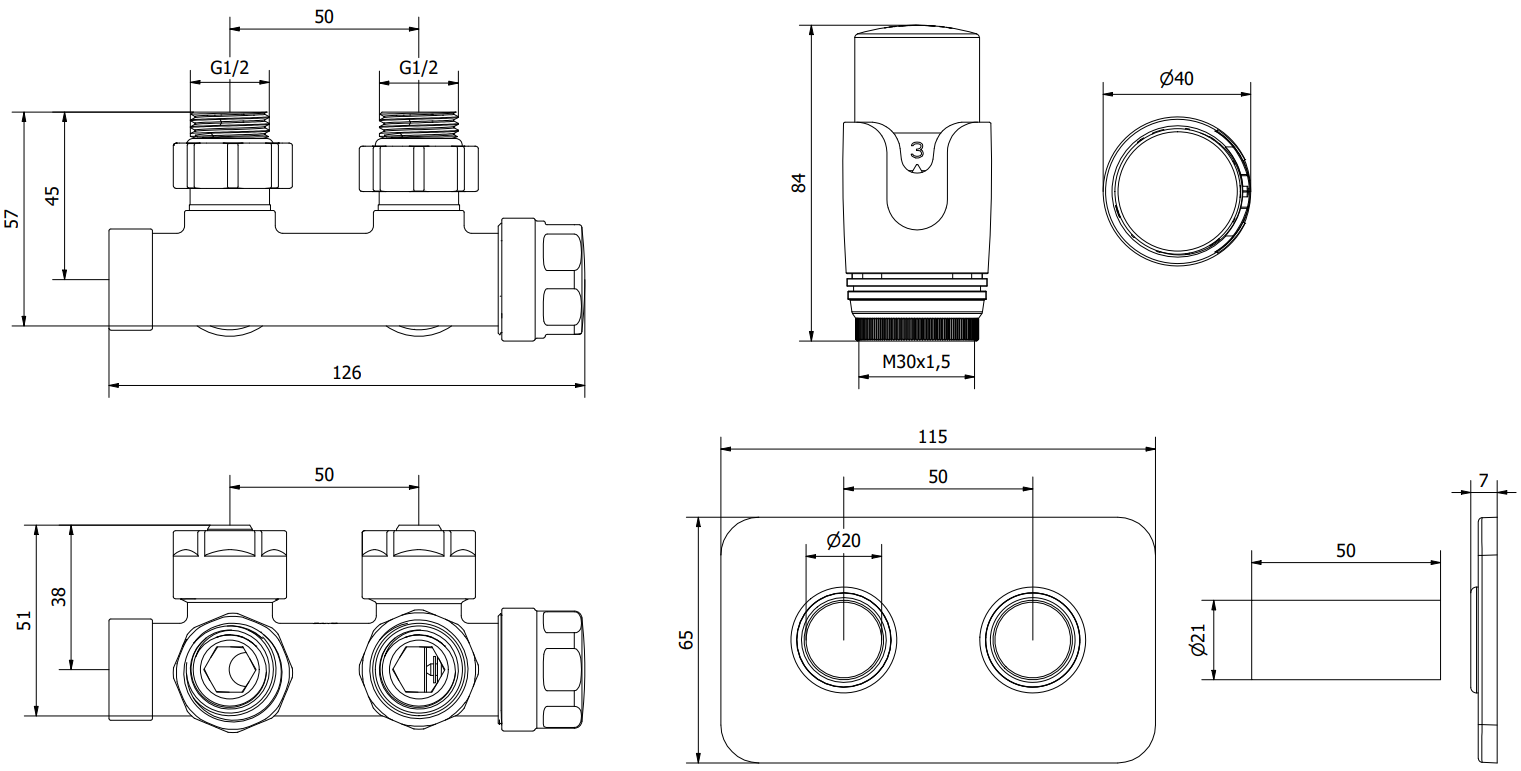

Technical data:

Valve material: Brass

Valve color: Black

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Heating valve supplying and cutting off

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head color: Anthracite

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection at 5 °C

Possibility of connecting the head from the left or right side of the valve

Cover color: Black

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner opening diameter: 21 mm

Socket material: Brass

Socket length: 50 mm

Inner diameter of the socket: 20 mm

Spacing of holes for radiator connections: 50 mm

The cover consists of a double rosette and two sleeves

Includes additional fittings for multi-layer pipes 16x2 mm and fittings for copper pipes 15 mm

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G00
Type
Corner
Color
Black
Connection Diameter
G 1/2"
Cover
Yes
