Mexen G00 angled thermostatic set with rosette S, Duplex, DN50, white - W907-900-910-20
(0)
Questions
(0)

Mexen G00 angled thermostatic set with rosette S, Duplex, DN50, white - W907-900-910-20

Mexen G00 angled thermostatic set with rosette S, Duplex, DN50, white - W907-900-910-20
search
  • Mexen G00 angled thermostatic set with rosette S, Duplex, DN50, white - W907-900-910-20
  • Mexen G00 angled thermostatic set with rosette S, Duplex, DN50, white - W907-900-910-20
  • Mexen G00 angled thermostatic set with rosette S, Duplex, DN50, white - W907-900-910-20
Mexen G00 angled thermostatic set with rosette S, Duplex, DN50, white - W907-900-910-20
Mexen G00 angled thermostatic set with rosette S, Duplex, DN50, white - W907-900-910-20 Mexen G00 angled thermostatic set with rosette S, Duplex, DN50, white - W907-900-910-20 Mexen G00 angled thermostatic set with rosette S, Duplex, DN50, white - W907-900-910-20
Brand:
Mexen
Seria:
G00
Ean:
5905315237286
Index:
W907-900-910-20
Color:
White
Connection Diameter:
G 1/2"
Type:
Corner
Series:
G00
Color - White - ()

Mexen G00 angled thermostatic set with rosette S, Duplex, DN50, white - W907-900-910-20

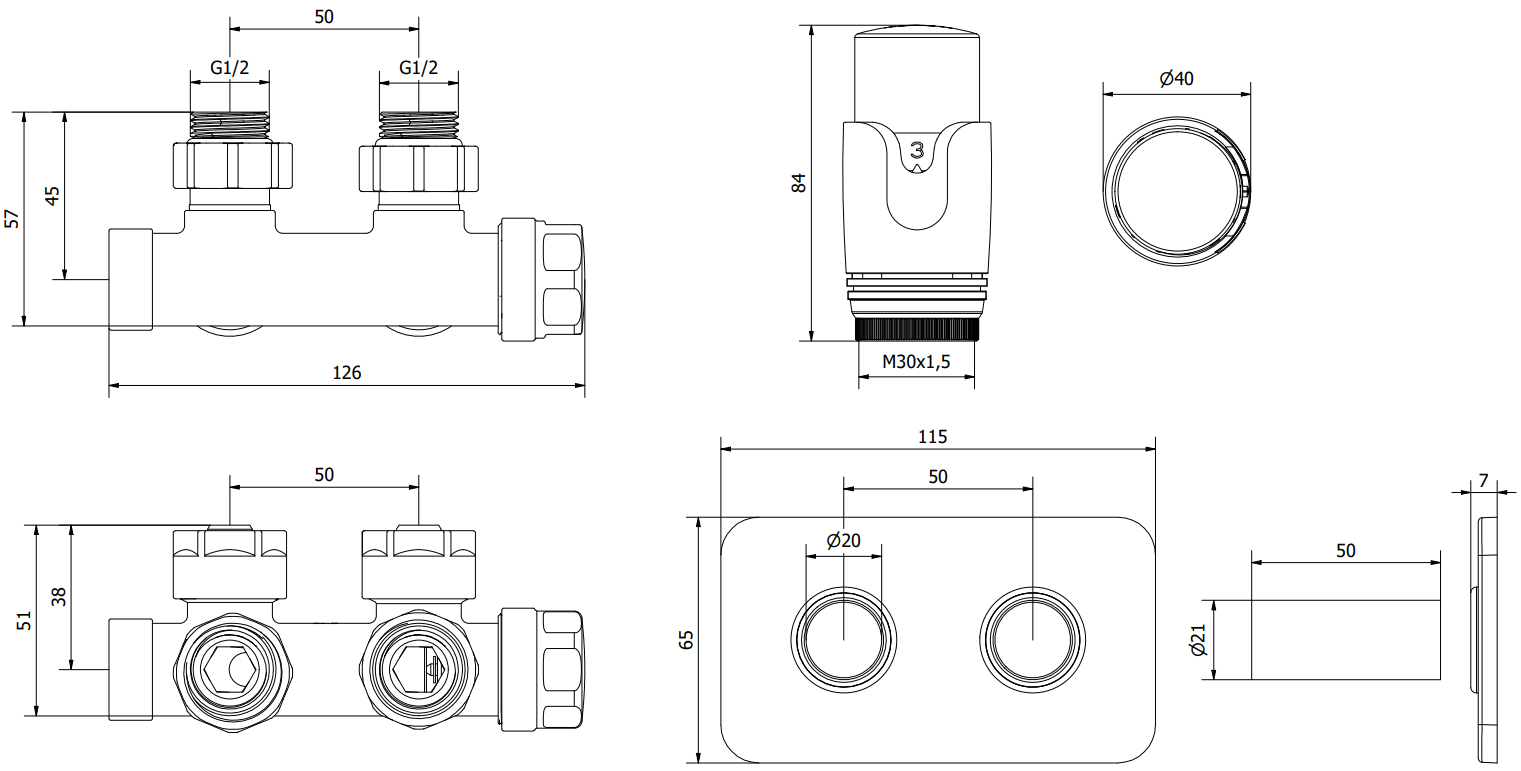

Technical Data:

Valve material: Brass

Valve color: White

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Supply and shut-off radiator valve

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head color: White

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Anti-freeze protection 5°C

Possibility of connecting the head on the left or right side of the valve

Cover color: White

Rozette material: Stainless steel

Rozette width: 115 x 65 mm

Rozette height: 7 mm

Inner hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Inner sleeve diameter: 20 mm

Spacing of holes for radiator connections: 50 mm

The cover consists of a double rosette and two sleeves

The set includes additional fittings for multi-layer pipes 16x2 mm and fittings for copper pipes 15 mm

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G00
Type
Corner
Color
White
Connection Diameter
G 1/2"
Cover
Yes
