Mexen G00 angled thermostatic set with R cover, Duplex, DN50, white - W907-900-905-20
(1)
Questions
(0)

Mexen G00 angled thermostatic set with R cover, Duplex, DN50, white - W907-900-905-20

Mexen G00 angled thermostatic set with R cover, Duplex, DN50, white - W907-900-905-20
search
  • Mexen G00 angled thermostatic set with R cover, Duplex, DN50, white - W907-900-905-20
  • Mexen G00 angled thermostatic set with R cover, Duplex, DN50, white - W907-900-905-20
  • Mexen G00 angled thermostatic set with R cover, Duplex, DN50, white - W907-900-905-20
Mexen G00 angled thermostatic set with R cover, Duplex, DN50, white - W907-900-905-20
Mexen G00 angled thermostatic set with R cover, Duplex, DN50, white - W907-900-905-20 Mexen G00 angled thermostatic set with R cover, Duplex, DN50, white - W907-900-905-20 Mexen G00 angled thermostatic set with R cover, Duplex, DN50, white - W907-900-905-20
Brand:
Mexen
Seria:
G00
Ean:
5905315237033
Index:
W907-900-905-20
Color:
White
Connection Diameter:
G 1/2"
Type:
Corner
Series:
G00
Color - White - ()

Mexen G00 angled thermostatic set with R cover, Duplex, DN50, white - W907-900-905-20

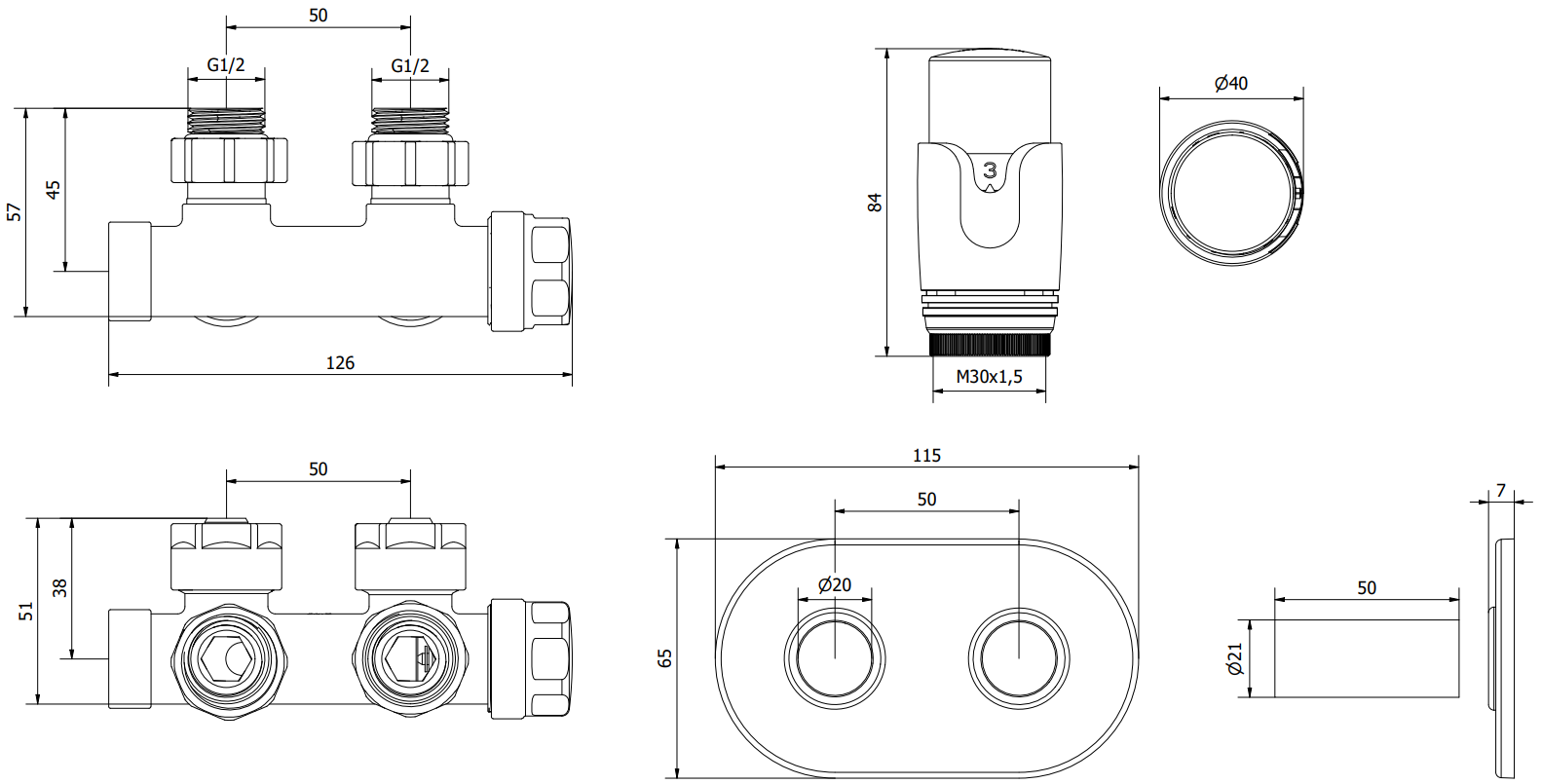

Technical data:

Valve material: Brass

Valve color: White

Valve connection diameter: G 1/2"

Operating temperature: max 120°C

Maximum operating pressure: 10 bar

Supply and shut-off radiator valve

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head color: White

Adjustment scale: 0-5

Temperature adjustment range: 0-29°C

Ambient temperature: max 50°C

Frost protection 5°C

Possibility to connect the head on the left or right side of the valve

Cover color: White

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Bushing inner diameter: 20 mm

Radiator connections hole spacing: 50 mm

The cover consists of a double rosette and two sleeves

The kit includes additional connectors for 16x2 mm multilayer pipes and connectors for 15 mm copper pipes

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G00
Type
Corner
Color
White
Connection Diameter
G 1/2"
Cover
Yes
