Mexen G00 angle thermostatic set with cover S, Duplex, DN50, chrome - W907-900-910-01
(0)
Questions
(0)

Mexen G00 angle thermostatic set with cover S, Duplex, DN50, chrome - W907-900-910-01

Mexen G00 angle thermostatic set with cover S, Duplex, DN50, chrome - W907-900-910-01
search
  • Mexen G00 angle thermostatic set with cover S, Duplex, DN50, chrome - W907-900-910-01
  • Mexen G00 angle thermostatic set with cover S, Duplex, DN50, chrome - W907-900-910-01
  • Mexen G00 angle thermostatic set with cover S, Duplex, DN50, chrome - W907-900-910-01
Mexen G00 angle thermostatic set with cover S, Duplex, DN50, chrome - W907-900-910-01
Mexen G00 angle thermostatic set with cover S, Duplex, DN50, chrome - W907-900-910-01 Mexen G00 angle thermostatic set with cover S, Duplex, DN50, chrome - W907-900-910-01 Mexen G00 angle thermostatic set with cover S, Duplex, DN50, chrome - W907-900-910-01
Brand:
Mexen
Seria:
G00
Ean:
5905315237279
Index:
W907-900-910-01
Color:
Chrome
Connection Diameter:
G 1/2"
Type:
Corner
Series:
G00
Color - Chrome - ()

Mexen G00 angle thermostatic set with cover S, Duplex, DN50, chrome - W907-900-910-01

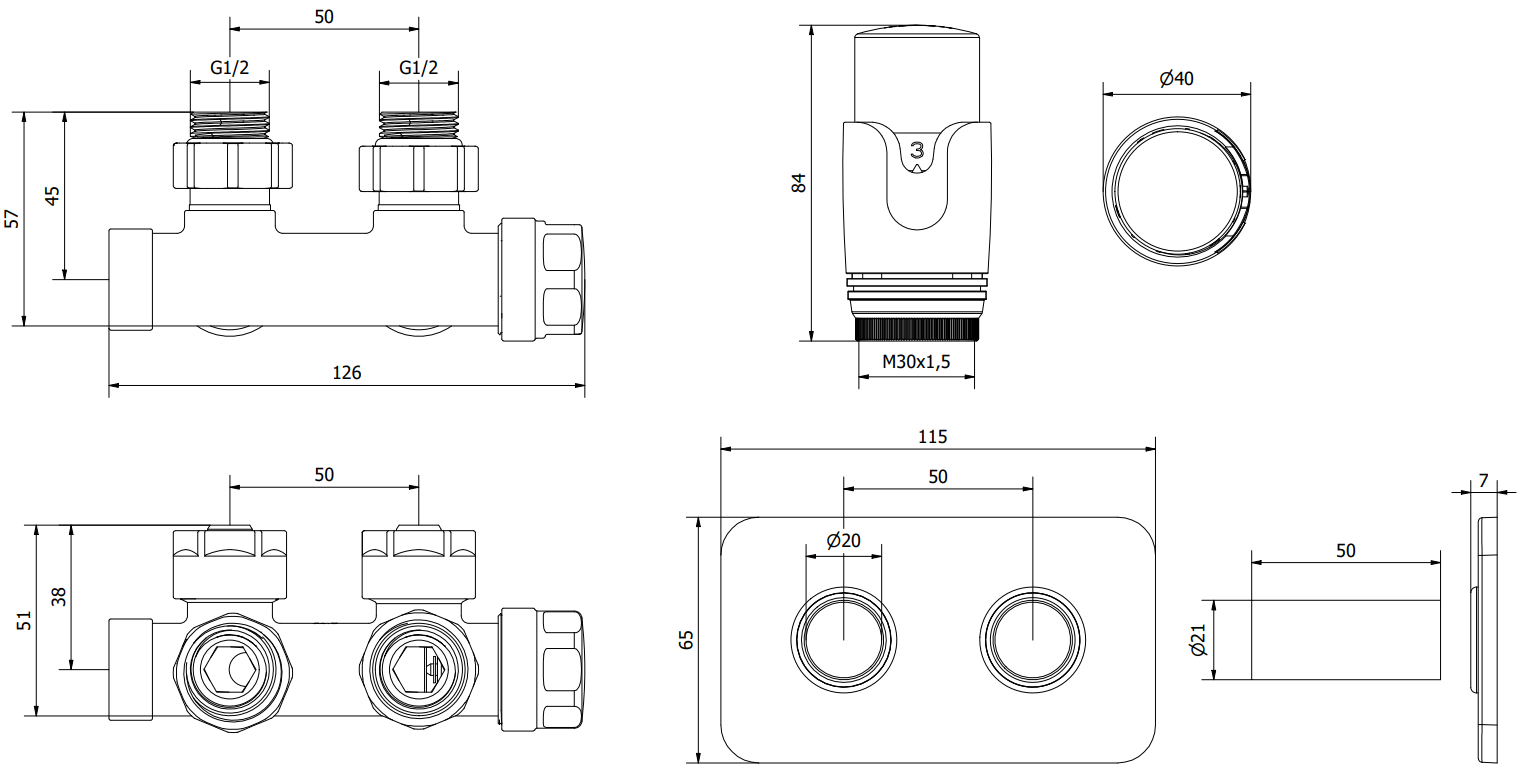

Technical data:

Valve material: Brass

Valve color: Chrome

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Radiator supply and shut-off valve

Bottom connection at 50 mm spacing

Head thread: M30 x 1,5 mm

Head color: Chrome

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection at 5°C

Possibility to connect the head to the left or right side of the valve

Cover color: Chrome

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Sleeve material: Brass

Length of sleeves: 50 mm

Inner diameter of sleeves: 20 mm

Spacing of holes for radiator connections: 50 mm

The cover consists of a double rosette and two sleeves

Includes additional fittings for 16x2 mm multilayer pipes and fittings for 15 mm copper pipes

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G00
Type
Corner
Color
Chrome
Connection Diameter
G 1/2"
Cover
Yes
