Brand:
Mexen
Seria:
G00
Ean:
5905315237064
Index:
W907-900-905-70
Color:
Black
Connection Diameter:
G 1/2"
Type:
Corner
Series:
G00
Color - Black - ()

Mexen G00 angled thermostatic set with mask R, Duplex, DN50, black - W907-900-905-70

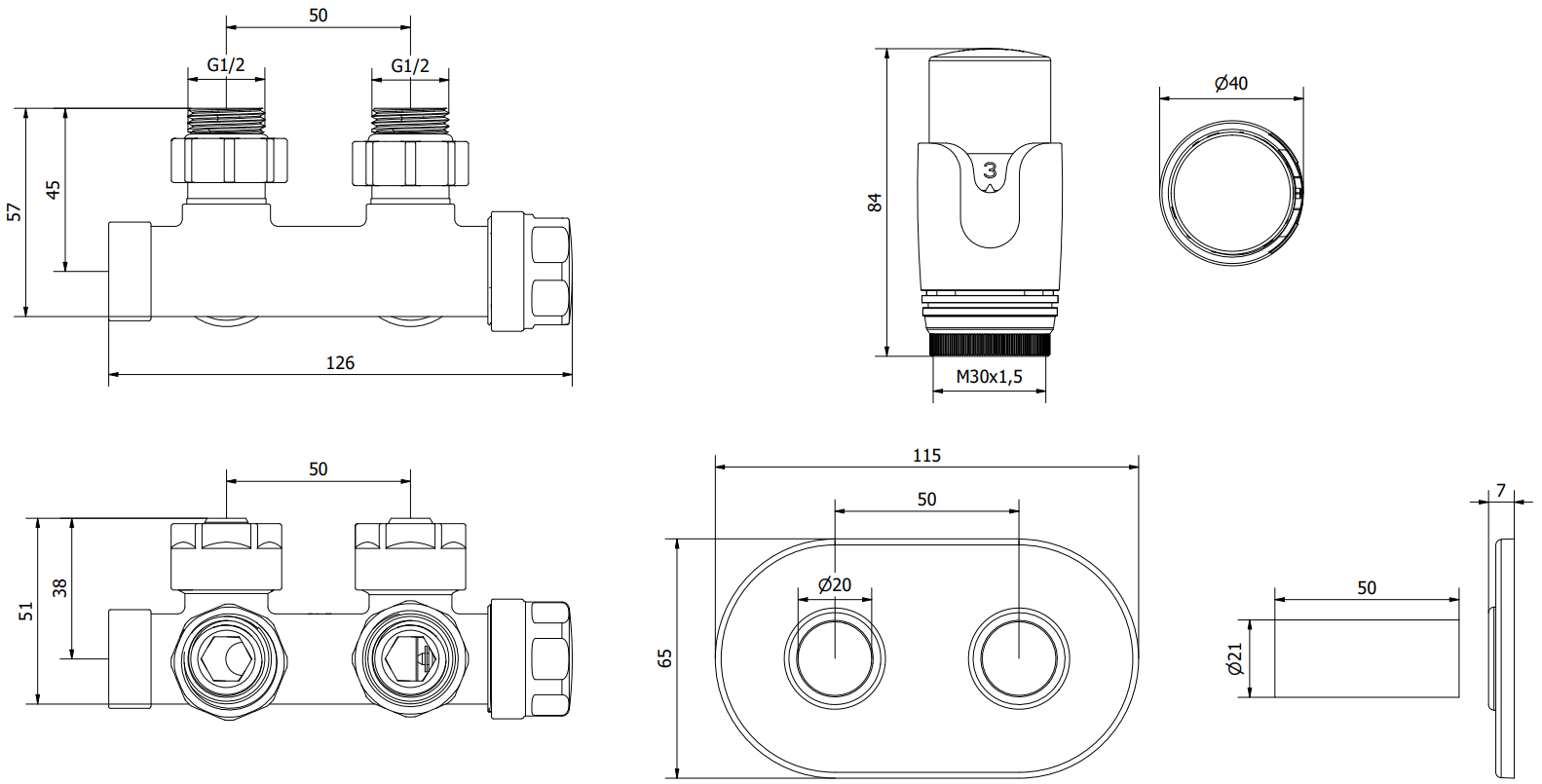

Technical data:

Valve material: Brass

Valve color: Black

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Supply and cut-off radiator valve

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head color: Black

Adjustment scale: 0-5

Temperature control range: 0-29 °C

Ambient temperature: max 50 °C

Anti-freeze protection 5°C

Possibility of connecting the head to the left or right side of the valve

Cover color: Black

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Inner diameter of bushings: 20 mm

Spacing of holes for radiator connections: 50 mm

The cover consists of a double rosette and two sleeves

Includes additional fittings for 16x2 mm multilayer pipes and 15 mm copper pipe fittings

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G00
Type
Corner
Color
Black
Connection Diameter
G 1/2"
Cover
Yes
