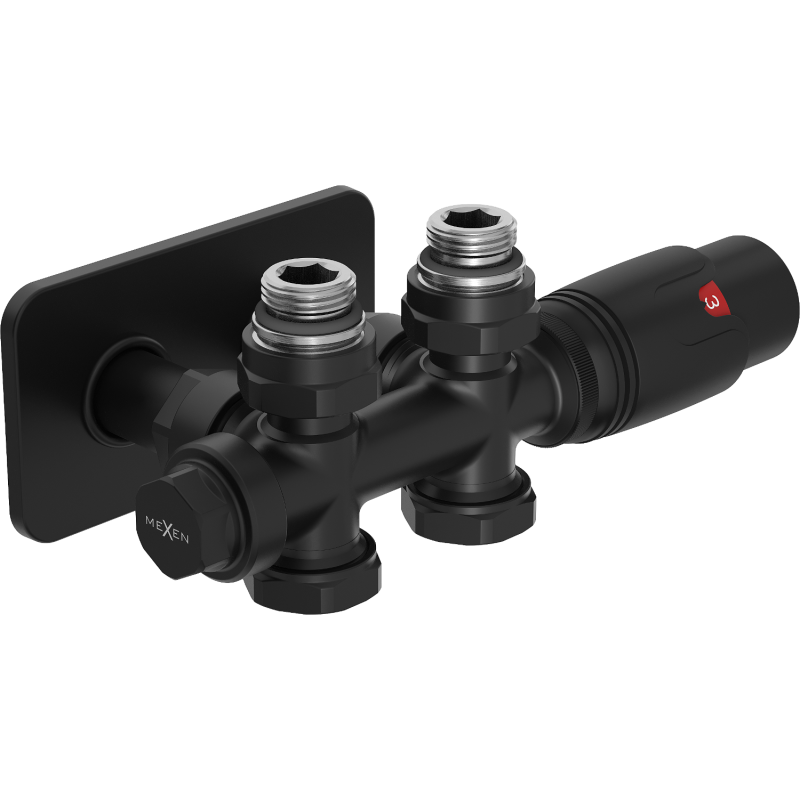

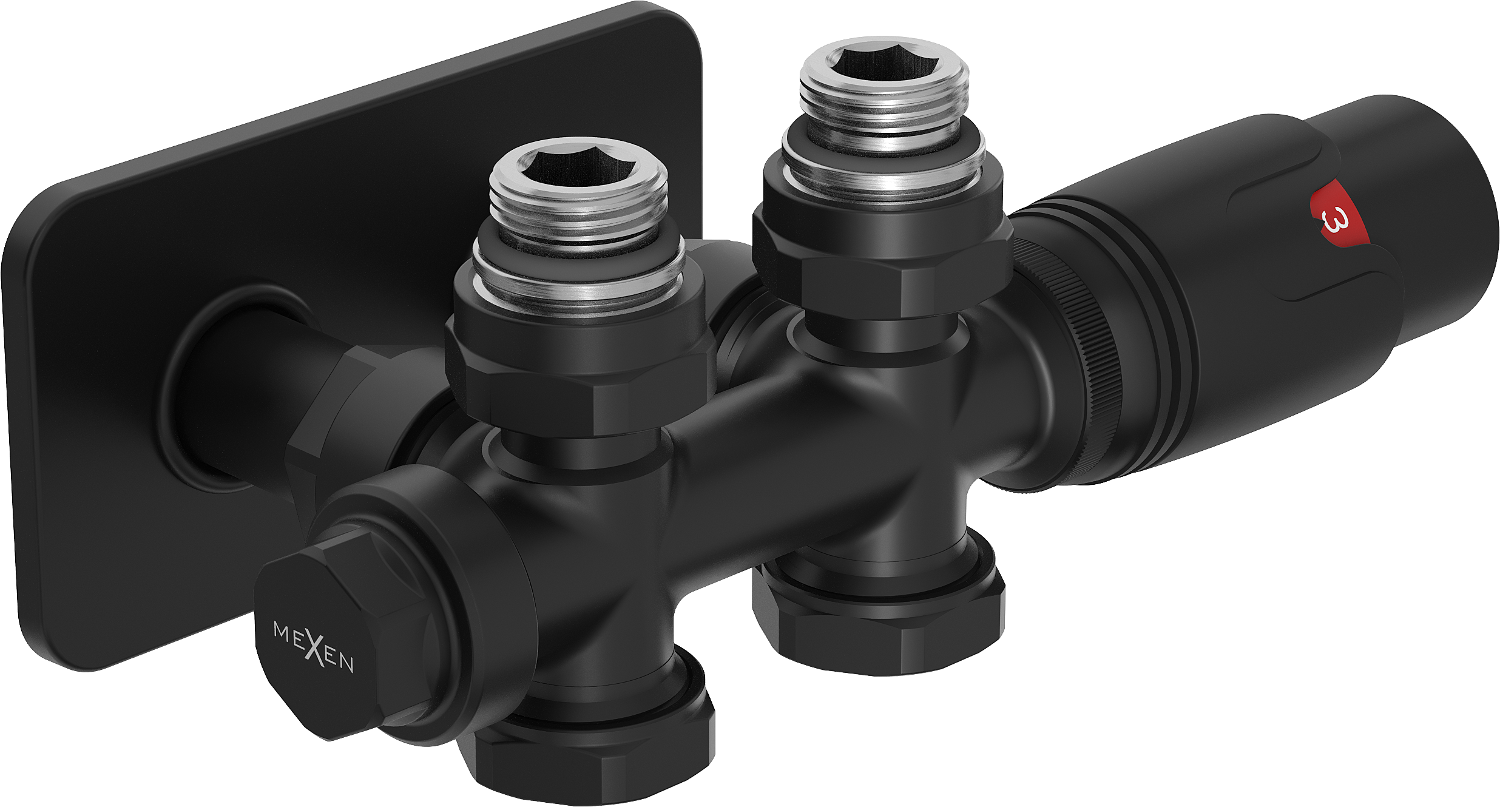

Mexen G00 thermostatic set angle/straight with S masking, Duplex, DN50, black - W908-900-910-70
(0)
Questions
(0)

Mexen G00 thermostatic set angle/straight with S masking, Duplex, DN50, black - W908-900-910-70

Mexen G00 thermostatic set angle/straight with S masking, Duplex, DN50, black - W908-900-910-70
search
  • Mexen G00 thermostatic set angle/straight with S masking, Duplex, DN50, black - W908-900-910-70
  • Mexen G00 thermostatic set angle/straight with S masking, Duplex, DN50, black - W908-900-910-70
  • Mexen G00 thermostatic set angle/straight with S masking, Duplex, DN50, black - W908-900-910-70
Mexen G00 thermostatic set angle/straight with S masking, Duplex, DN50, black - W908-900-910-70
Mexen G00 thermostatic set angle/straight with S masking, Duplex, DN50, black - W908-900-910-70 Mexen G00 thermostatic set angle/straight with S masking, Duplex, DN50, black - W908-900-910-70 Mexen G00 thermostatic set angle/straight with S masking, Duplex, DN50, black - W908-900-910-70
Brand:
Mexen
Seria:
G00
Ean:
5905315237361
Index:
W908-900-910-70
Color:
Black
Connection Diameter:
G 1/2"
Type:
Simple
Type:
Corner
Color - Black - ()

Mexen G00 thermostatic set angle/straight with S masking, Duplex, DN50, black - W908-900-910-70

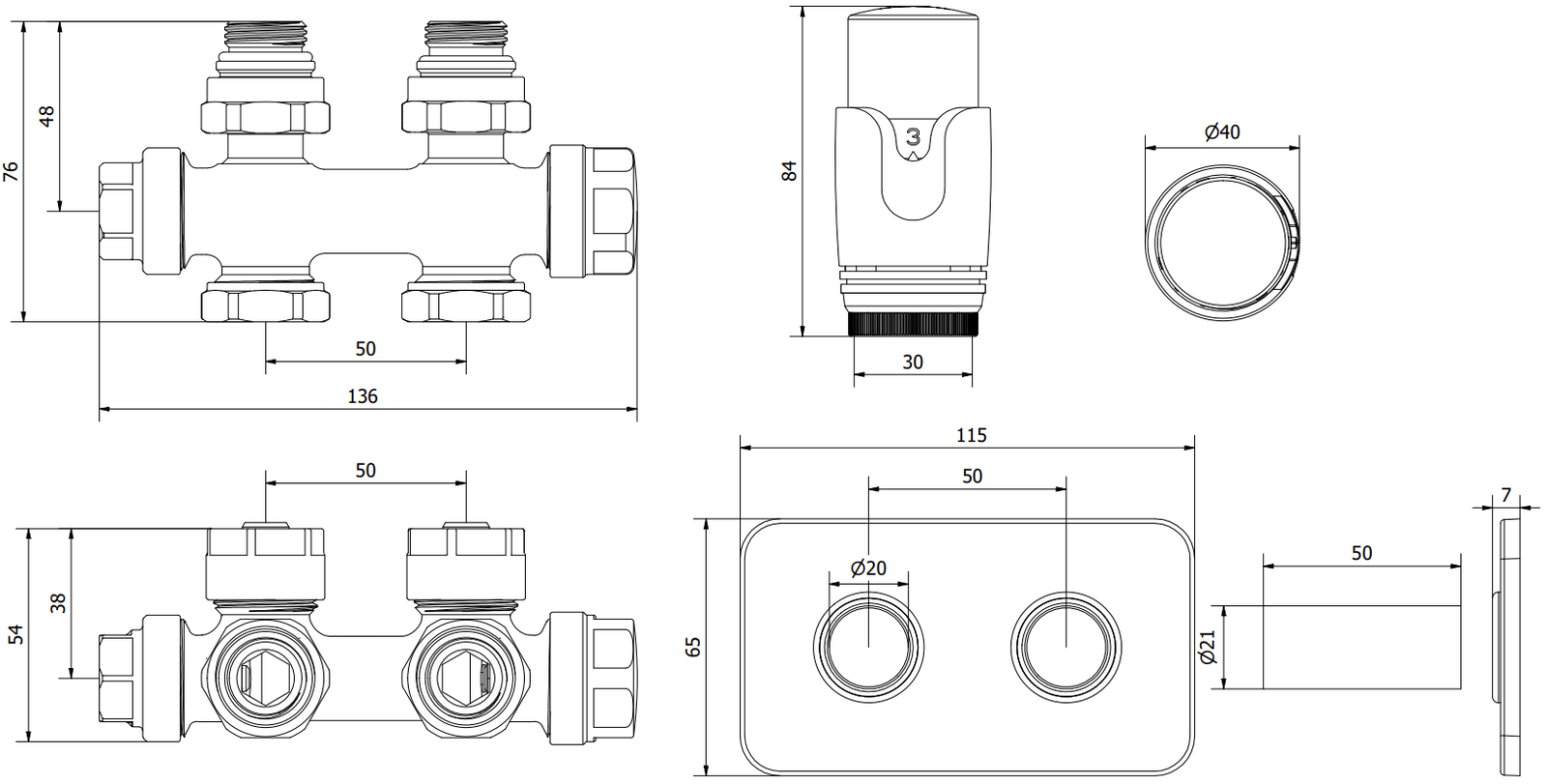

Technical data:

Valve material: Brass

Valve color: Black

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum working pressure: 10 bar

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head color: Black

Regulation scale: 0-5

Temperature regulation range: 0-29 °C

Ambient temperature: max 50 °C

Anti-freeze protection 5°C

Possibility of connecting the head on the left or right side of the valve

Masking color: Black

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Socket material: Brass

Socket length: 50 mm

Inner diameter of sockets: 20 mm

Spacing of holes for radiator connections: 50 mm

The masking consists of a double rosette and two sleeves

Includes additional fittings for 16x2 mm multilayer pipes and fittings for 15 mm copper pipes

Universal supply and shut-off valve for angle and straight connections

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G00
Type
Simple , Corner
Color
Black
Connection Diameter
G 1/2"
Cover
Yes
