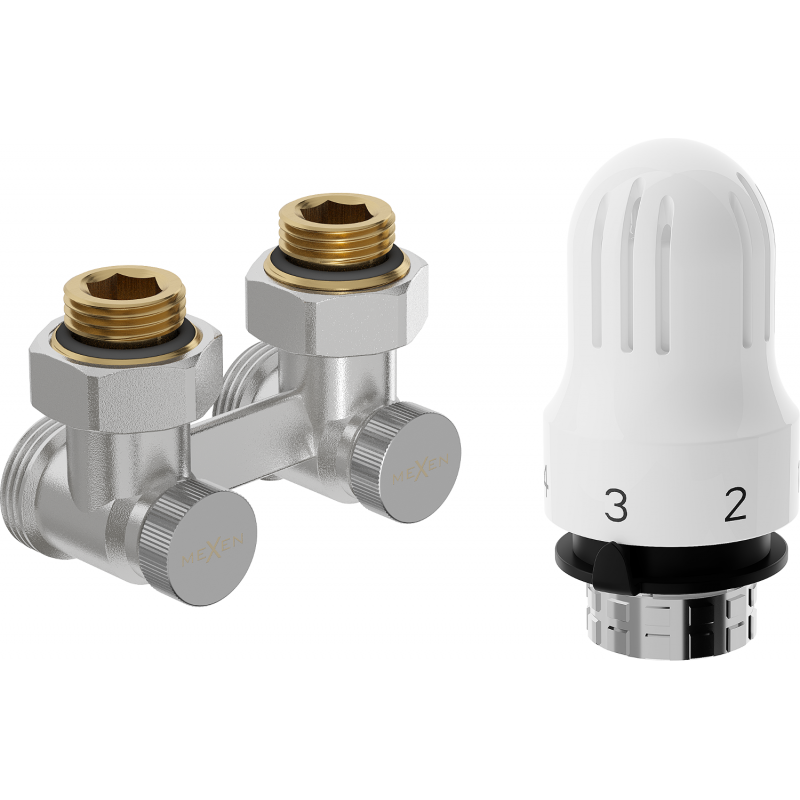

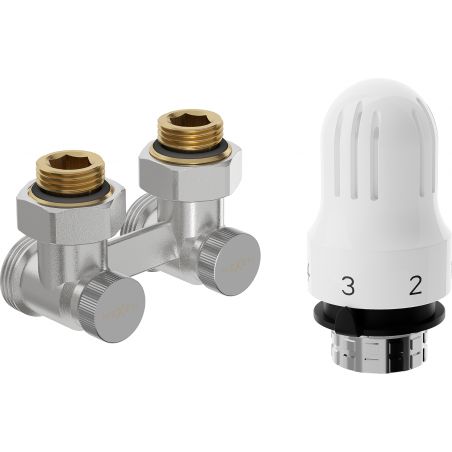

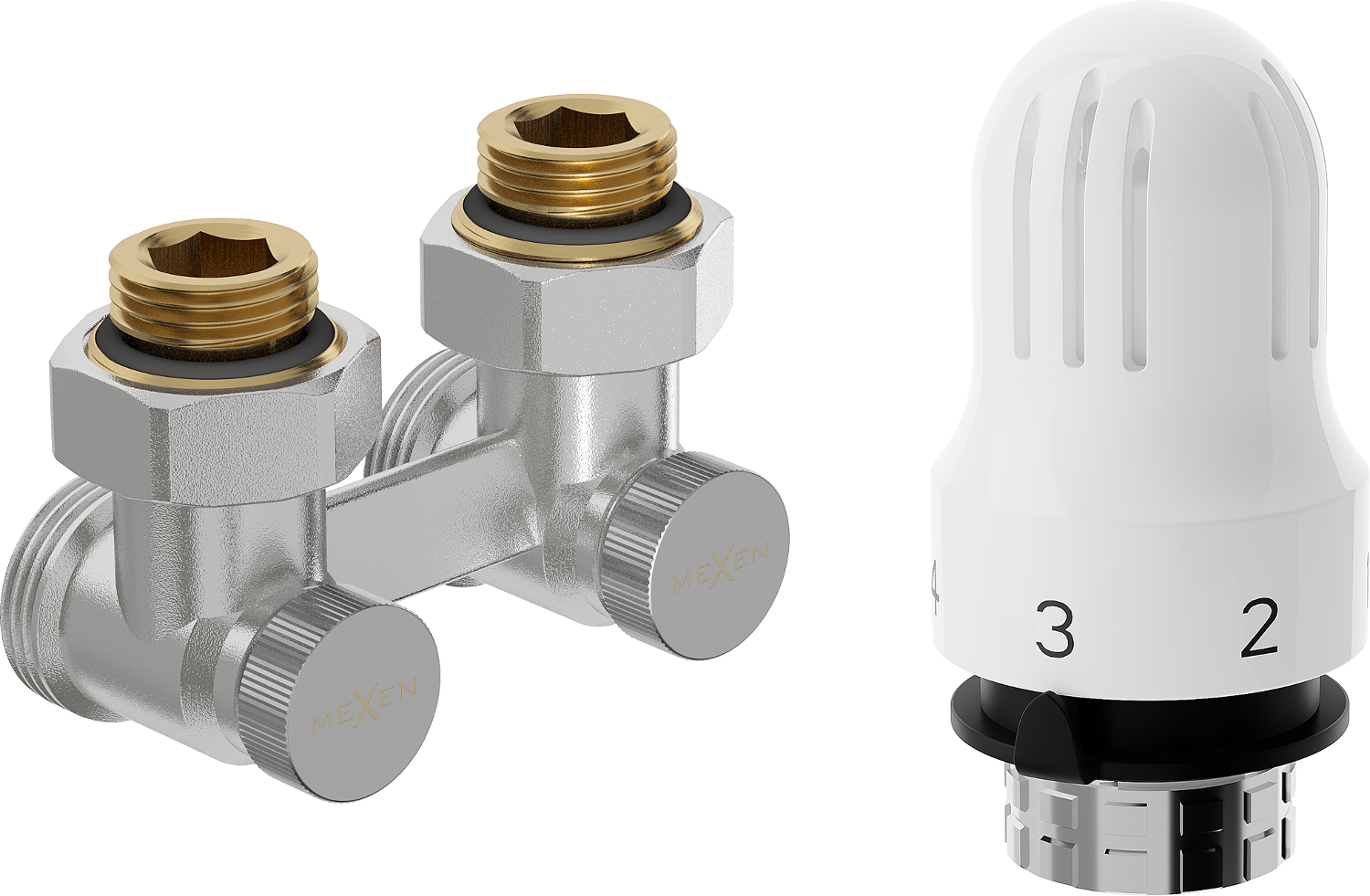

Mexen G04 thermostatic set for two-pipe DN50, angled 1/2"x3/4", nickel - W911-012-948-01
(0)
Questions
(0)

Mexen G04 thermostatic set for two-pipe DN50, angled 1/2"x3/4", nickel - W911-012-948-01

Mexen G04 thermostatic set for two-pipe DN50, angled 1/2"x3/4", nickel - W911-012-948-01
search
  • Mexen G04 thermostatic set for two-pipe DN50, angled 1/2"x3/4", nickel - W911-012-948-01
  • Mexen G04 thermostatic set for two-pipe DN50, angled 1/2"x3/4", nickel - W911-012-948-01
Mexen G04 thermostatic set for two-pipe DN50, angled 1/2"x3/4", nickel - W911-012-948-01
Mexen G04 thermostatic set for two-pipe DN50, angled 1/2"x3/4", nickel - W911-012-948-01 Mexen G04 thermostatic set for two-pipe DN50, angled 1/2"x3/4", nickel - W911-012-948-01
Brand:
Mexen
Seria:
G04
Ean:
5905315237637
Index:
W911-012-948-01
Connection Diameter:
G 1/2"
Connection Diameter:
G 3/4"
Type:
Corner
Color:
Nickel

Mexen G04 thermostatic set for two-pipe DN50, angled 1/2"x3/4", nickel - W911-012-948-01

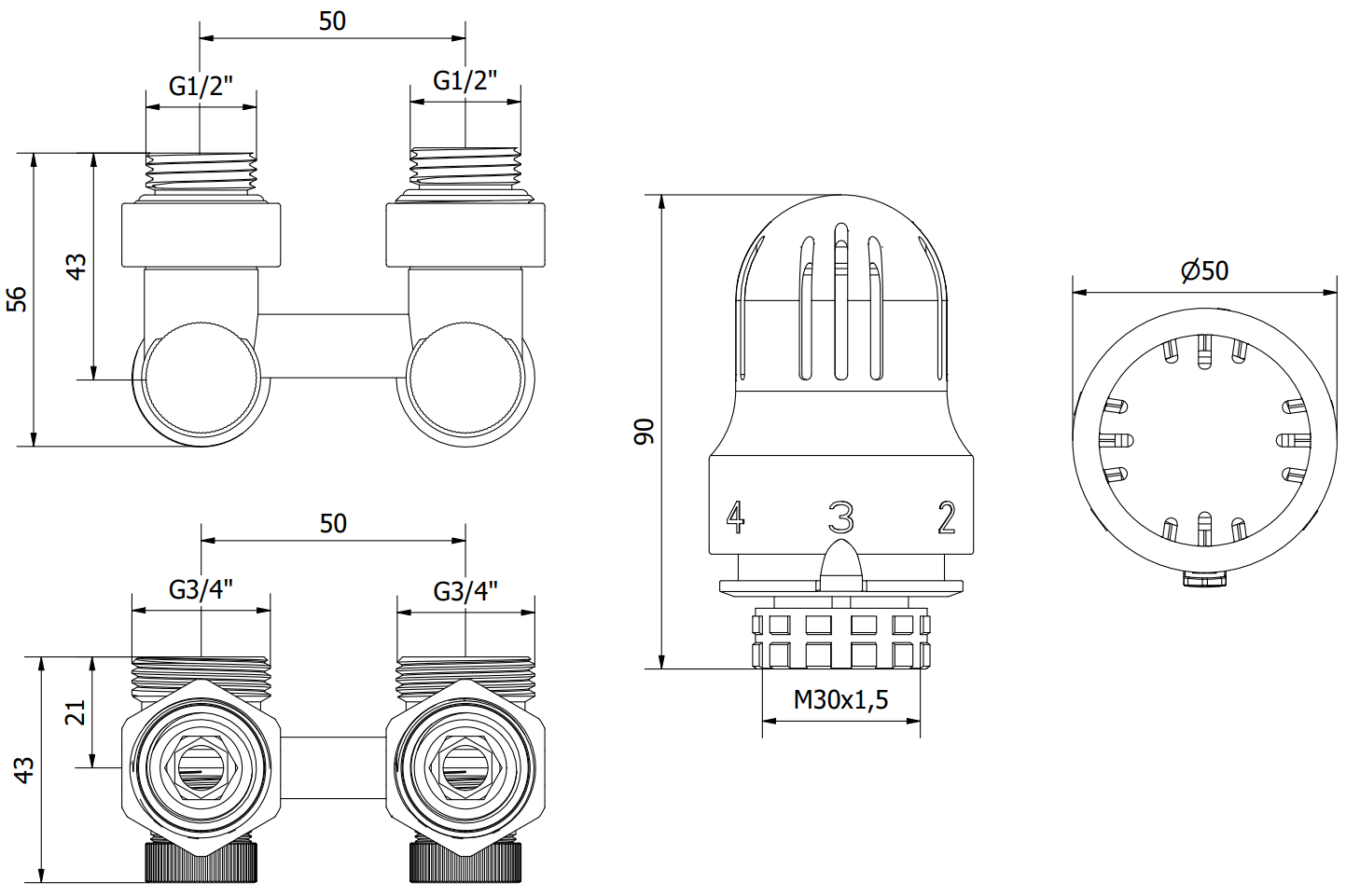

Technical data:

Valve material: Brass

Valve color: Nickel

Valve connection diameter: G 1/2" and G 3/4"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Radiator supply and shut-off valve

Bottom connection with spacing of 50 mm

Head thread: M30 x 1.5 mm

Head color: White

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5 °C

Innovative solutions used in this product

2-year warranty

The product is covered by a 2-year warranty. If you have any problems with the purchased product, please contact us via the contact form or by calling our hotline.

Serial
G04
Type
Corner
Color
Nickel
Connection Diameter
G 1/2" , G 3/4"
Cover
No
User Manual
Download
Warranty conditions
Download
Manufacturer
See
