Mexen CH30 Hygiene panel heater 400 x 1000 mm, side connection, 1096 W, anthracite - W430H-040-100-66

Technical data:

Height (Y): 400 mm

Width (X): 1000 mm

Depth: 164 mm

Connection spacing: 35 cm

Spacing of vertical water channels: 33.3 mm

Color: Anthracite RAL 7016

Material: Steel

Working temperature: max 110 °C

Maximum operating pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 573 W

- 75/65/20 °C 1096 W

- 90/70/20 °C 1382 W

Connections:

- 4xG ½” side

High-quality, durable paint coat - DIN 99500

Designed for rooms with higher hygiene standards

Includes: brackets, assembly set, sealing plugs and air vent

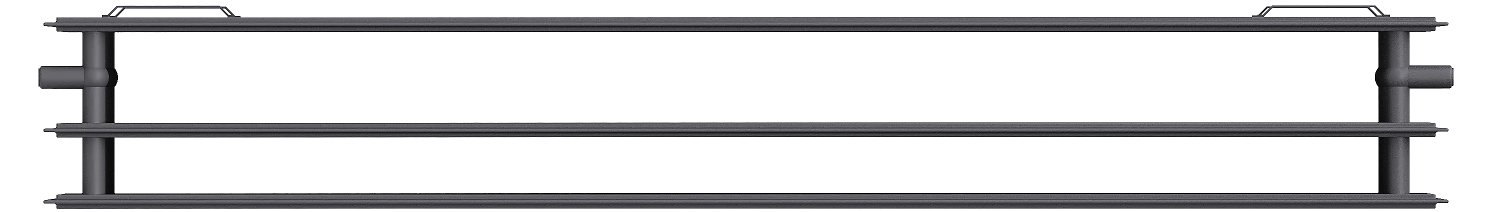

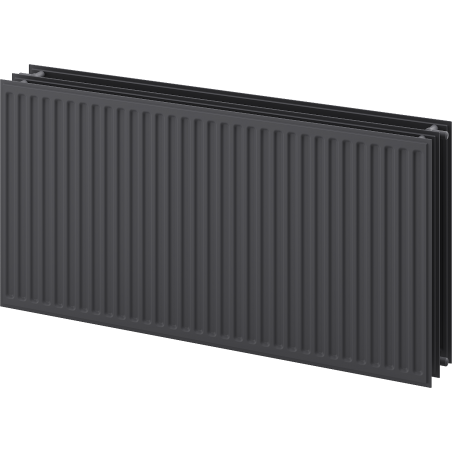

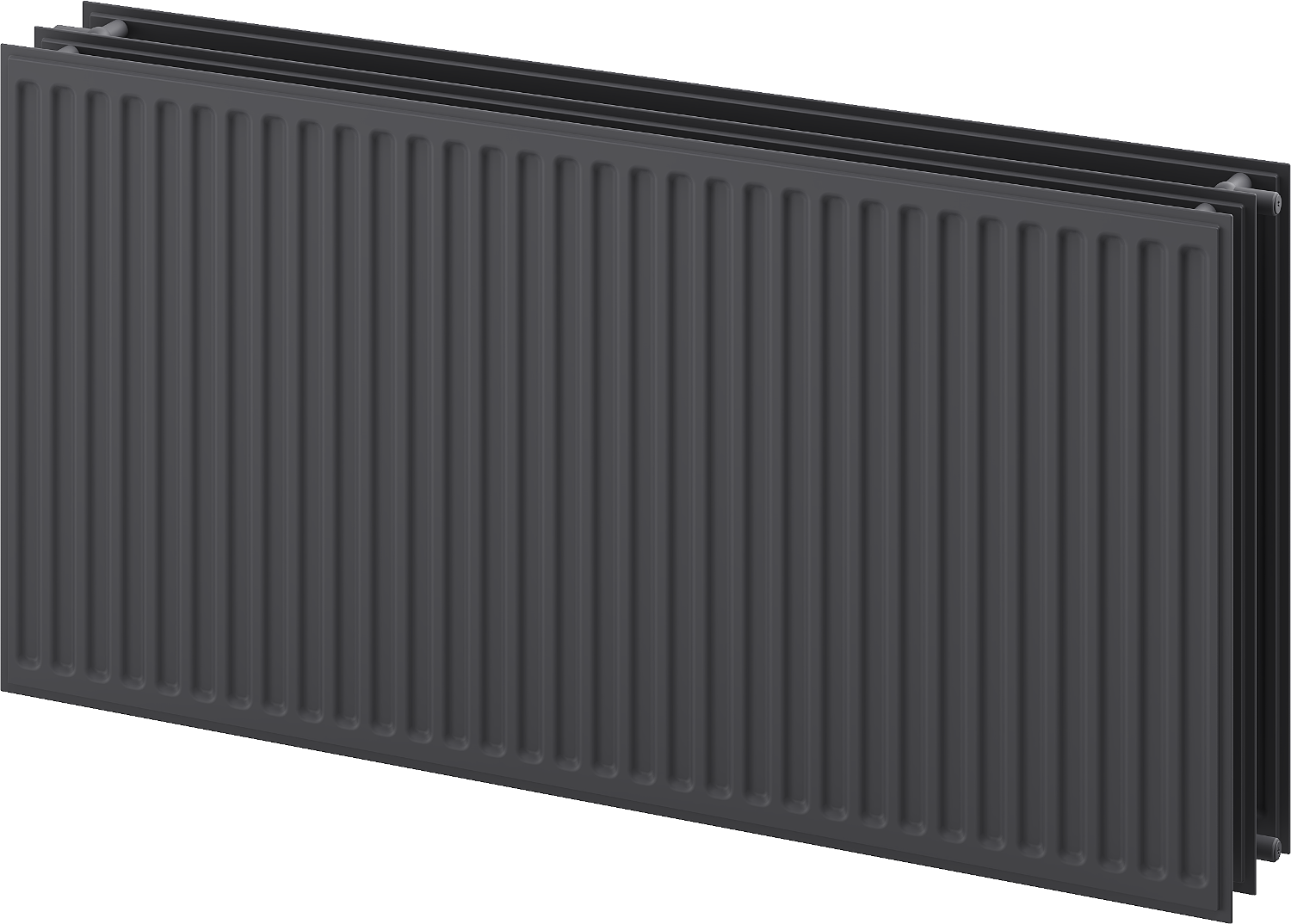

Images depict the heater in size 600 x 1200 mm.

Innovative solutions used in this product

steel

The product was made of high quality low -carbon steel, which not only affects the long life of the device and corrosion resistance, but also allows you to quickly heat the room and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technologies, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, which increases the comfort of use.

Increased hygiene standards

The product has been designed to maintain the highest standards of cleanliness and hygiene. Due to the lack of side covers and a grill-type top cover, these heaters are particularly recommended for places where cleanliness is a priority, i.e. hospitals, doctors' offices, kindergartens or other public facilities.

Paint coating: DIN 99500

The high-quality, durable paint finish combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The ability to remove the upper lid allows you to keep the radiator easier clean. Convenient access to the interior allows it to be cleaned, not only ensuring aesthetic appearance, but also greater user safety.

1 MPa

The maximum working pressure is 1 MPa (10 bar). This means that the radiator can work safely and effectively in standard conditions of use. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110 ° C

The maximum temperature achieved by the radiator during operation is 110 ° C. It allows for effective and efficient heating of the room, while ensuring the safety of users and the surface of the surrounding radiator.

Resistance to matting and corrosion

The product is made of high quality materials resistant to matting and corrosion, thanks to which it maintains its attractive appearance and functionality for a long time, regardless of the level of humidity in the room.

10 years of warranty

The product is covered by a 10-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Width
1000 mm
Height
400 mm
Type
Panel / Panel
Heating power
1096 W
Color
Anthracite
Material
Steel
Type
30
Strength
Universal
Depth
164 mm
Connection spacing
35 cm
Connection
Side
Orientation
Horizontal
User Manual
Download
Warranty terms
Download
Manufacturer
See
