Mexen Tex Air F freestanding pneumatic concealed frame for WC - 61101A

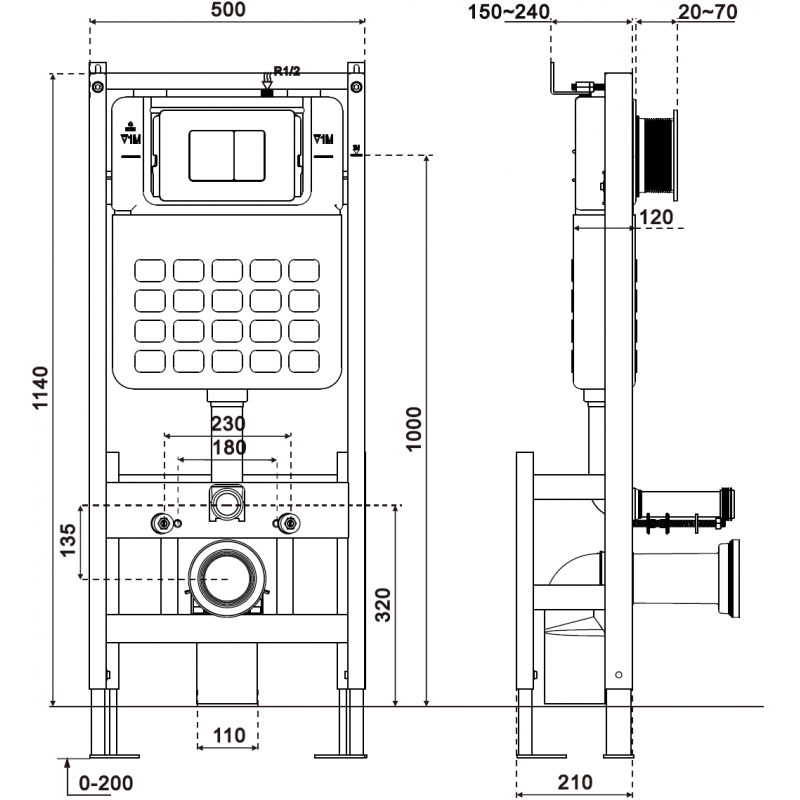

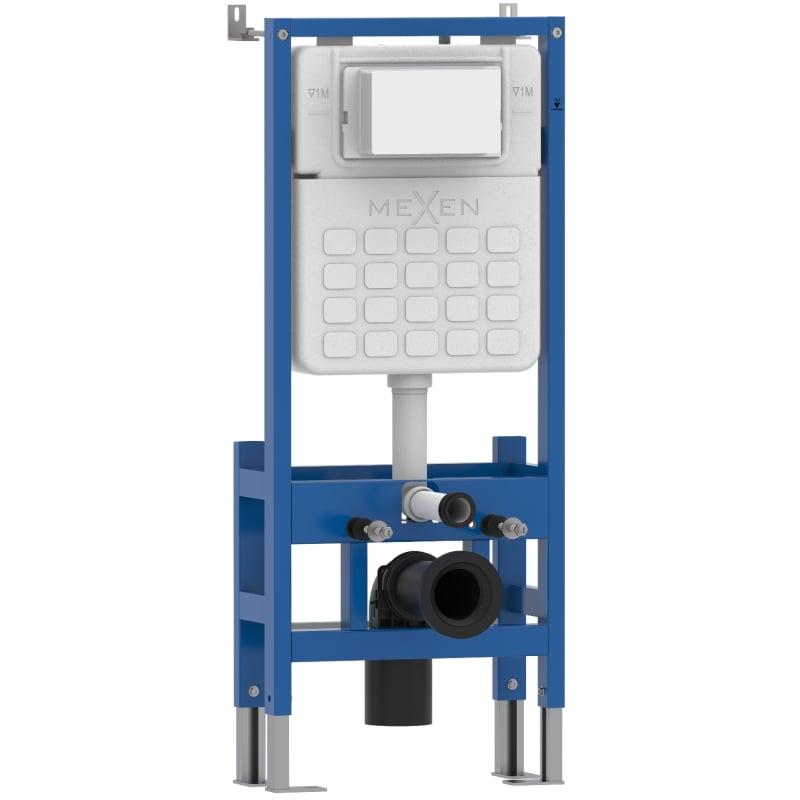

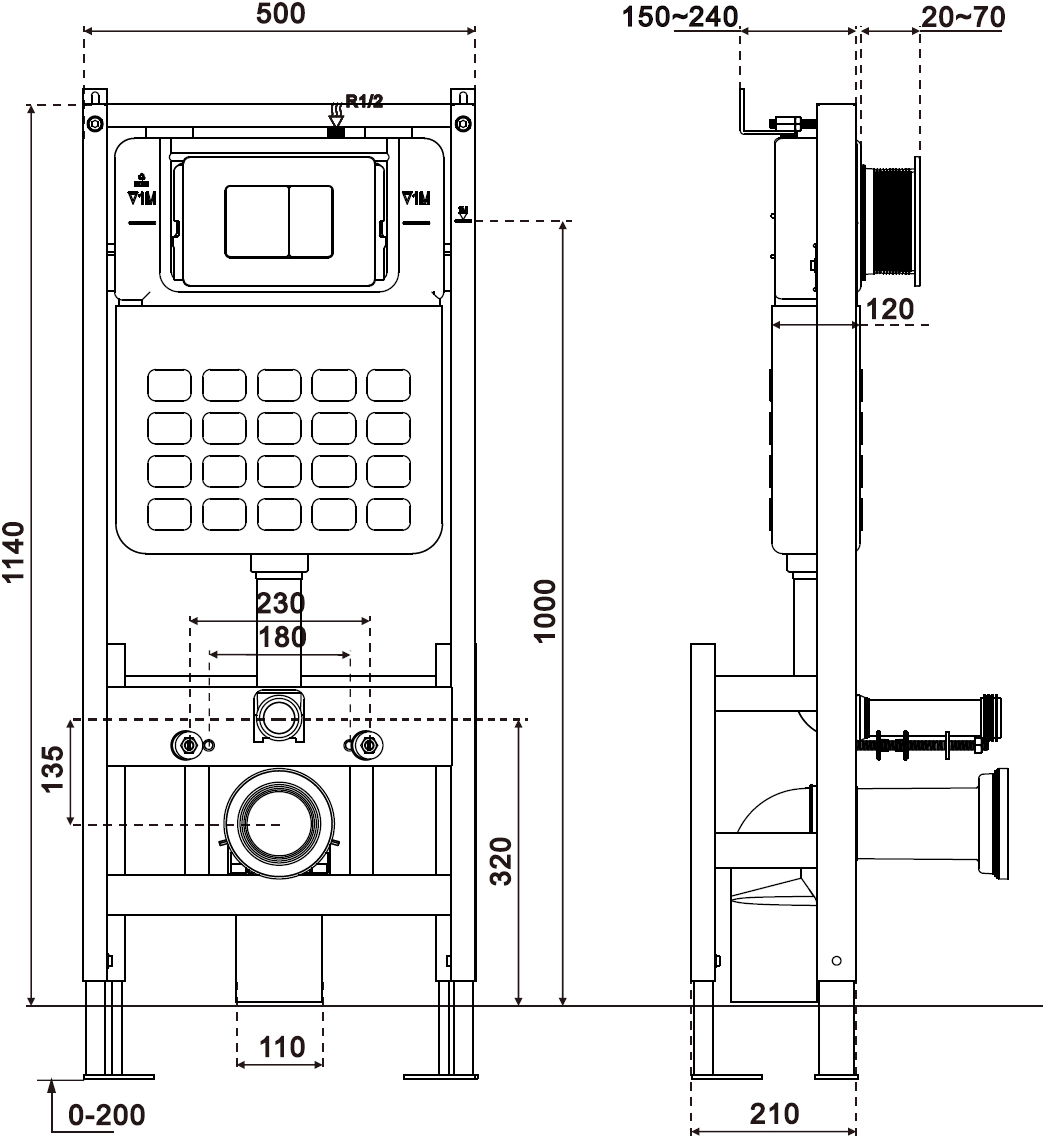

Mexen Tex Air F is a freestanding concealed frame with pneumatic flushing function. With a height of 114 cm, width of 50 cm, and thickness of 12 cm, it is perfect for installation in both solid and plasterboard walls. It offers compatibility with hanging bowls with a hole spacing of 18 cm or 23 cm. It features adjustable galvanized legs and brackets, facilitating installation on flooring with a thickness of 0-20 cm. The tank with anti-condensation insulation ensures durability, and the adjustable flushing volume (6/9 L, 4.5/3 L) offers efficiency. Ideal for pairing with Mexen Tex series buttons.

Product Specifications:

Height: 114 cm

Width: 50 cm

Thickness: 12 cm

Pneumatic flushing

For installation in a solid wall or a plasterboard wall

For hanging bowls with 18 cm or 23 cm hole spacing

For installation on a floor with a flooring thickness of 0-20 cm

Galvanized adjustable legs ranging 0-20 cm

Galvanized adjustable brackets ranging 150-240 mm

Tank with anti-condensation insulation

Adjustable flushing volume: 6/9 L, 4.5/3 L

Soundproof mat included

Compatible with Mexen Tex series buttons

Innovative solutions used in this product

Pneumatic system

The pneumatic flushing system is advanced technology that provides exceptional user comfort. Thanks to the use of compressed air, the flush buttons operate incredibly smoothly and quietly. Additionally, these systems are very precise, which makes flushing more efficient and economical.

Economical Flushing

Thanks to the use of a dual button, we decide whether a larger or smaller amount of water is needed for flushing at any given time. This solution is not only economical but also environmentally friendly.

Adjustable Brackets

The ability to adjust the distance from the wall using brackets allows for precise fitting of the frame to the specific dimensions of the bathroom. This feature is particularly useful in small or confined spaces.

Adjustable legs

The ability to adjust the height of the frame allows for better adaptation to different technical conditions in the bathroom. The flexible adjustment range provides convenience in installation and achieving the optimal frame height.

Adjustment of the drain elbow

The product features an adjustable drain elbow, allowing for a reduction in installation depth. This function facilitates easy adaptation of the product to various drain openings available in the bathroom, ensuring precise installation.

Anti-condensation Insulation

The tank has been secured with special anti-condensation insulation. It effectively reduces noise during filling and protects against corrosion. The insulation allows you to enjoy the performance and convenience, as well as the long durability of the tank.

Durability

The concealed frame is made of steel profiles and additionally reinforced with vertical supports. As a result, it is characterized by high durability against heavy loads, ensuring safe use for many years.

Front Button

The button is located at the front of the frame, making it easily accessible. This facilitates quick and convenient activation of the flushing function, which enhances the comfort of daily toilet use.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
Tex Air F
Width
50 cm
Height
114 cm
Button included
No
Button Installation
From the Front
Mechanism
Mechanical
