Mexen G01 thermostatic valve set dual-pipe DN50, angled 1/2"x3/4", nickel - W911-012-918-01
Mexen G01 thermostatic valve set dual-pipe DN50, angled 1/2"x3/4", nickel - W911-012-918-01 Mexen G01 thermostatic valve set dual-pipe DN50, angled 1/2"x3/4", nickel - W911-012-918-01
Brand:
Mexen
Seria:
G01
Ean:
5905315237200
Index:
W911-012-918-01
Connection Diameter:
G 1/2"
Connection Diameter:
G 3/4"
Type:
Corner
Color:
Nickel

Mexen G01 thermostatic valve set dual-pipe DN50, angled 1/2"x3/4", nickel - W911-012-918-01

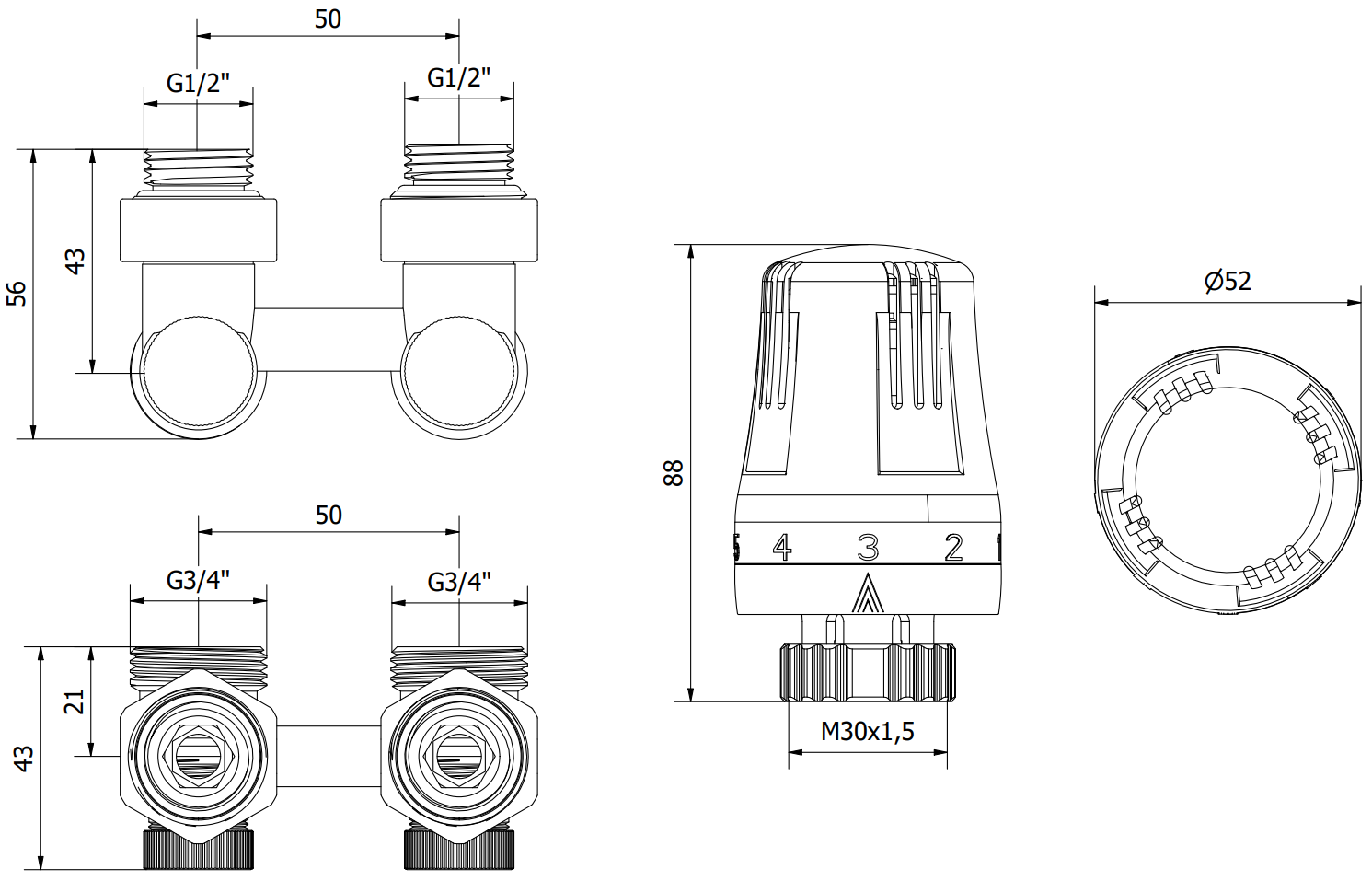

Technical data:

Valve material: Brass

Valve color: Nickel

Valve connection diameter: G 1/2" and G 3/4"

Working temperature: max 120 °C

Maximum working pressure: 10 bar

Radiator supply and shut-off valve

Lower connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head color: White

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G01
Type
Corner
Color
Nickel
Connection Diameter
G 1/2" , G 3/4"
Cover
No
User Manual
Download
Warranty conditions
Download
Manufacturer
See
