Mexen G01 angled thermostatic set, nickel - W913-012-918-01

Mexen G01 angled thermostatic set, nickel is an excellent choice for those who value high quality and functionality. Made of durable brass, the nickel-coloured valves ensure reliable performance. With a connection diameter of G 1/2" and a maximum working temperature of up to 120°C, the set is ideal for various heating installations. A maximum working pressure of 10 bar and frost protection down to 5°C guarantee safe usage. The adjustment scale of 0-5 and a temperature adjustment range of 0-29°C allow precise control.

Technical data:

Valve material: Brass

Valve colour: Nickel

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head colour: White

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

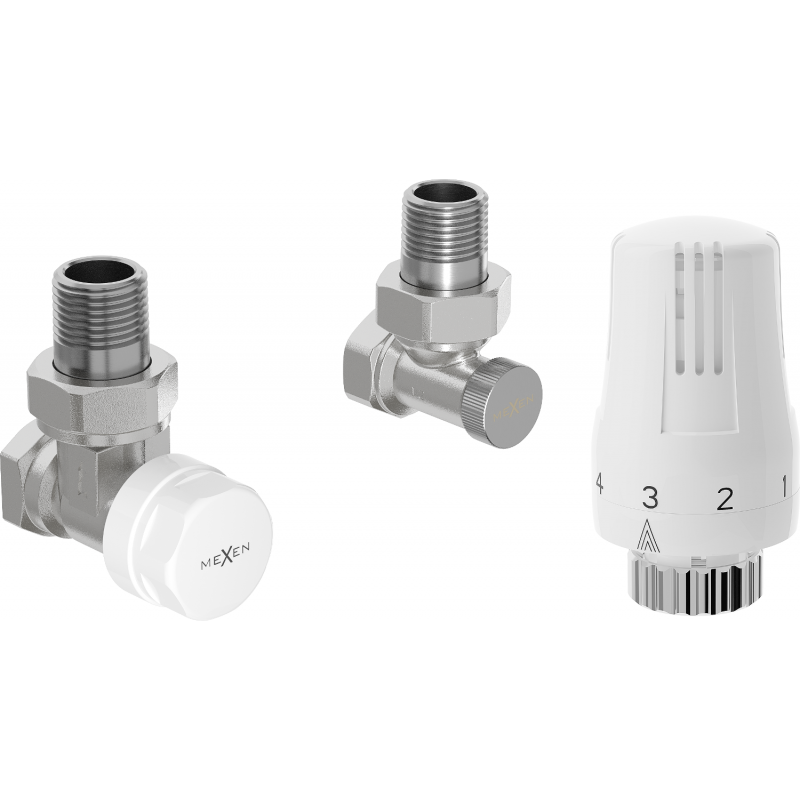

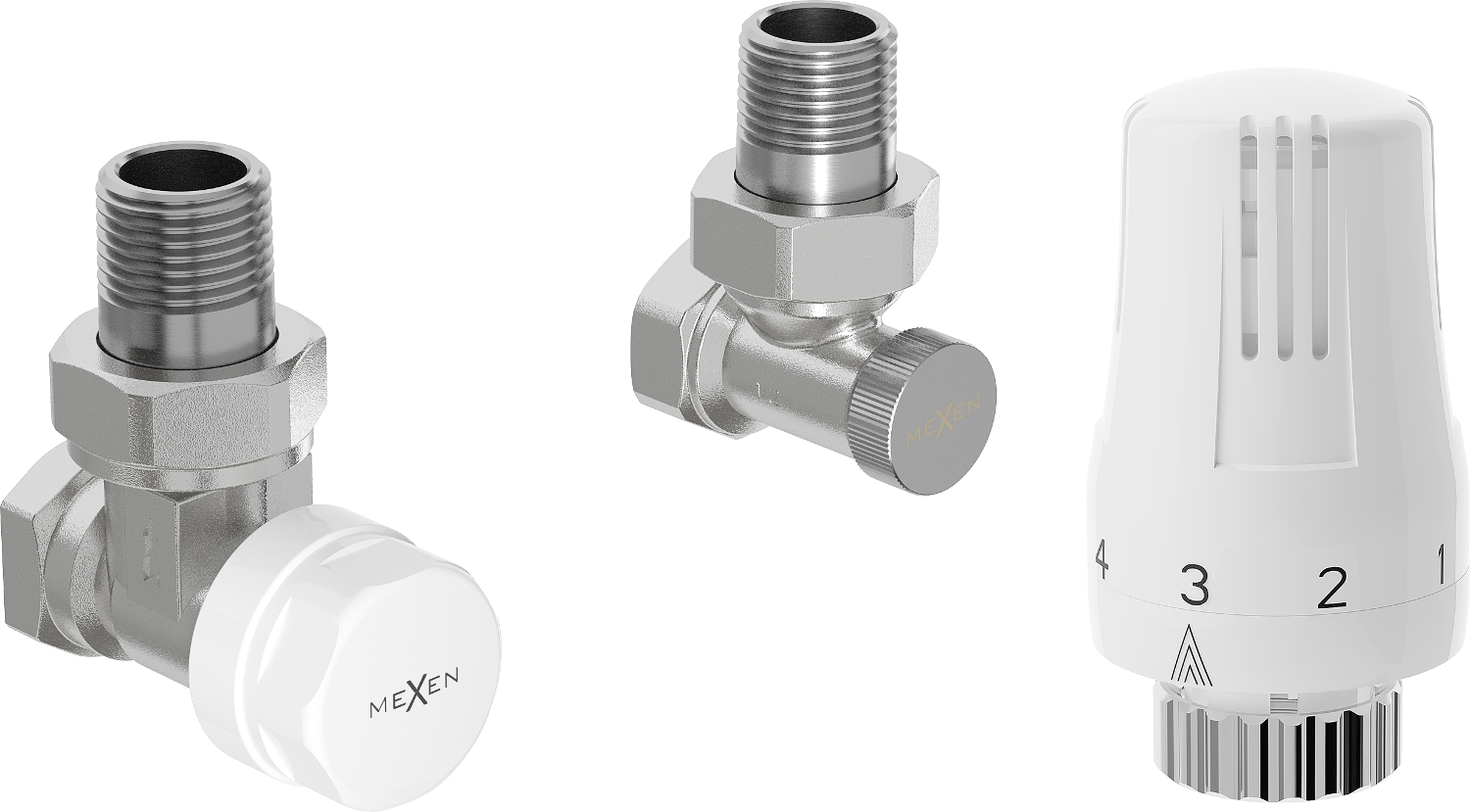

Included in the set are the supply and shut-off radiator valves

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G01
Type
Angular
Colour
Nickel
Connection diameter
G 1/2"
Cover
No
