Mexen G01 DN50 Dual-pipe Thermostatic Set, Angled 1/2"x16 mm, Nickel - W911-016-918-01

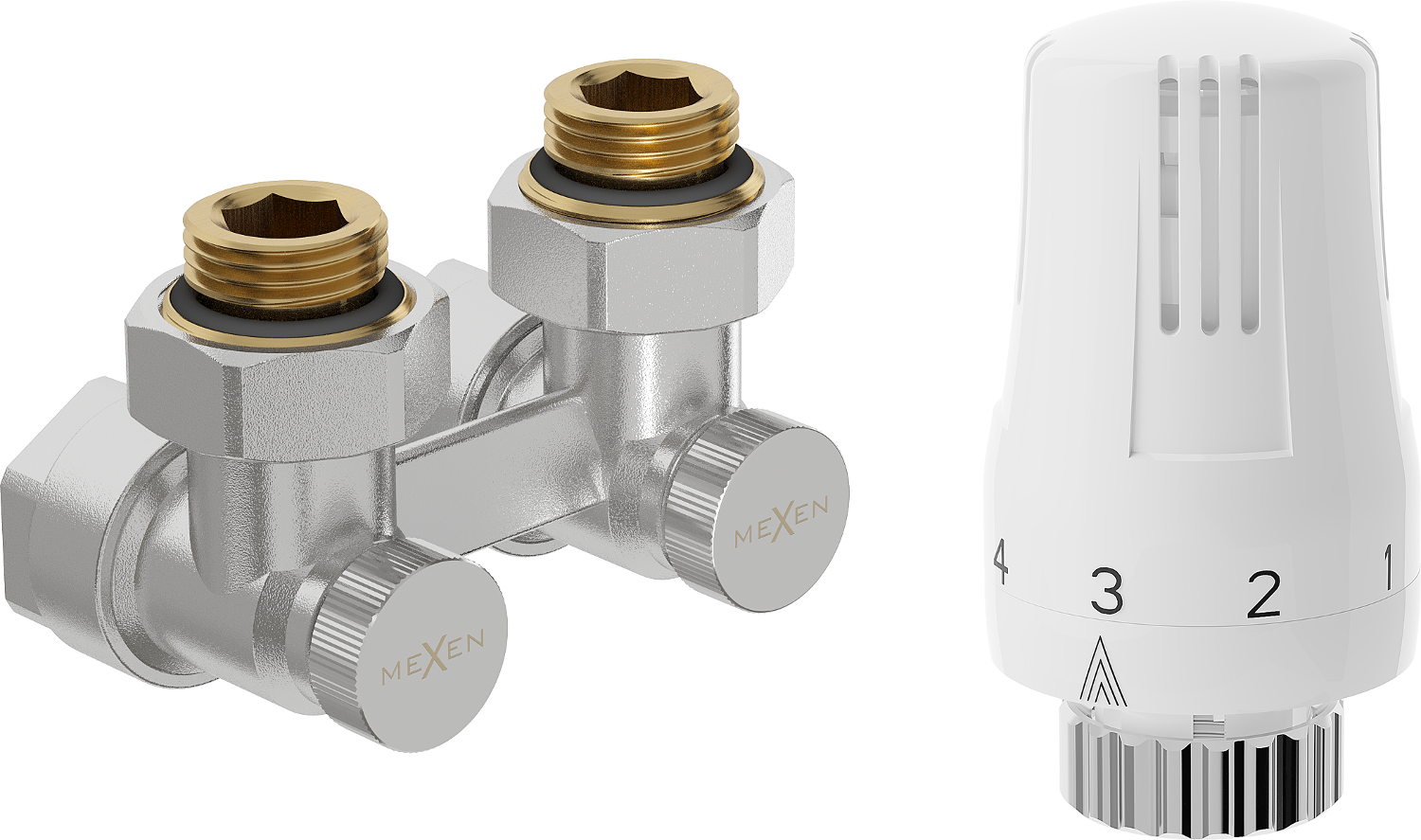

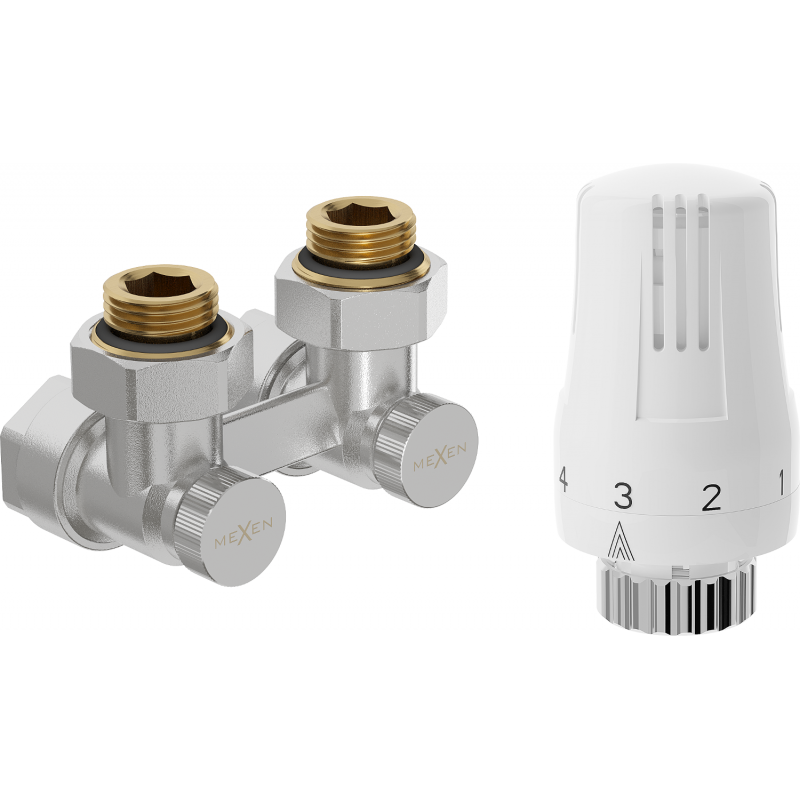

The Mexen G01 DN50 dual-pipe thermostatic set, angled 1/2"x16 mm, nickel, is the perfect solution for demanding users. Made from durable brass and coated with elegant nickel, it guarantees durability and a stylish appearance. The set includes a supply and shut-off radiator valve and a temperature-adjusting head from 0 to 29°C. The maximum operating temperature is 120°C, and the working pressure is 10 bar. Additionally, the product features frost protection at 5°C.

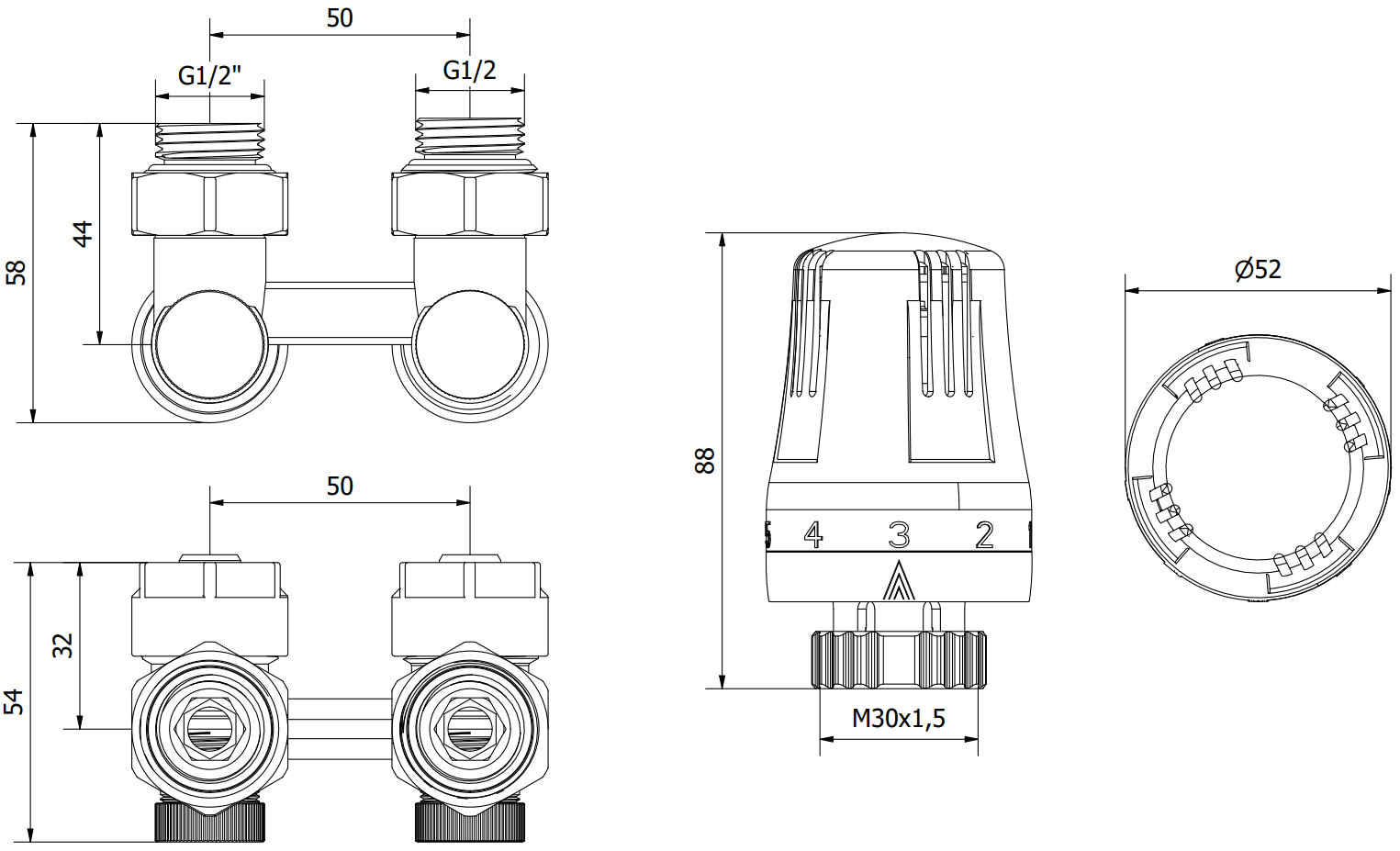

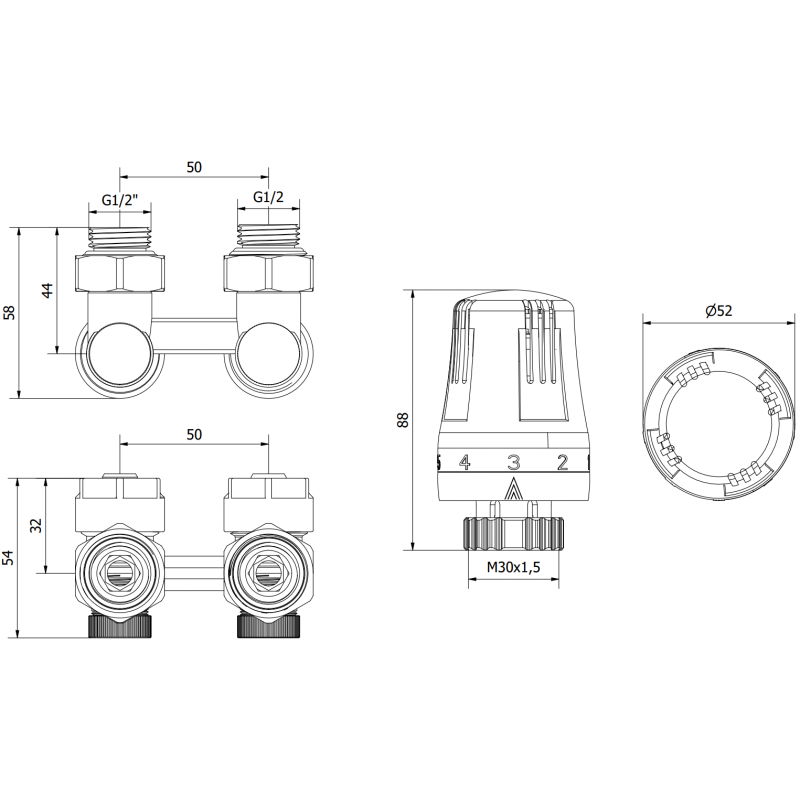

Technical data:

Valve material: Brass

Valve colour: Nickel

Connection diameter: G 1/2" and pex 16x2 mm

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Supply and shut-off radiator valve

Bottom connection at 50 mm spacing

Head thread: M30 x 1.5 mm

Head colour: White

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection at 5°C

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G01
Type
Angular
Colour
Nickel
Connection diameter
G 1/2"
Cover
No
User Manual
Download
Warranty conditions
Download
Manufacturer
See
