Mexen G01 two-pipe thermostatic set DN50, straight 1/2"x16 mm, nickel - W912-016-918-01

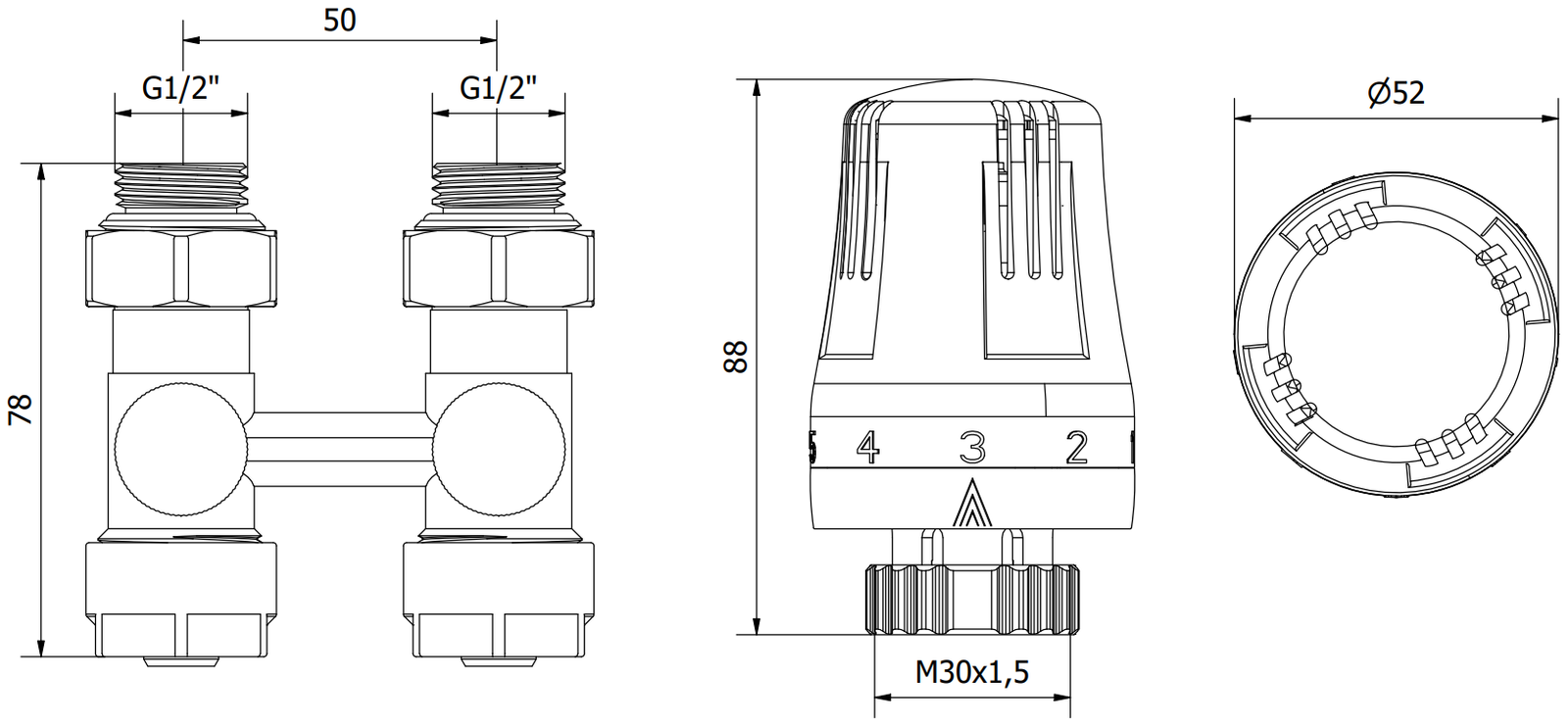

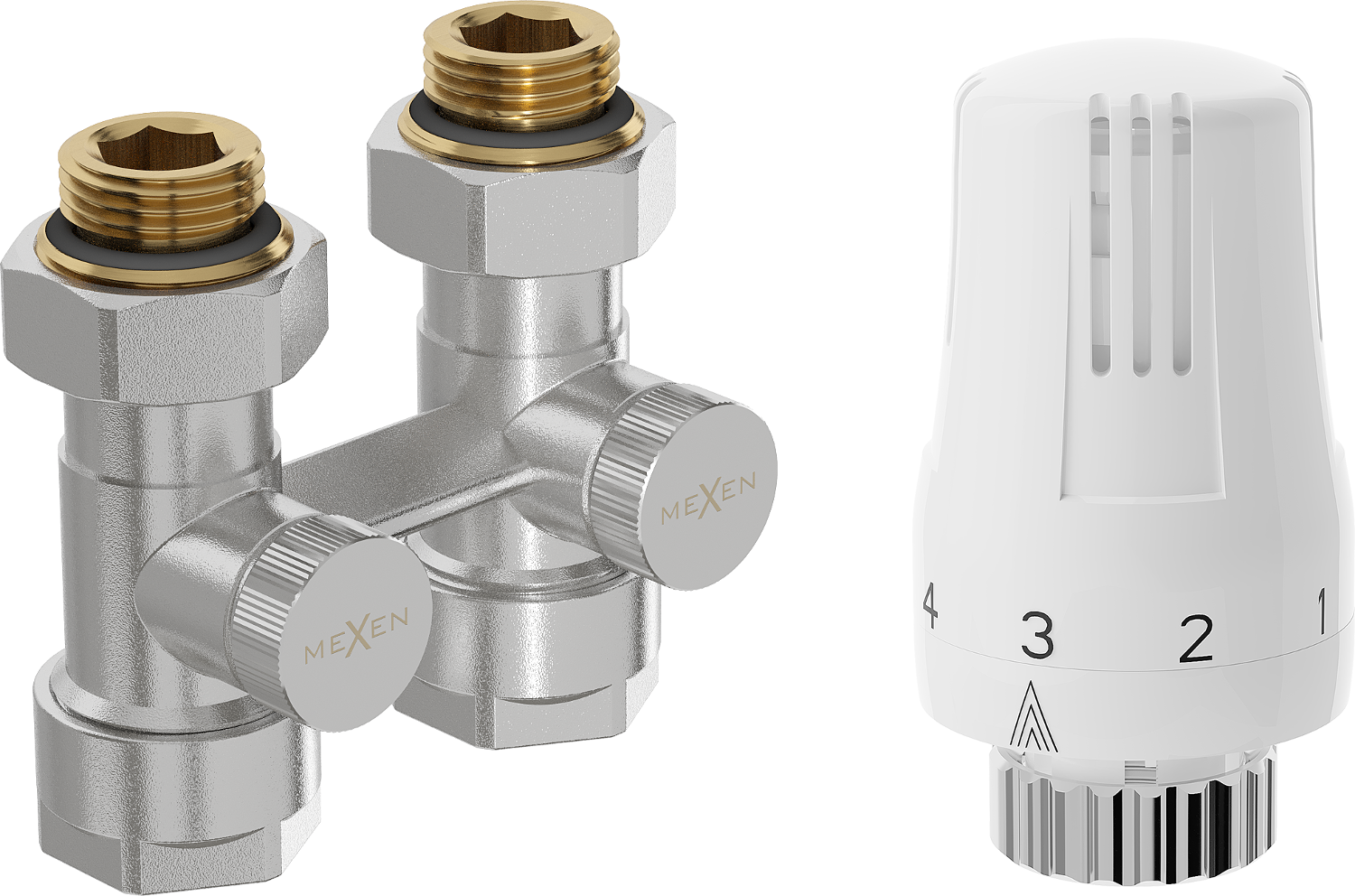

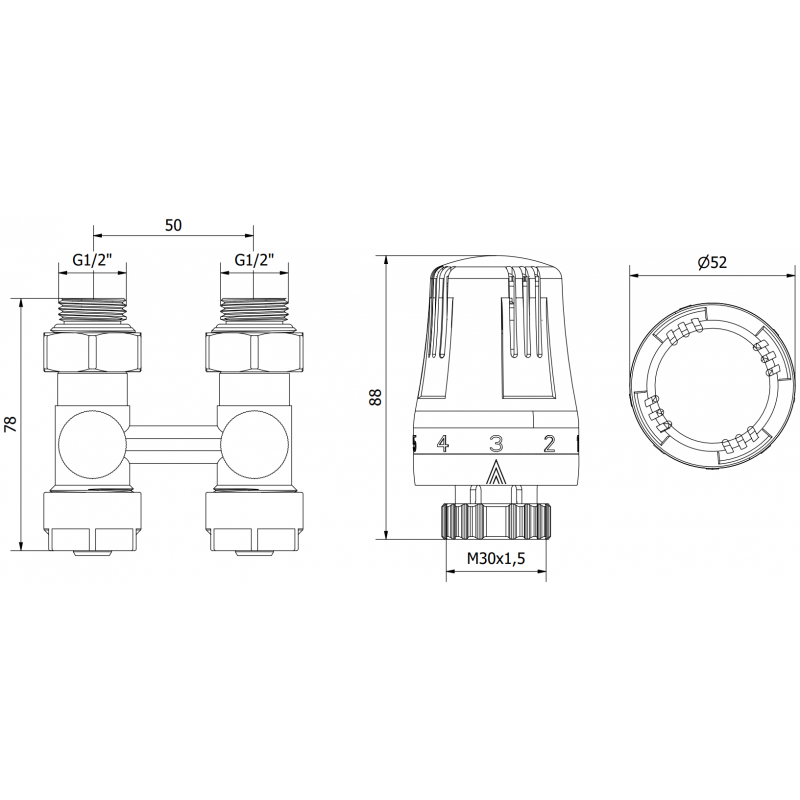

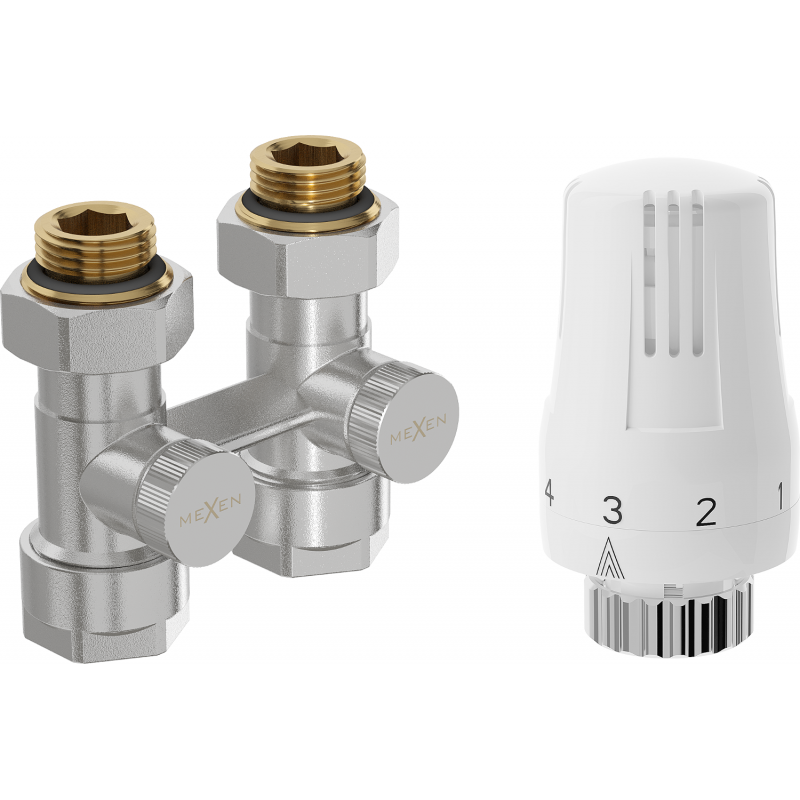

The Mexen G01 DN50 two-pipe thermostatic set is an excellent choice for those who value functionality and aesthetics. Made of brass, available in nickel colour. It features a connection diameter of G 1/2" and pex 16x2 mm, operates in temperatures up to 120°C and pressure up to 10 bar. Equipped with supply and shut-off valves, and a bottom connection with 50 mm spacing. White head with M30 x 1.5 mm thread, adjustment scale 0-5, anti-freeze protection 5°C.

Technical data:

Valve material: Brass

Valve colour: Nickel

Connection diameter: G 1/2" and pex 16x2 mm

Working temperature: max 120 °C

Maximum working pressure: 10 bar

Supply and shut-off radiator valve

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head colour: White

Adjustment scale: 0-5

Temperature regulation range: 0-29 °C

Ambient temperature: max 50 °C

Anti-freeze protection 5°C

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G01
Type
Straight
Colour
Nickel
Connection diameter
G 1/2"
Cover
No
User Manual
Download
Warranty conditions
Download
Manufacturer
See
