Mexen G01 DN50 Two-pipe Thermostatic Kit, Straight 1/2"x3/4", Nickel - W912-012-918-01

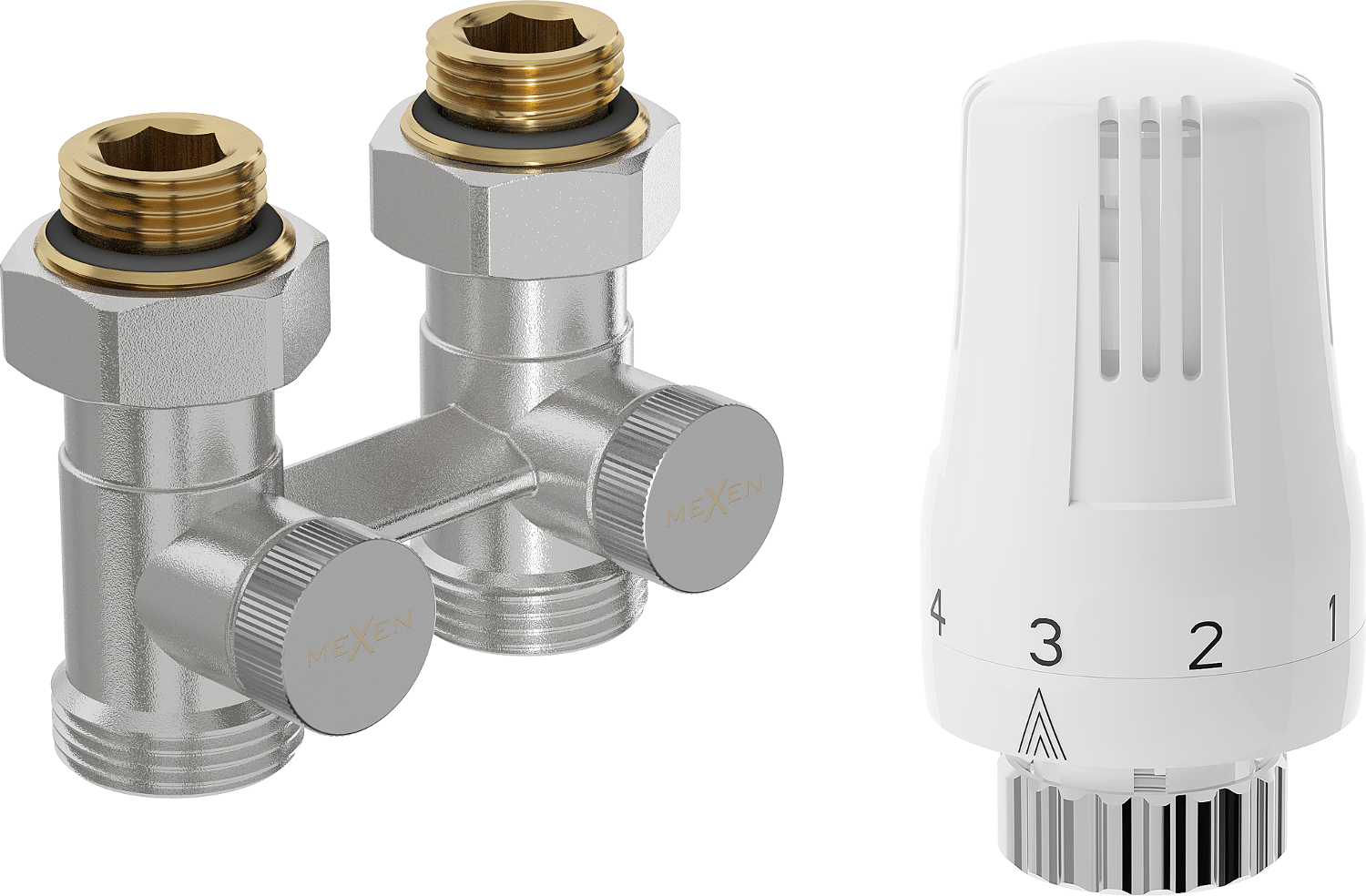

The Mexen G01 DN50 two-pipe thermostatic kit, straight 1/2"x3/4", nickel - is a versatile and reliable temperature control system. Made of brass and available in nickel colour, it ensures durability and aesthetics. It features valves with G 1/2" and G 3/4" connections, an adjustment scale of 0-5, and a temperature range of 0 to 29 °C. The set is characterized by high performance with a maximum operating temperature of up to 120 °C and an operating pressure of up to 10 bar. Ideal for precise heat management in your home.

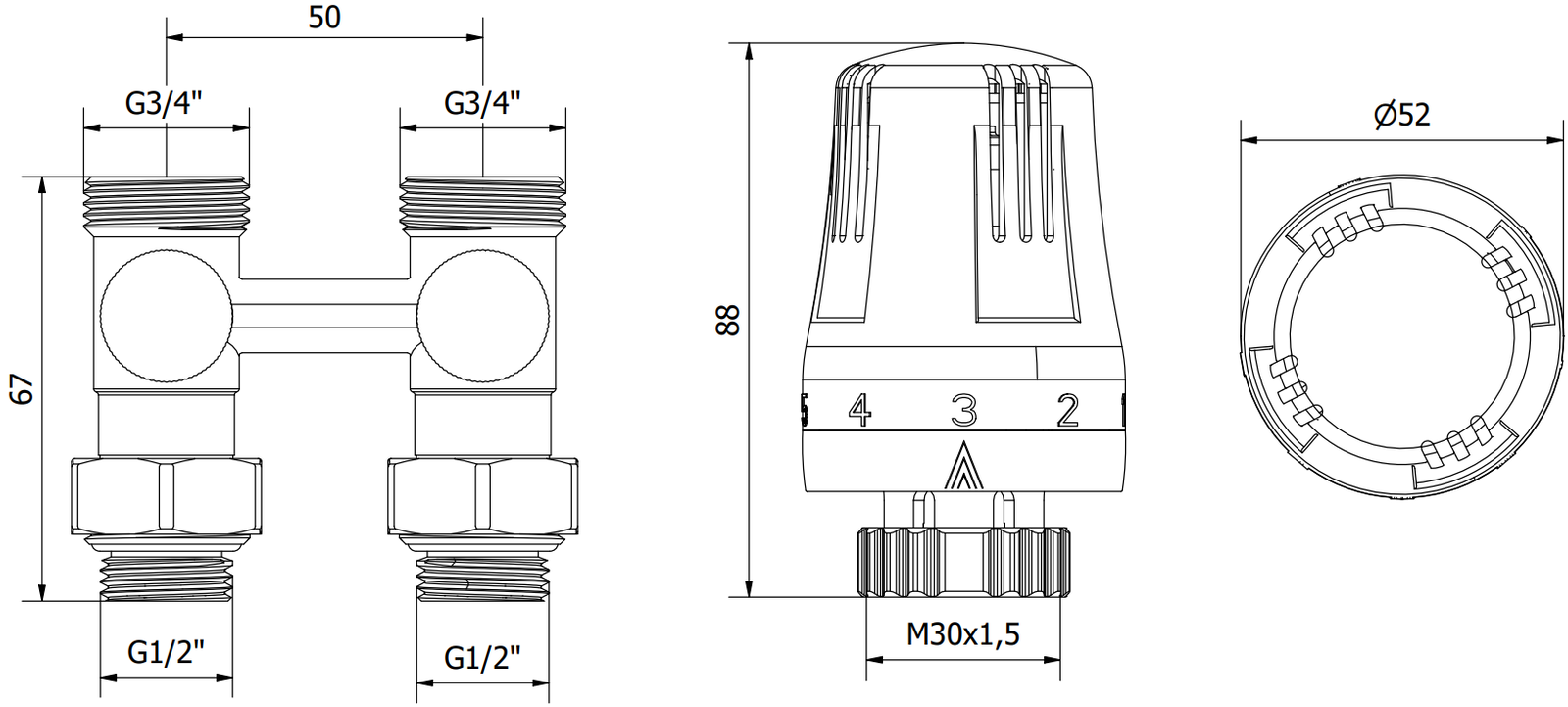

Technical data:

Valve material: Brass

Valve colour: Nickel

Valve connection diameter: G 1/2" and G 3/4"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Supply and shut-off radiator valve

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head colour: White

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G01
Type
Straight
Colour
Nickel
Connection diameter
G 1/2" , G 3/4"
Cover
No
User Manual
Download
Warranty conditions
Download
Manufacturer
See
