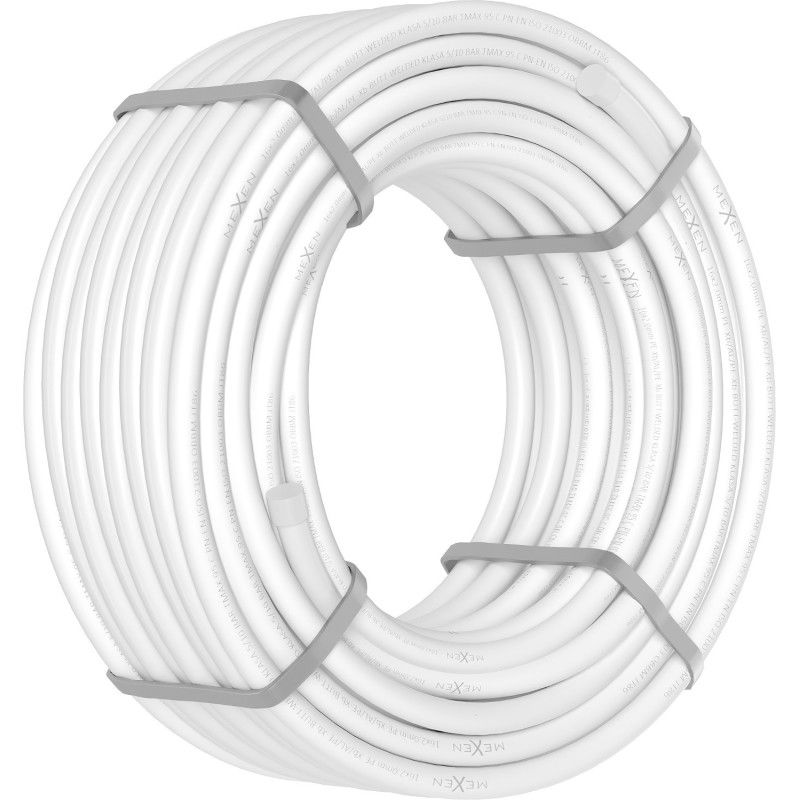

Mexen AL-O pipe PE-Xb/AL/PE 32 x 3 mm, 50 m - W97106-2632-50
(0)
Questions
(0)

Mexen AL-O pipe PE-Xb/AL/PE 32 x 3 mm, 50 m - W97106-2632-50

  • New
Mexen AL-O pipe PE-Xb/AL/PE 32 x 3 mm, 50 m - W97106-2632-50
search
  • Mexen AL-O pipe PE-Xb/AL/PE 32 x 3 mm, 50 m - W97106-2632-50
  • Mexen AL-O pipe PE-Xb/AL/PE 32 x 3 mm, 50 m - W97106-2632-50
  • Mexen AL-O pipe PE-Xb/AL/PE 32 x 3 mm, 50 m - W97106-2632-50
Mexen AL-O pipe PE-Xb/AL/PE 32 x 3 mm, 50 m - W97106-2632-50
Mexen AL-O pipe PE-Xb/AL/PE 32 x 3 mm, 50 m - W97106-2632-50 Mexen AL-O pipe PE-Xb/AL/PE 32 x 3 mm, 50 m - W97106-2632-50 Mexen AL-O pipe PE-Xb/AL/PE 32 x 3 mm, 50 m - W97106-2632-50
Brand:
Mexen
Seria:
AL-O
Ean:
5905315927613
Index:
W97106-2632-50
Length - 50 m - ()
50 m
100 m
200 m
600 m

Mexen AL-O pipe PE-Xb/AL/PE 32 x 3 mm, 50 m - W97106-2632-50

Technical data:

Length: 50 m

Outer diameter: 32 mm

Wall thickness: 3 mm

Intermediate layer thickness: 0.3 mm

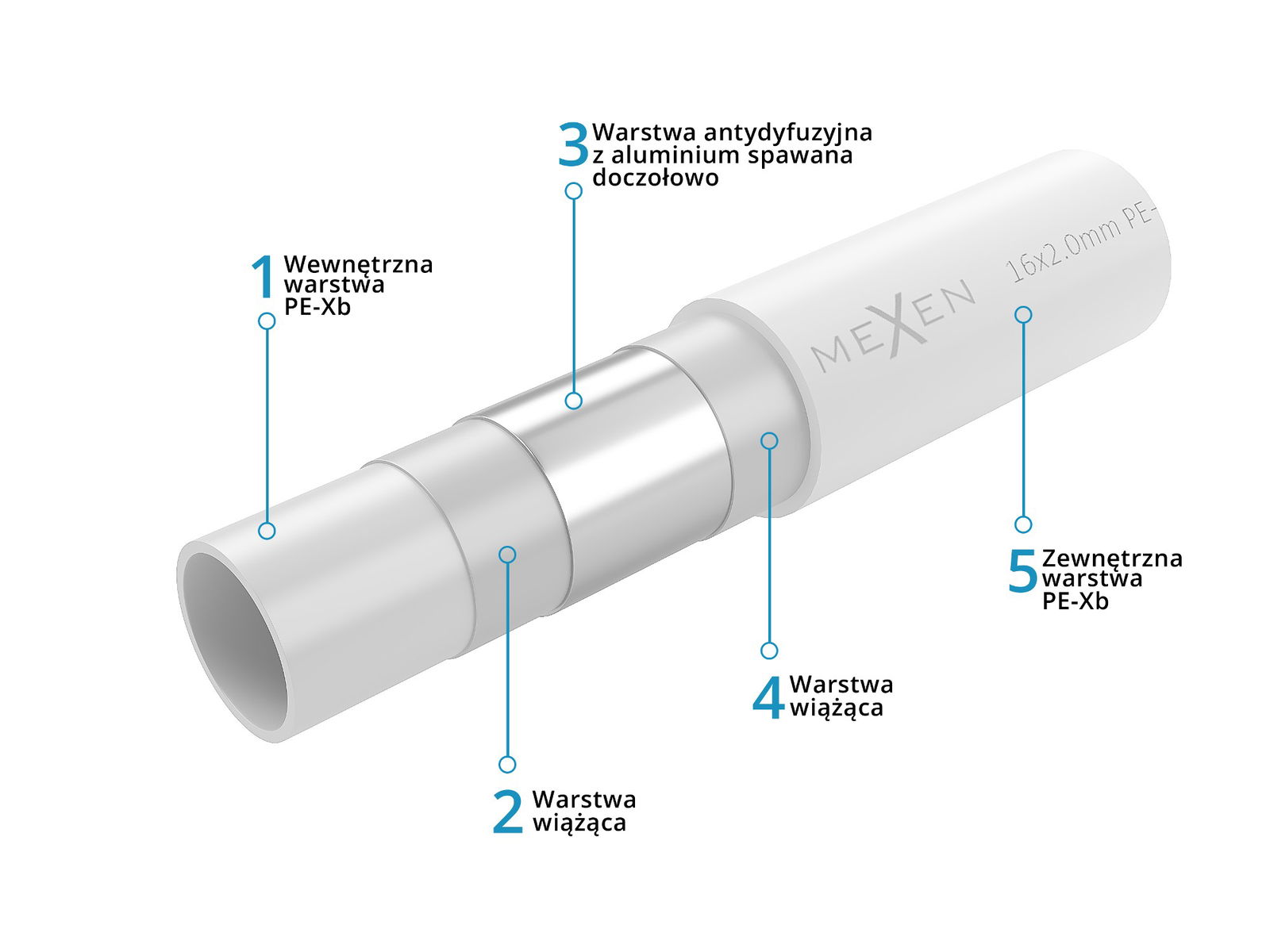

Number of layers: 5

Outer layer: Polyethylene

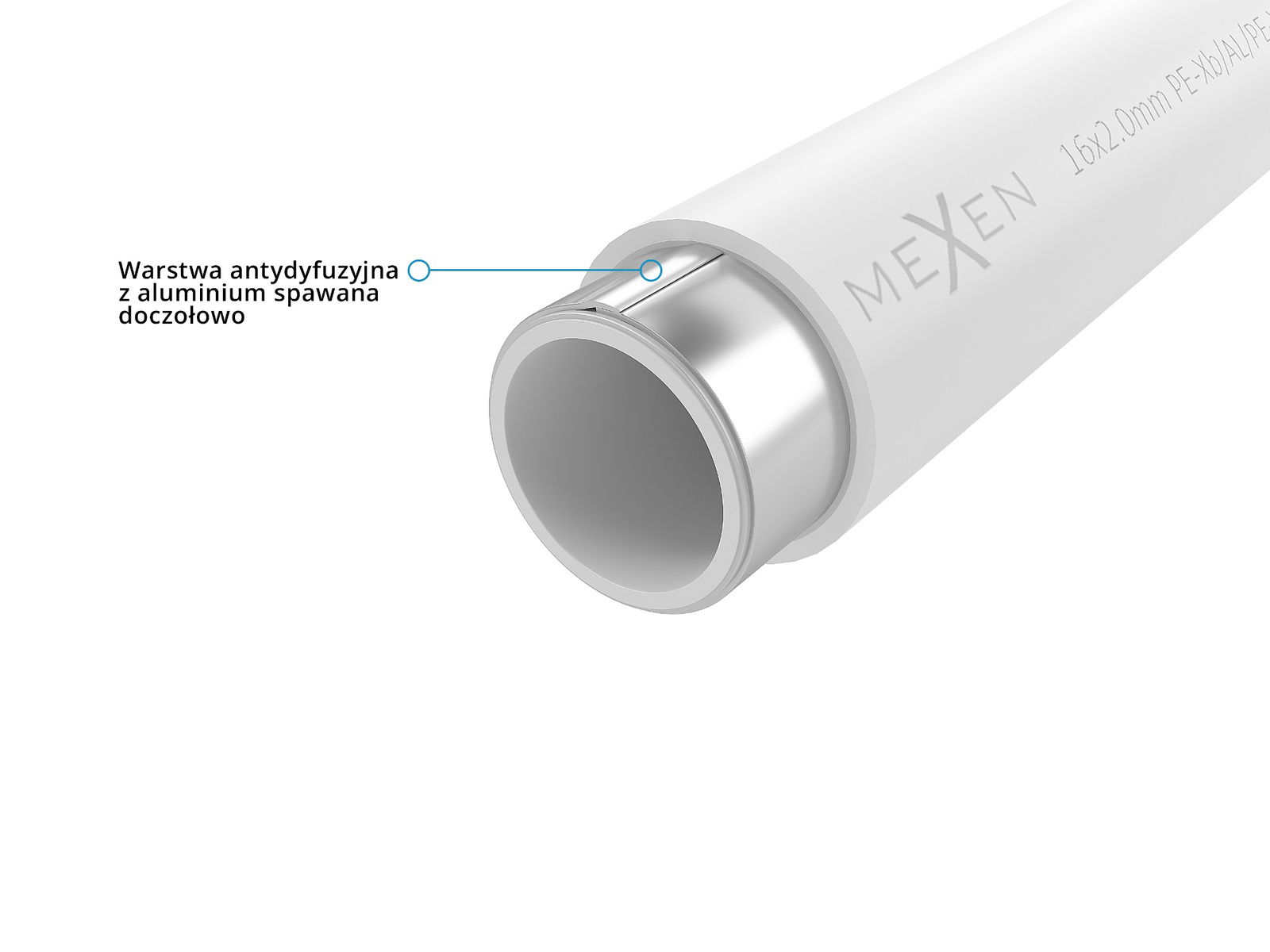

Intermediate layer: Aluminum

Inner layer: Cross-linked Polyethylene

Working temperature: max 95 °C

Maximum operating pressure at 20°C: 10 bar

Resistance to gas penetration and corrosion: 100% Anti-diffusion

Coefficient of linear expansion: 0.024mm/(m·K)

Thermal conductivity: 0.43 W/(m²K)

Reaction to fire: Class E

Minimum manual bending radius: 160 mm

Minimum bending radius with spring: 112 mm

Application:

- central heating

- underfloor heating

- cold and hot domestic water

Serial
AL-O
Length
50 m
Type
Rura
Download
Warranty terms
Download
Download
Manufacturer
See
