Mexen AL-O PE-Xb/AL/PE pipe 20 x 2 mm, 100 m - W97106-1620-100

Multirabaty EN

Multirabaty EN

Mexen AL-O PE-Xb/AL/PE pipe 20 x 2 mm, 100 m - W97106-1620-100

  • Mega Discounts
Mexen AL-O PE-Xb/AL/PE pipe 20 x 2 mm, 100 m - W97106-1620-100
search
  • Mexen AL-O PE-Xb/AL/PE pipe 20 x 2 mm, 100 m - W97106-1620-100
  • Mexen AL-O PE-Xb/AL/PE pipe 20 x 2 mm, 100 m - W97106-1620-100
  • Mexen AL-O PE-Xb/AL/PE pipe 20 x 2 mm, 100 m - W97106-1620-100
Mexen AL-O PE-Xb/AL/PE pipe 20 x 2 mm, 100 m - W97106-1620-100
Mexen AL-O PE-Xb/AL/PE pipe 20 x 2 mm, 100 m - W97106-1620-100 Mexen AL-O PE-Xb/AL/PE pipe 20 x 2 mm, 100 m - W97106-1620-100 Mexen AL-O PE-Xb/AL/PE pipe 20 x 2 mm, 100 m - W97106-1620-100
100% Anti-Diffusion 100% Anti-Diffusion
Versatile application Versatile application
Resistance to high temperature Resistance to high temperature
Brand:
Mexen
Series:
AL-O
Ean:
5905315927590
Index:
W97106-1620-100
Type:
Pipe
Length:
100 m
Diameter:
20 mm
Length - 100 m - ()
50 m
100 m
200 m
600 m
Diameter - 20 mm - ()
16 mm
20 mm
25 mm
32 mm

Mexen AL-O PE-Xb/AL/PE pipe 20 x 2 mm, 100 m - W97106-1620-100

Technical Data:

Length: 100 m

External diameter: 20 mm

Wall thickness: 2 mm

Intermediate layer thickness: 0.23 mm

Number of layers: 5

External layer: Polyethylene

Intermediate layer: Aluminium

Inner layer: Crosslinked Polyethylene

Operating temperature: max 95 °C

Maximum operating pressure at 20°C: 10 bar

Resistance to gas penetration and corrosion: Anti-diffusion 100%

Linear expansion coefficient: 0.024mm/(m·K)

Thermal conductivity: 0.43 W/(m²K)

Fire reaction: Class E

Minimum manual bending radius: 100 mm

Minimum bending radius with spring: 70 mm

Application:

- central heating

- underfloor heating

- cold and hot domestic water

Innovative solutions used in this product

100% Anti-Diffusion

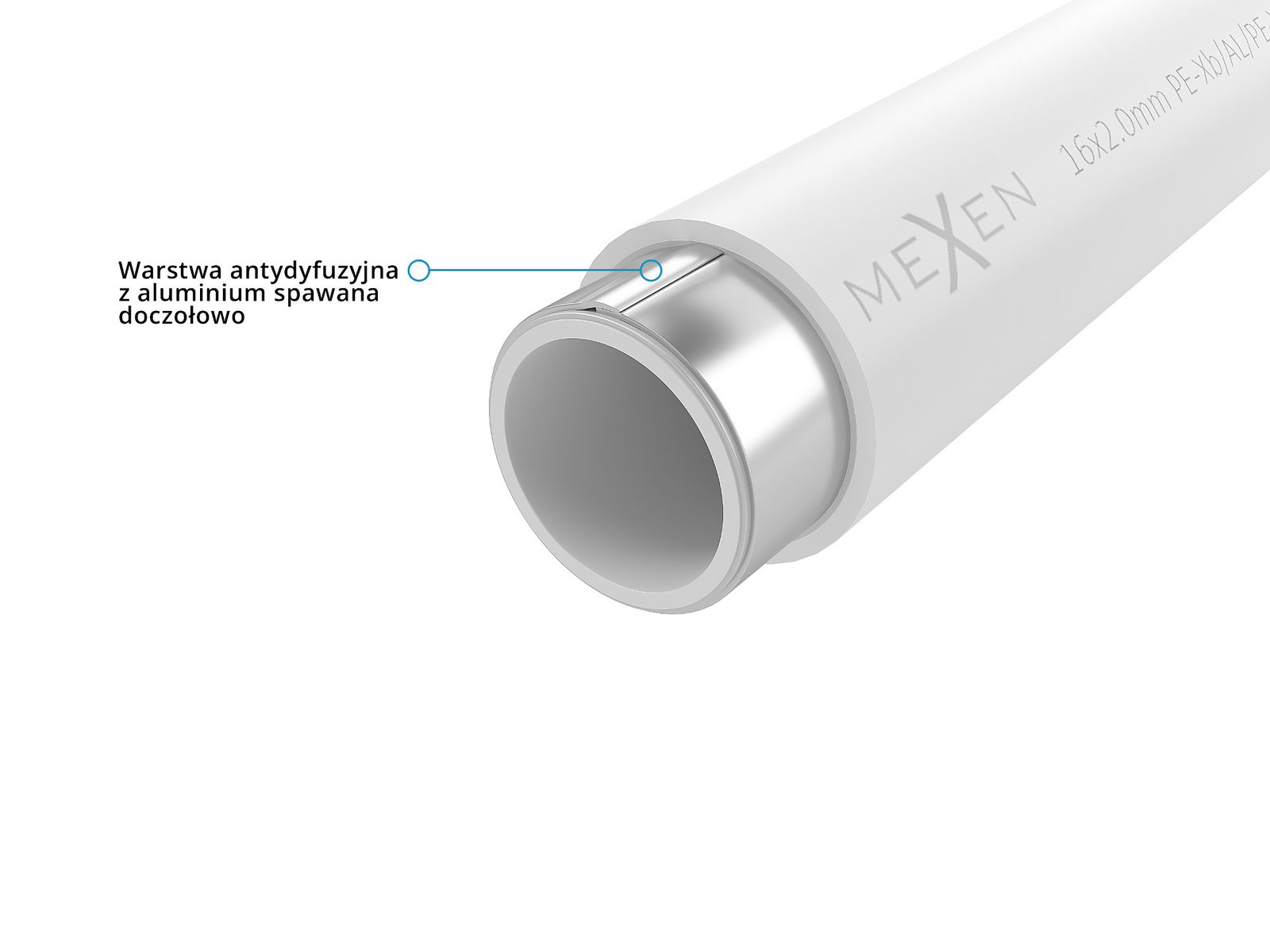

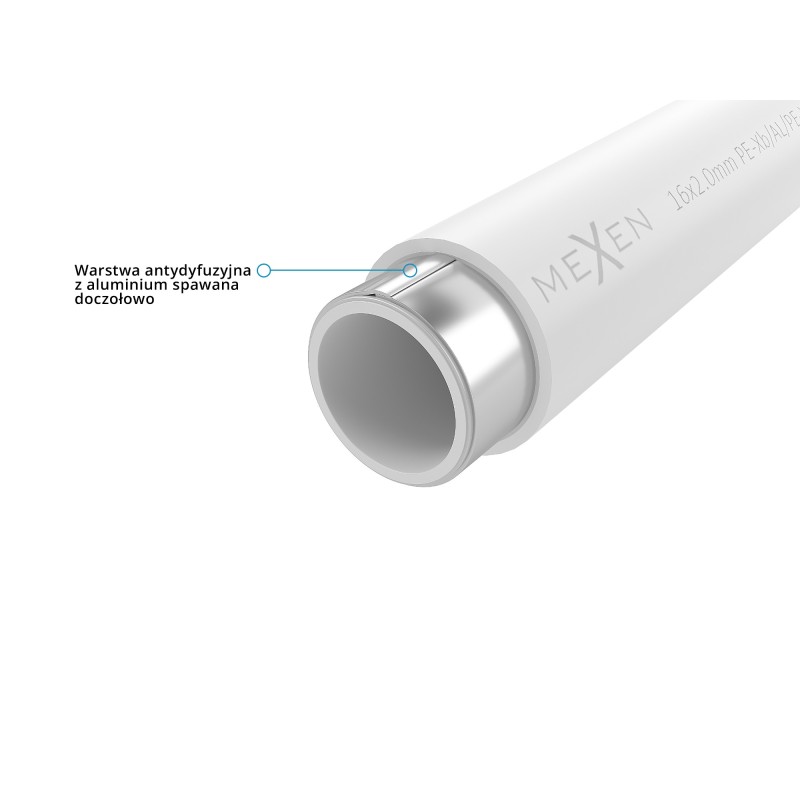

The pipe features a special layer that blocks the penetration of oxygen into the interior of the installation. This prevents corrosion of metal components in the heating system, such as radiators or heat exchangers. Such a pipe is particularly recommended for central heating and underfloor heating installations.

Versatile application

The product is used in water supply installations for transporting cold and hot drinking water, as well as in central heating systems. They are also used in industrial installations for transporting chemically aggressive liquids and in air conditioning systems.

Resistance to high temperature

The product is characterised by extraordinary resistance to high temperatures, not deforming even with prolonged exposure to hot water. The material is also resistant to damage and cracks caused by sudden temperature changes.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

PZH Hygiene Certificate

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - indicating that it does not adversely affect human health or the natural environment in any way. nr B.BK.60110.1252.2024 valid until 31.03.2028

Series
AL-O
Length
100 m
Diameter
20 mm
Type
Pipe
Safety information
Download
Warranty conditions
Download
PZH Certificate
Download
Manufacturer
See
