Mexen AL-O PE-Xb/AL/PE Pipe 16 x 2 mm, 200 m - W97106-1216-200

Black Week EN

Black Week EN

(0)
Questions
(0)

Mexen AL-O PE-Xb/AL/PE Pipe 16 x 2 mm, 200 m - W97106-1216-200

  • Mexen in Black
Mexen AL-O PE-Xb/AL/PE Pipe 16 x 2 mm, 200 m - W97106-1216-200
search
  • Mexen AL-O PE-Xb/AL/PE Pipe 16 x 2 mm, 200 m - W97106-1216-200
  • Mexen AL-O PE-Xb/AL/PE Pipe 16 x 2 mm, 200 m - W97106-1216-200
  • Mexen AL-O PE-Xb/AL/PE Pipe 16 x 2 mm, 200 m - W97106-1216-200
Mexen AL-O PE-Xb/AL/PE Pipe 16 x 2 mm, 200 m - W97106-1216-200
Mexen AL-O PE-Xb/AL/PE Pipe 16 x 2 mm, 200 m - W97106-1216-200 Mexen AL-O PE-Xb/AL/PE Pipe 16 x 2 mm, 200 m - W97106-1216-200 Mexen AL-O PE-Xb/AL/PE Pipe 16 x 2 mm, 200 m - W97106-1216-200
100% Anti-Diffusion 100% Anti-Diffusion
Versatile application Versatile application
Resistance to high temperature Resistance to high temperature
Brand:
Mexen
Seria:
AL-O
Ean:
5905315927576
Index:
W97106-1216-200
Length:
200 m
Type:
Pipe
Diameter:
16 mm
Length - 200 m - ()
50 m
100 m
200 m
600 m
Diameter - 16 mm - ()
16 mm
20 mm
25 mm
32 mm

Mexen AL-O PE-Xb/AL/PE Pipe 16 x 2 mm, 200 m - W97106-1216-200

Technical Specifications:

Length: 200 m

Outer Diameter: 16 mm

Wall Thickness: 2 mm

Intermediate Layer Thickness: 0.21 mm

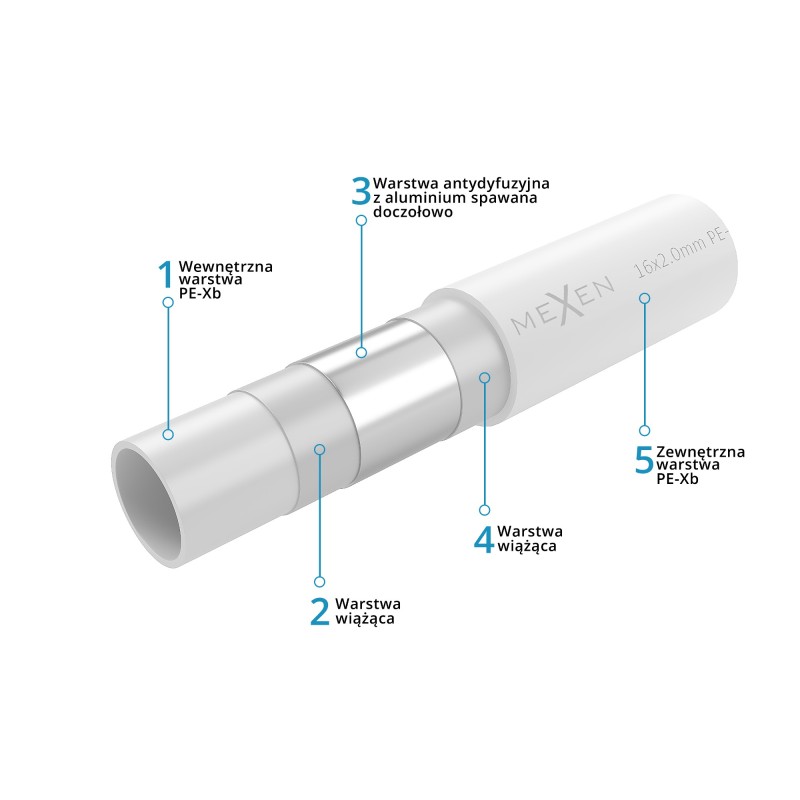

Number of Layers: 5

Outer Layer: Polyethylene

Intermediate Layer: Aluminium

Inner Layer: Crosslinked Polyethylene

Operating Temperature: max 95 °C

Maximum Operating Pressure at 20°C: 10 bar

Resistance to Gas Permeation and Corrosion: Anti-diffusivity 100%

Coefficient of Linear Expansion: 0.024mm/(m·K)

Thermal Conductivity: 0.43 W/(m²K)

Fire Reaction: Class E

Minimum Manual Bending Radius: 80 mm

Minimum Bending Radius Using Spring: 56 mm

Application:

- Central Heating

- Underfloor Heating

- Cold and Hot Utility Water

Innovative solutions used in this product

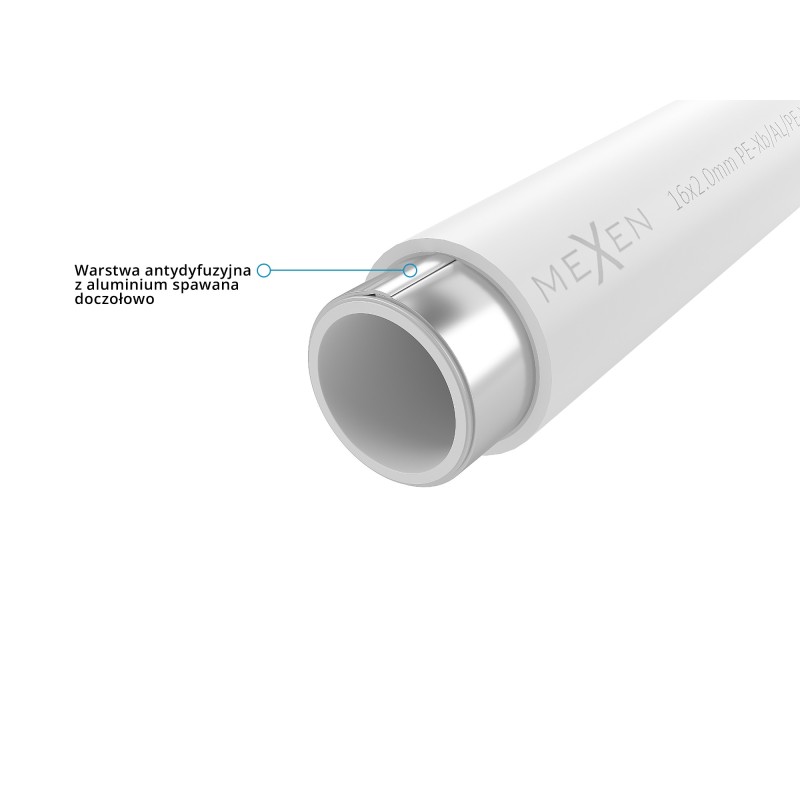

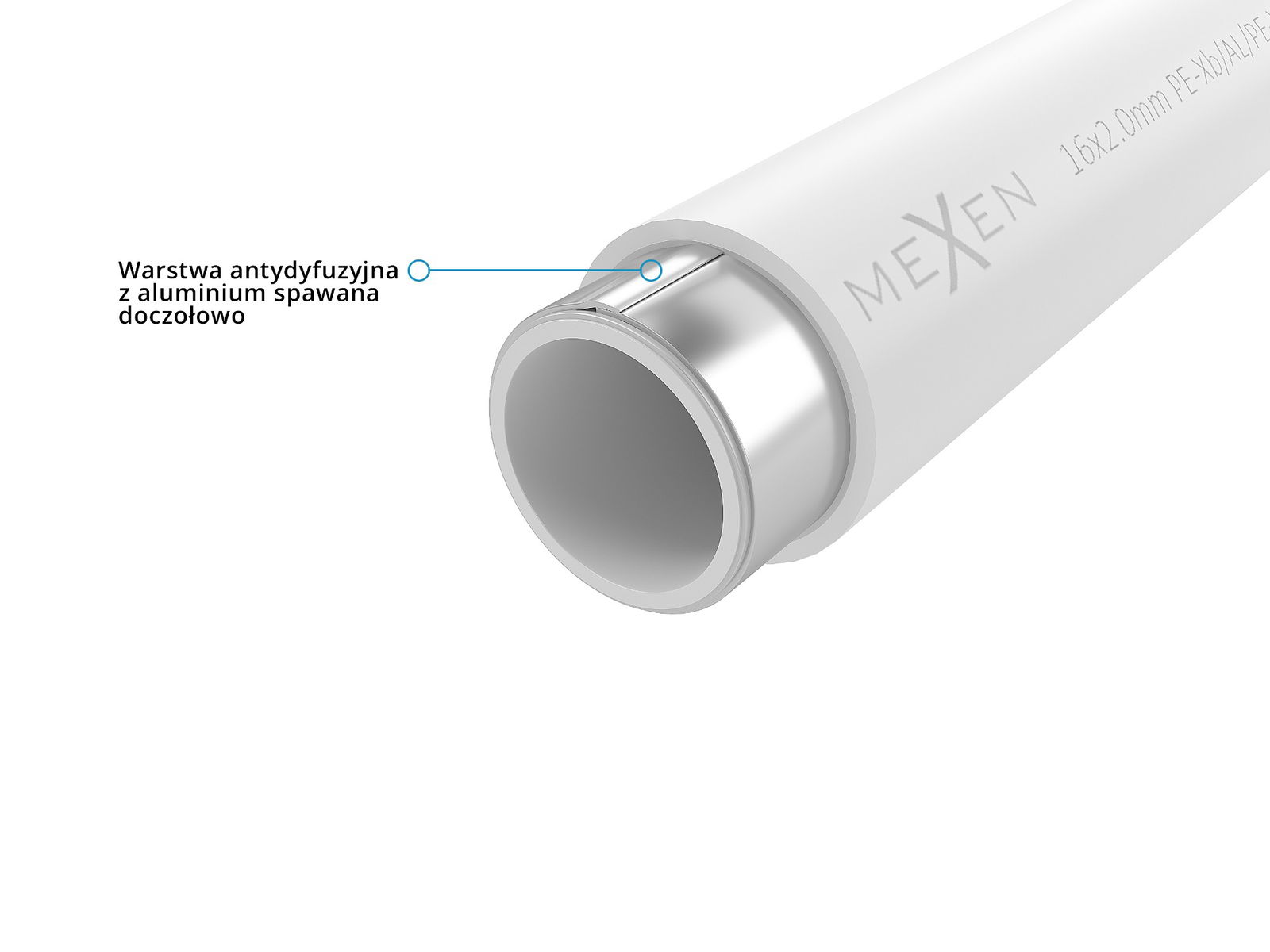

100% Anti-Diffusion

The pipe features a special layer that blocks the penetration of oxygen into the interior of the installation. This prevents corrosion of metal components in the heating system, such as radiators or heat exchangers. Such a pipe is particularly recommended for central heating and underfloor heating installations.

Versatile application

The product is used in water supply installations for transporting cold and hot drinking water, as well as in central heating systems. They are also used in industrial installations for transporting chemically aggressive liquids and in air conditioning systems.

Resistance to high temperature

The product is characterised by extraordinary resistance to high temperatures, not deforming even with prolonged exposure to hot water. The material is also resistant to damage and cracks caused by sudden temperature changes.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

PZH Hygiene Certificate

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - indicating that it does not adversely affect human health or the natural environment in any way. nr B.BK.60110.1252.2024 valid until 31.03.2028

Serial
AL-O
Length
200 m
Type
Pipe
Diameter
16 mm
Safety information
Download
Warranty conditions
Download
PZH Certificate
Download
Manufacturer
See
