Mexen AL-O pipe PE-RT/AL/PE-RT 16 x 2 mm, 200 m - W97107-1216-200

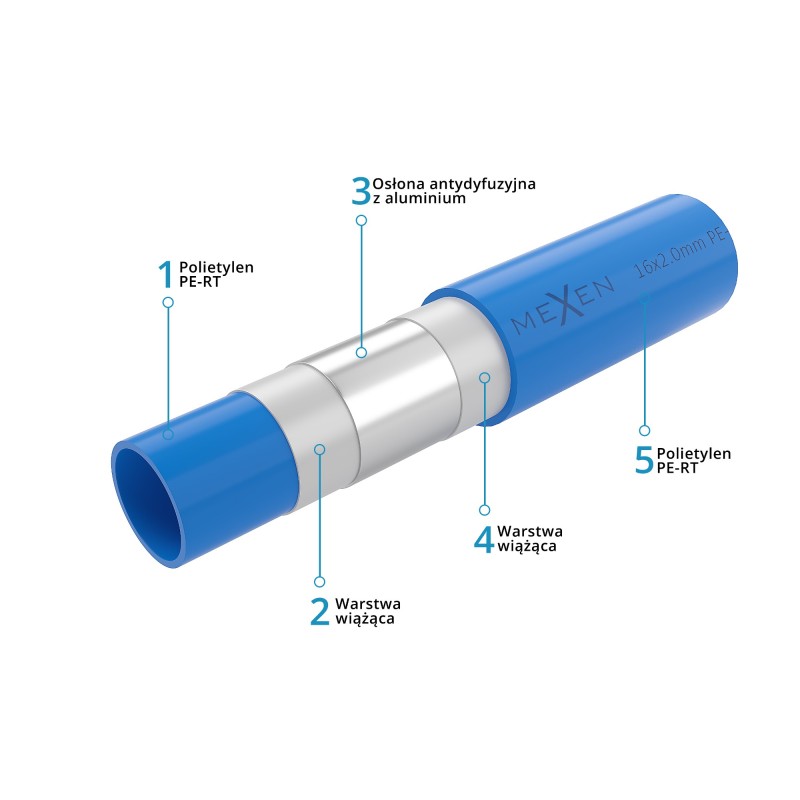

Mexen AL-O pipe PE-RT/AL/PE-RT 16 x 2 mm is an excellent choice for use in central heating, underfloor heating systems, and for transporting cold and hot utility water. With a length of 200 m and an outer diameter of 16 mm, it ensures efficiency and versatility. A wall thickness of 2 mm and an aluminum layer of 0.21 mm provide reliability and resistance to high pressure up to 10 bar. Mexen stands out for full anti-diffusion and a low expansion coefficient. Thermal conductivity at 0.43 W/(m²K) makes it ideal for long-term use.

Technical data:

Length: 200 m

Outer diameter: 16 mm

Wall thickness: 2 mm

Intermediate layer thickness: 0.21 mm

Outer layer: Polyethylene with increased thermal resistance

Inner layer: Polyethylene with increased thermal resistance

Maximum operating pressure at 20°C: 10 bar

Resistance to gas permeability and corrosion: 100% anti-diffusion

Linear expansion coefficient: 0.024mm/(m⋅K)

Thermal conductivity: 0.43 W/(m²K)

Reaction to fire: Class E

Minimum hand bending radius: 80 mm

Minimum bending radius with spring: 56 mm

Application:

- central heating

- underfloor heating

- cold and hot utility water

Innovative solutions used in this product

100% Anti-Diffusion

The pipe features a special layer that blocks the penetration of oxygen into the interior of the installation. This prevents corrosion of metal components in the heating system, such as radiators or heat exchangers. Such a pipe is particularly recommended for central heating and underfloor heating installations.

Versatile application

The product is used in water supply installations for transporting cold and hot drinking water, as well as in central heating systems. They are also used in industrial installations for transporting chemically aggressive liquids and in air conditioning systems.

Resistance to high temperature

The product is characterised by extraordinary resistance to high temperatures, not deforming even with prolonged exposure to hot water. The material is also resistant to damage and cracks caused by sudden temperature changes.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

PZH Hygiene Certificate

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - indicating that it does not adversely affect human health or the natural environment in any way. nr B.BK.60110.1252.2024 valid until 31.03.2028

Series
AL-O
Length
200 m
Diameter
16 mm
Type
Pipe
