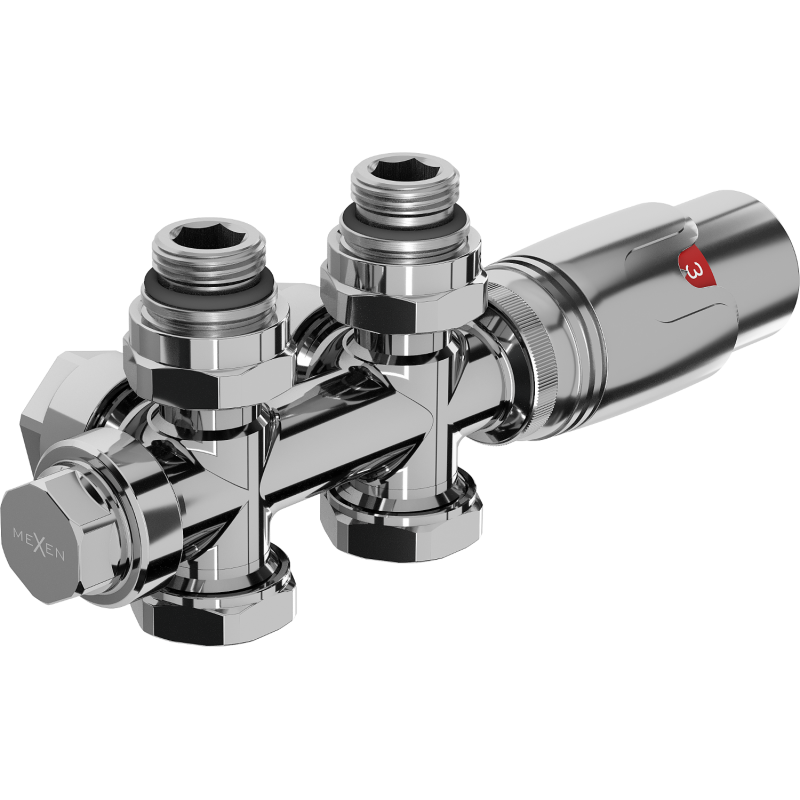

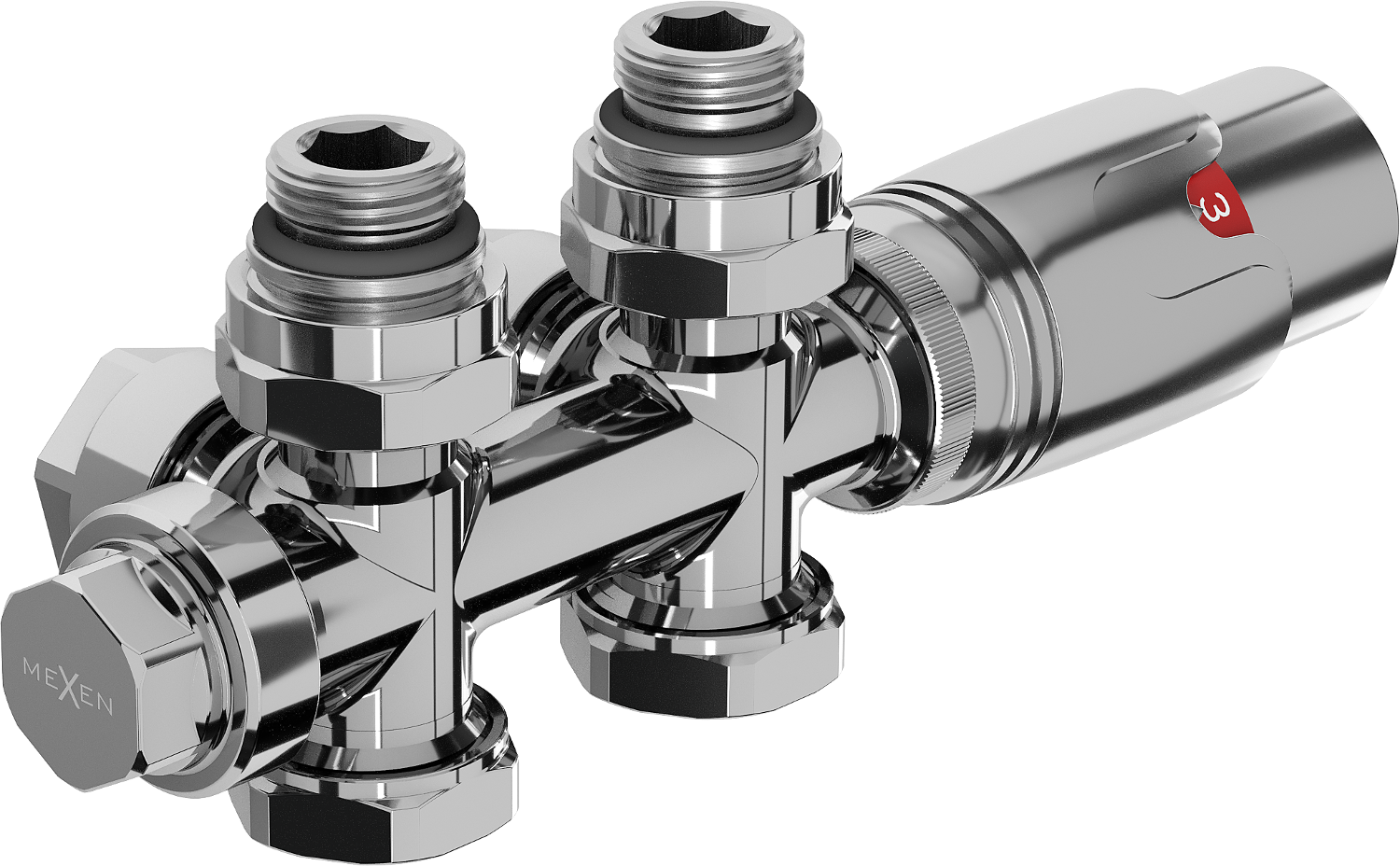

Mexen G00 thermostat set angular/straight, Duplex, DN50, chrome - W908-900-01

Mexen G00 thermostat set angular/straight, Duplex, DN50, chrome - W908-900-01
Mexen G00 thermostat set angular/straight, Duplex, DN50, chrome - W908-900-01
Product features
Brand: Mexen
Series: G00
Ean: 5905315236821
Index: W908-900-01
Color: Chrome
Connector diameter: G 1/2"
Type: Simple
Type: Corner
Select variant
Description

Mexen G00 thermostat set angular/straight, Duplex, DN50, chrome - W908-900-01

Technical data:

Valve material: Brass

Valve color: Chrome

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

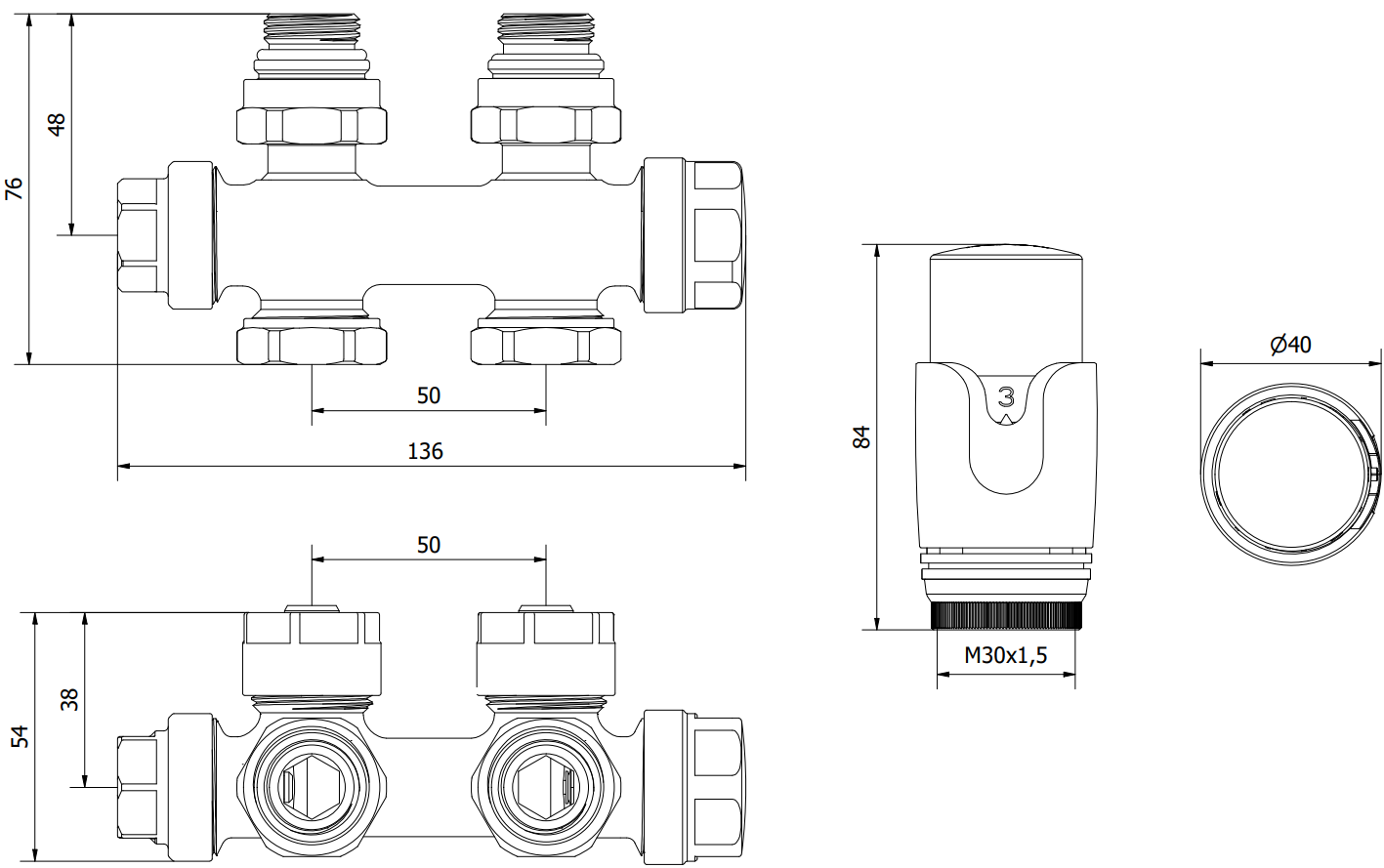

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head color: Chrome

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Anti-freeze protection 5°C

Possibility of connecting the head from the left or right side of the valve

Included additional fittings for multi-layer pipes 16x2 mm and fittings for copper pipes 15 mm

Universal supply and shut-off valve for angular and straight connections, regardless of whether the connection is in the wall or in the floor

Feature tab
Series
G00
Type
Simple , Corner
Color
Chrome
Connector diameter
G 1/2"
Cover
No
