Mexen G00 angled/straight thermostatic set, Duplex, DN50, white - W908-900-20
Mexen G00 angled/straight thermostatic set, Duplex, DN50, white - W908-900-20 Mexen G00 angled/straight thermostatic set, Duplex, DN50, white - W908-900-20 Mexen G00 angled/straight thermostatic set, Duplex, DN50, white - W908-900-20
Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Mexen
Series:
G00
Ean:
5905315236838
Index:
W908-900-20
Type:
Straight, Angular
Series:
G00
Color:
White
Connection diameter:
G 1/2"
Color - White - ()

Mexen G00 angled/straight thermostatic set, Duplex, DN50, white - W908-900-20

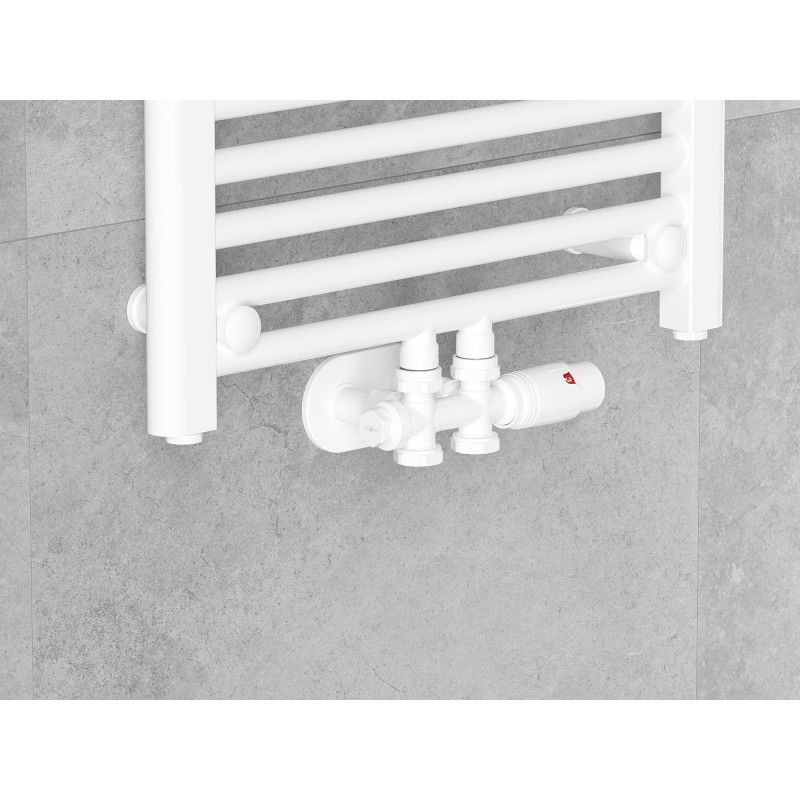

The Mexen G00 thermostatic set offers versatility for use in both angled and straight systems, regardless of connection placement. Made of brass in a white colour, it ensures durability and aesthetic compatibility. With a maximum working temperature of 120 °C and pressure of 10 bar, the set guarantees reliable operation. Temperature regulation from 0-29 °C and frost protection down to 5 °C further enhance the product's functionality.

Technical data:

Valve material: Brass

Valve colour: White

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum working pressure: 10 bar

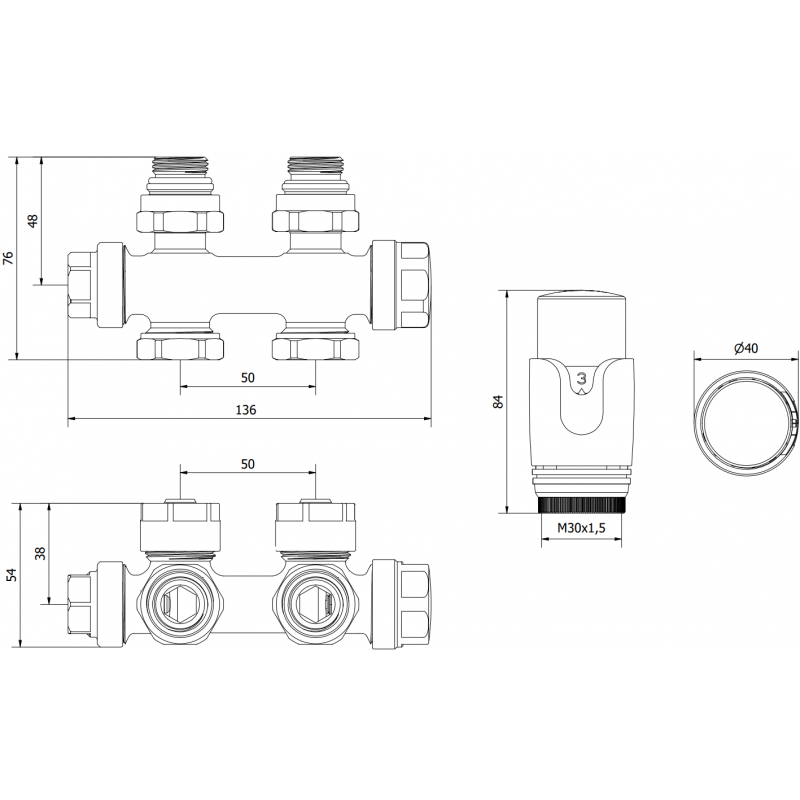

Lower connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head colour: White

Regulation scale: 0-5

Temperature regulation range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection at 5°C

Possibility to connect the head from the left or right side of the valve

The set includes additional fittings for multilayer pipes 16x2 mm and fittings for copper pipes 15 mm

Universal supply and cut-off valve for angled and straight connections, regardless of whether the connection is in the wall or on the floor

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the operating pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe functioning in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
G00
Type
Straight , Angular
Color
White
Connection diameter
G 1/2"
Cover
No
User manual - radiator valve
Download
User manual - thermostatic head
Download
Safety Information - Radiator Valve
Download
Safety information - thermostatic head
Download
Warranty conditions
Download
