Mexen G00 thermoset angled/straight, Duplex, DN50, gold - W908-900-50

Mexen G00 angled/straight thermoset, Duplex, DN50, gold, offers exceptional functionality and durability. Made of brass with an elegant gold finish, the set is adapted to various types of connections. It features a maximum working pressure of 10 bars and a temperature regulation range from 0 to 29°C. Includes connectors for multi-layer and copper pipes, as well as universal approaches for wall or floor installation. An ideal choice for modern and stylish heating installations.

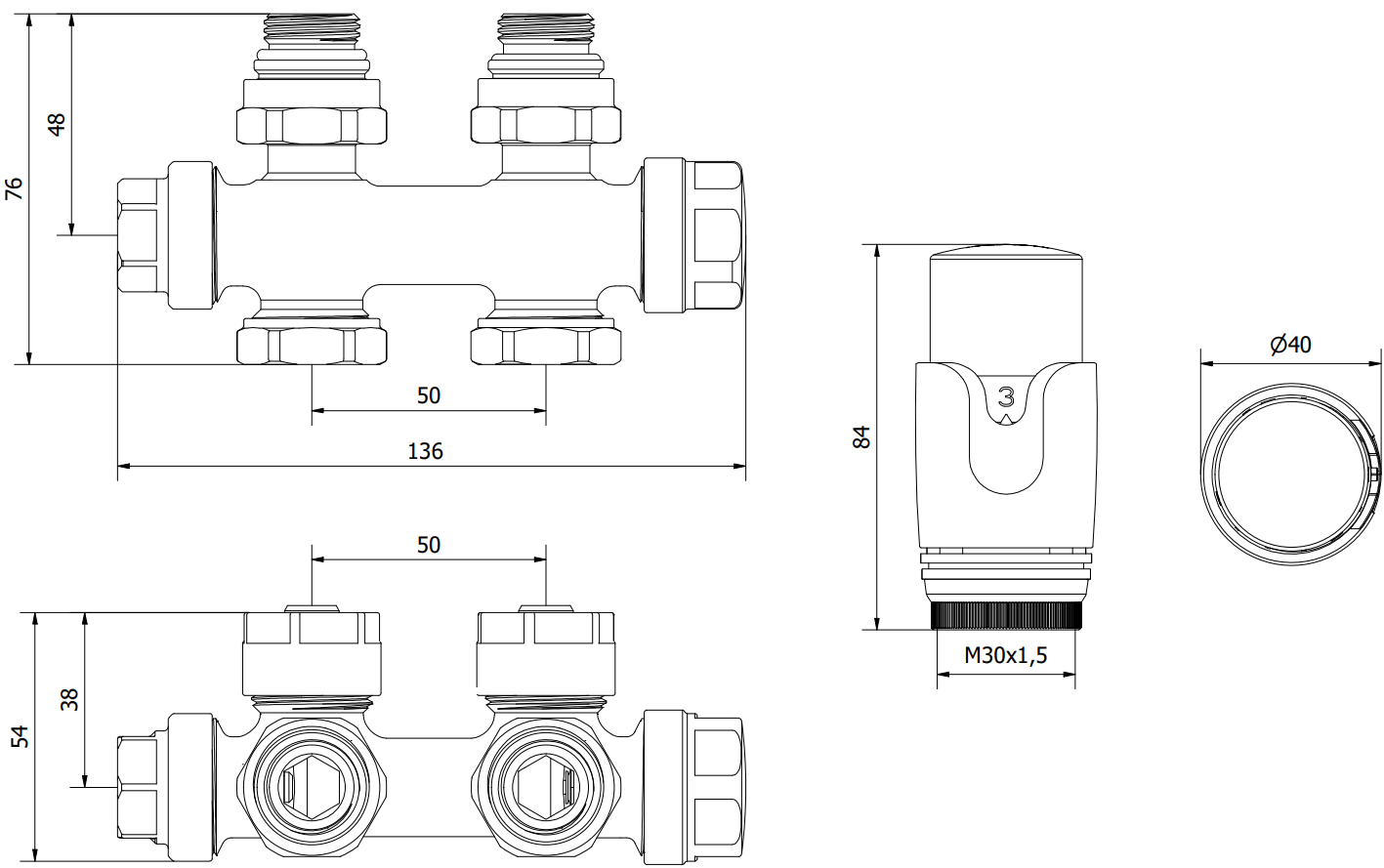

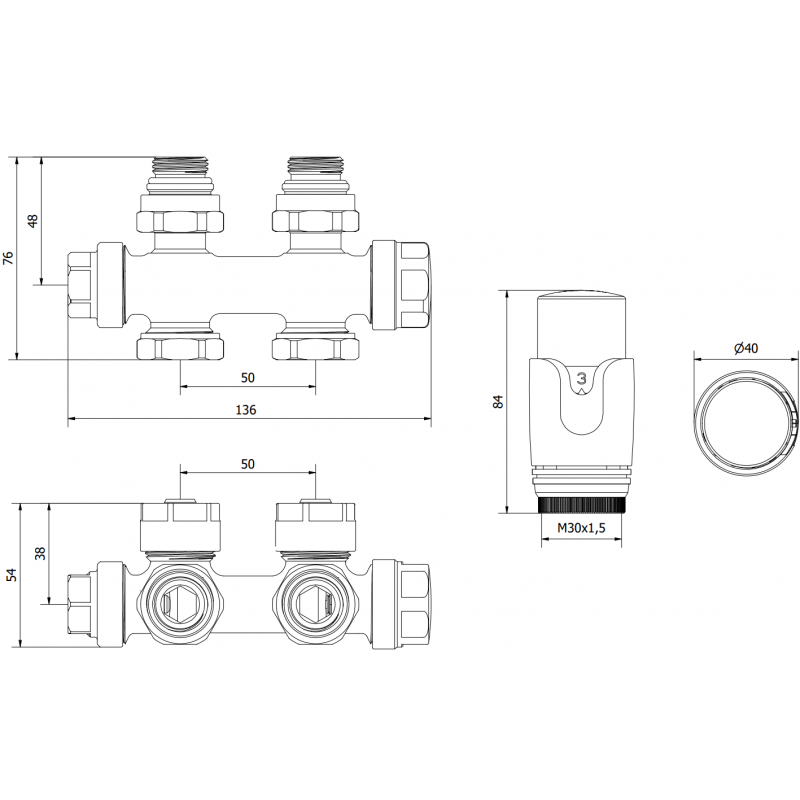

Technical data:

Valve material: Brass

Valve colour: Gold

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Bottom connection spacing: 50 mm

Head thread: M30 x 1.5 mm

Head colour: Gold

Regulation scale: 0-5

Temperature regulation range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5 °C

Possibility of connecting the head from the left or right side of the valve

The package includes additional connectors for 16x2 mm multi-layer pipes and connectors for 15 mm copper pipes

Universal supply and cut-off valve for angled and straight connections, regardless of whether the connection is in the wall or the floor

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G00
Type
Straight , Angular
Colour
Gold
Connection diameter
G 1/2"
Cover
No
