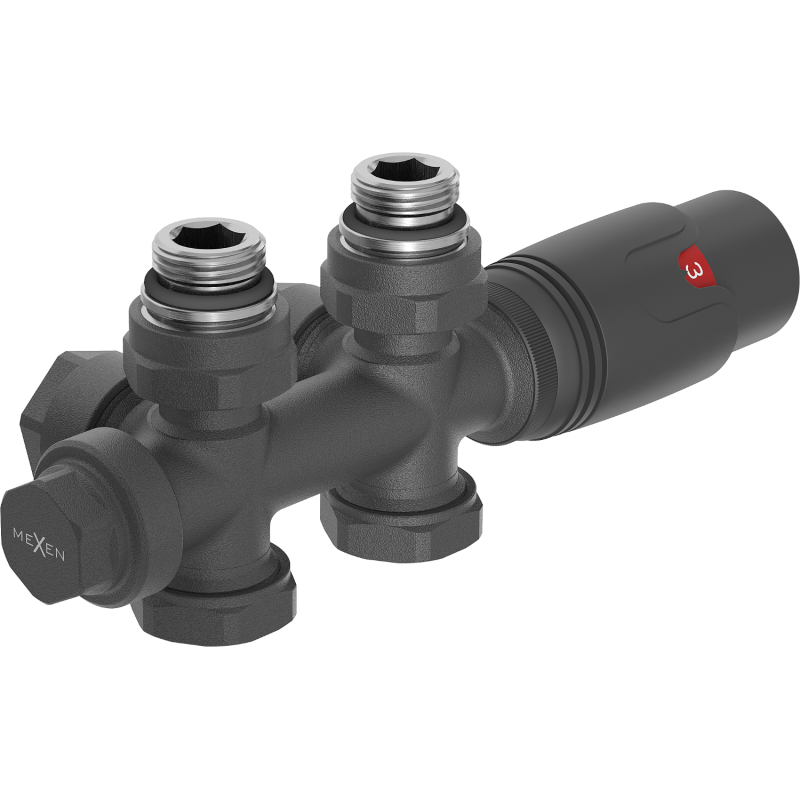

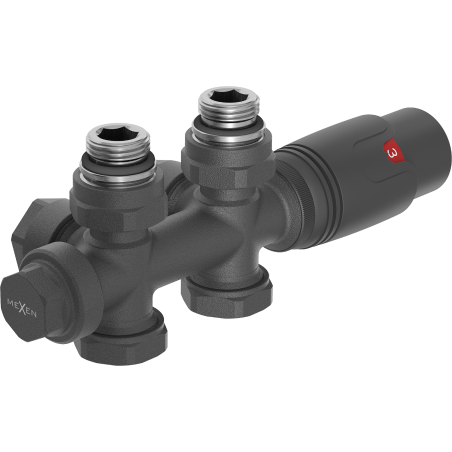

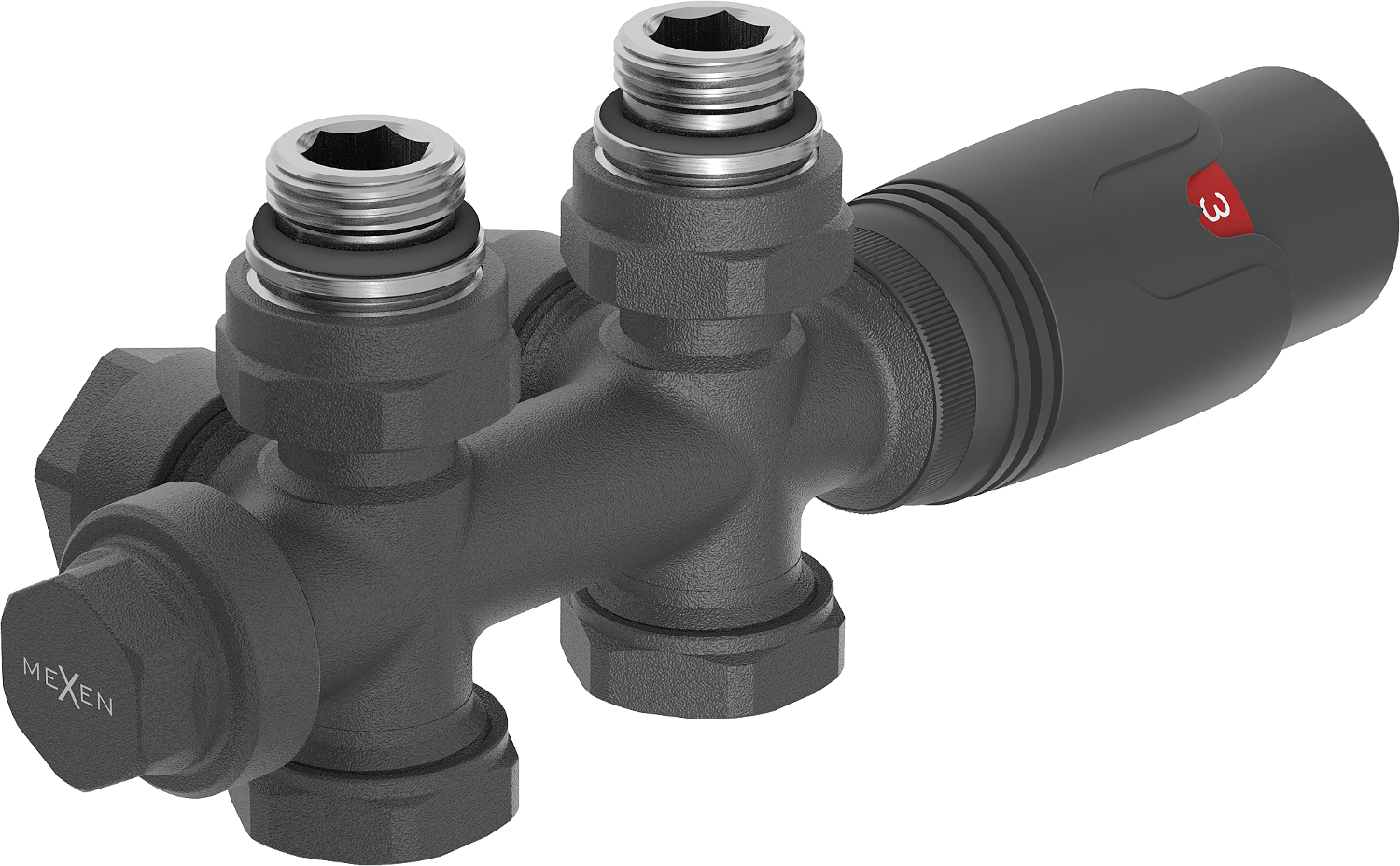

Mexen G00 angular/straight thermostatic set, Duplex, DN50, anthracite - W908-900-66

The Mexen G00 angular/straight thermostatic set, Duplex, DN50, anthracite offers a range of benefits: made from brass for durability, with an anthracite colour that adds elegance. It allows operation at temperatures up to 120°C and pressures up to 10 bar. Its versatility, thanks to the possibility of connecting in different configurations and compatibility with multilayer and copper pipes, makes it a comprehensive solution. Frost protection and temperature regulation from 0 to 29°C ensure user comfort.

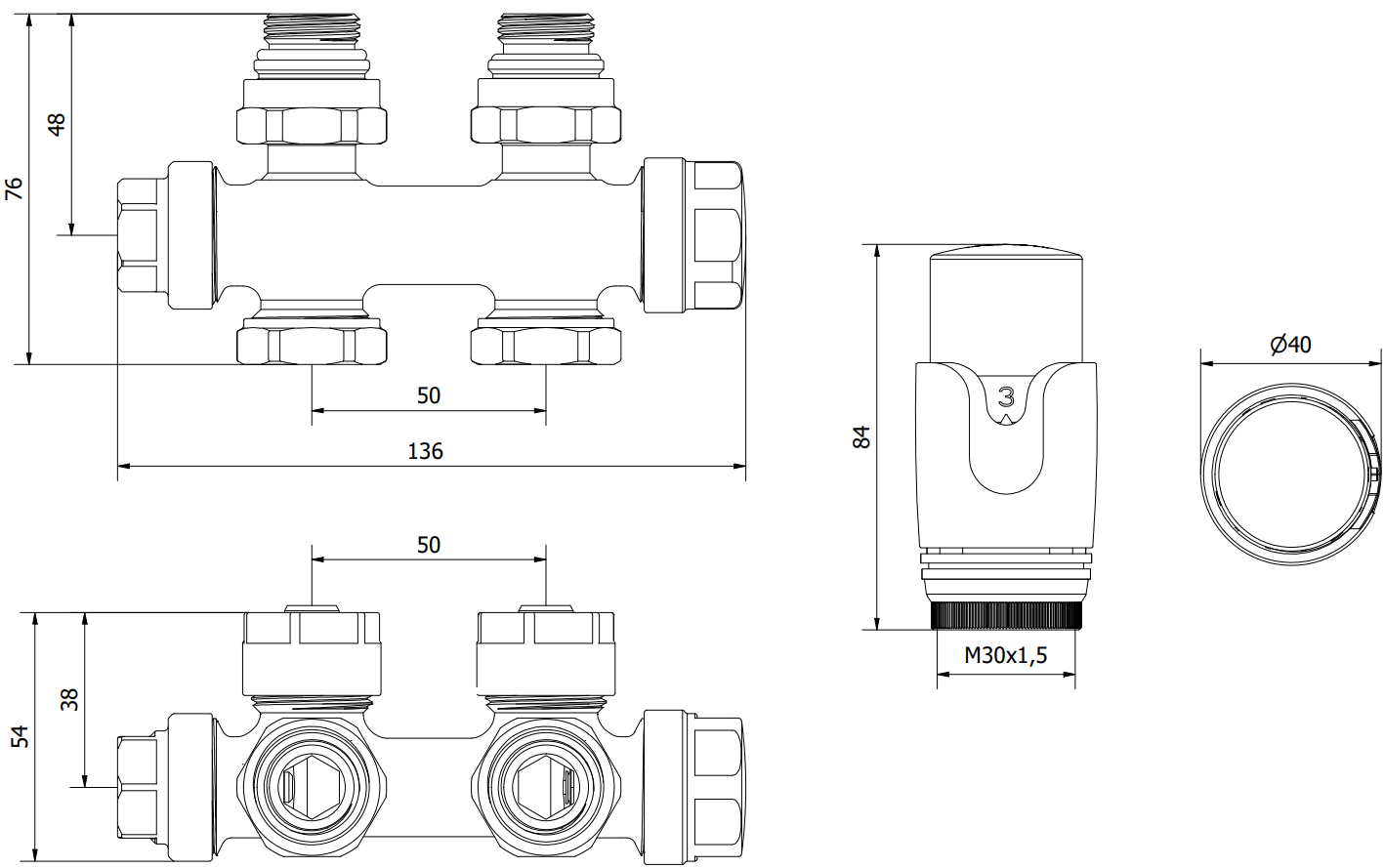

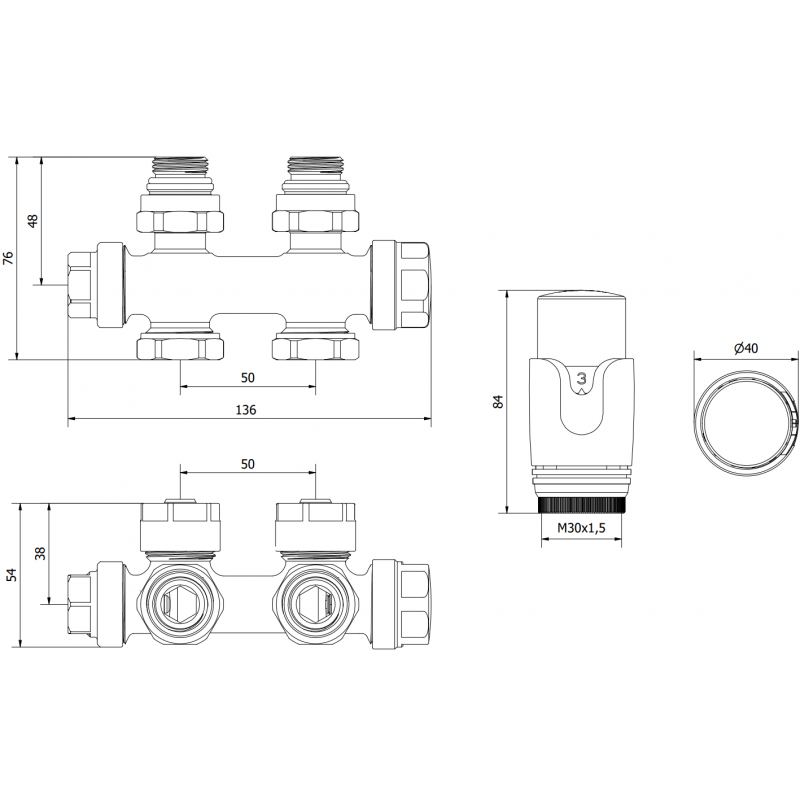

Technical data:

Valve material: Brass

Valve colour: Anthracite

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head colour: Anthracite

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility to connect the head to the left or right side of the valve

Includes additional connectors for 16x2 mm multilayer pipes and 15 mm copper pipe connectors

Universal supply and cut-off valve for angular and straight connections, regardless of whether the connection is in the wall or on the floor

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.
