Mexen G00 angled/straight thermostatic set, Duplex, DN50, chrome - W908-900-01

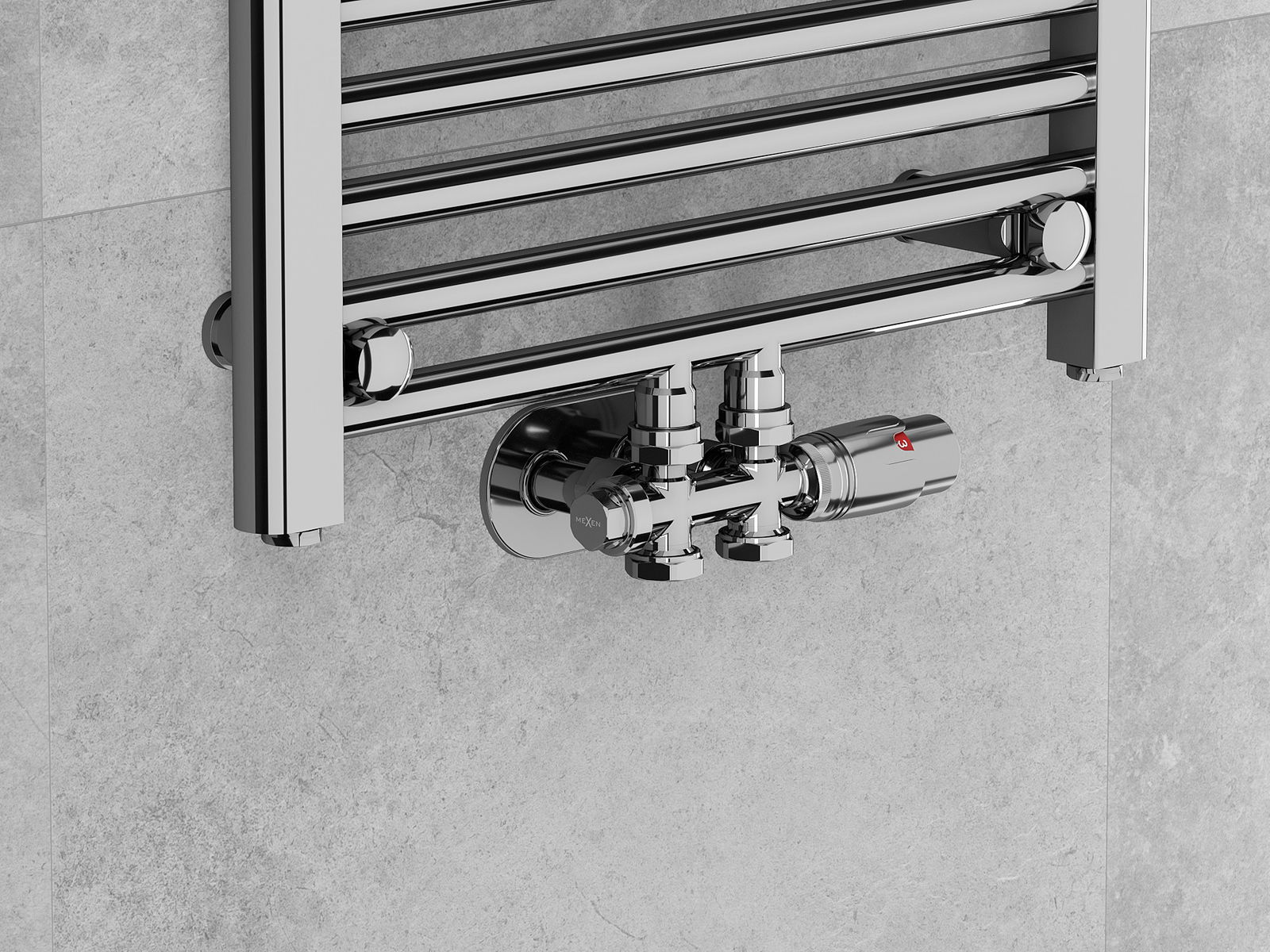

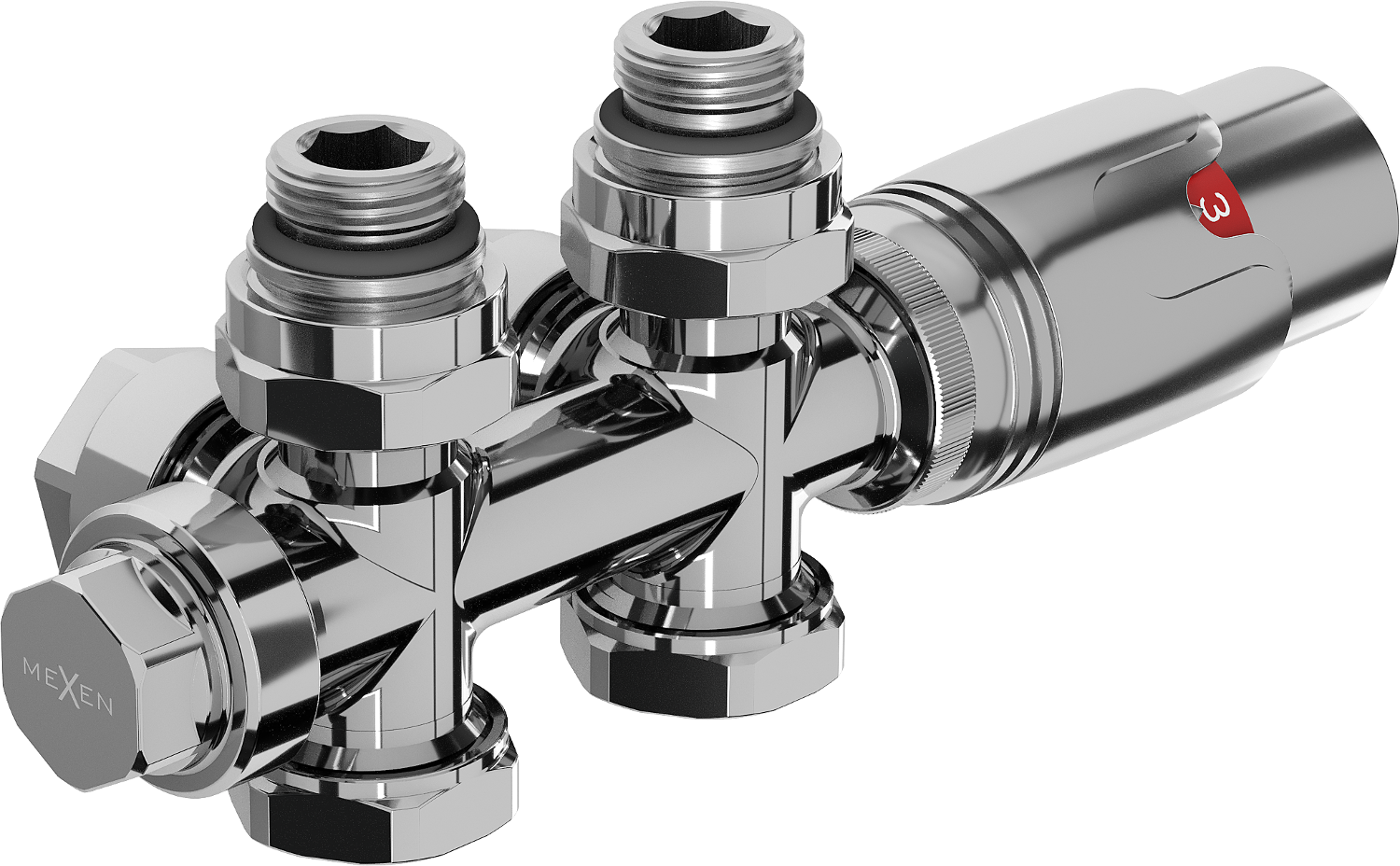

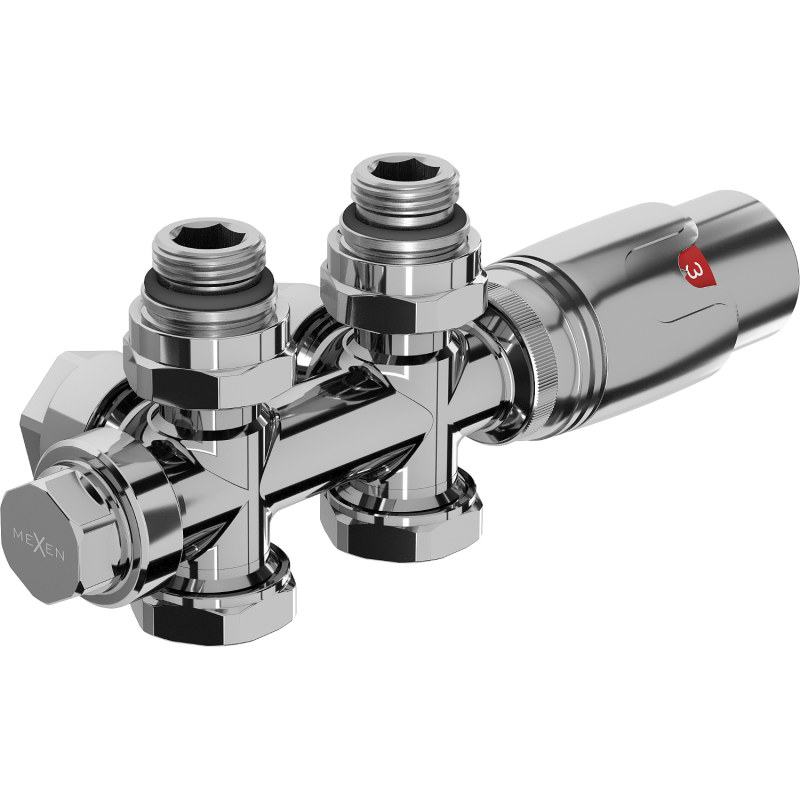

Mexen G00 angled/straight thermostatic set, Duplex, DN50, chrome offers exceptional functionality and high quality. Made of brass and covered with chrome, the set is characterized by durability and elegance. It has a bottom connection with a spacing of 50 mm, which increases its versatility. The maximum operating temperature is 120°C, and a working pressure of up to 10 bars guarantees reliability. Additionally, the set includes fittings for multilayer and copper pipes, making it a versatile choice.

Technical data:

Valve material: Brass

Valve colour: Chrome

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

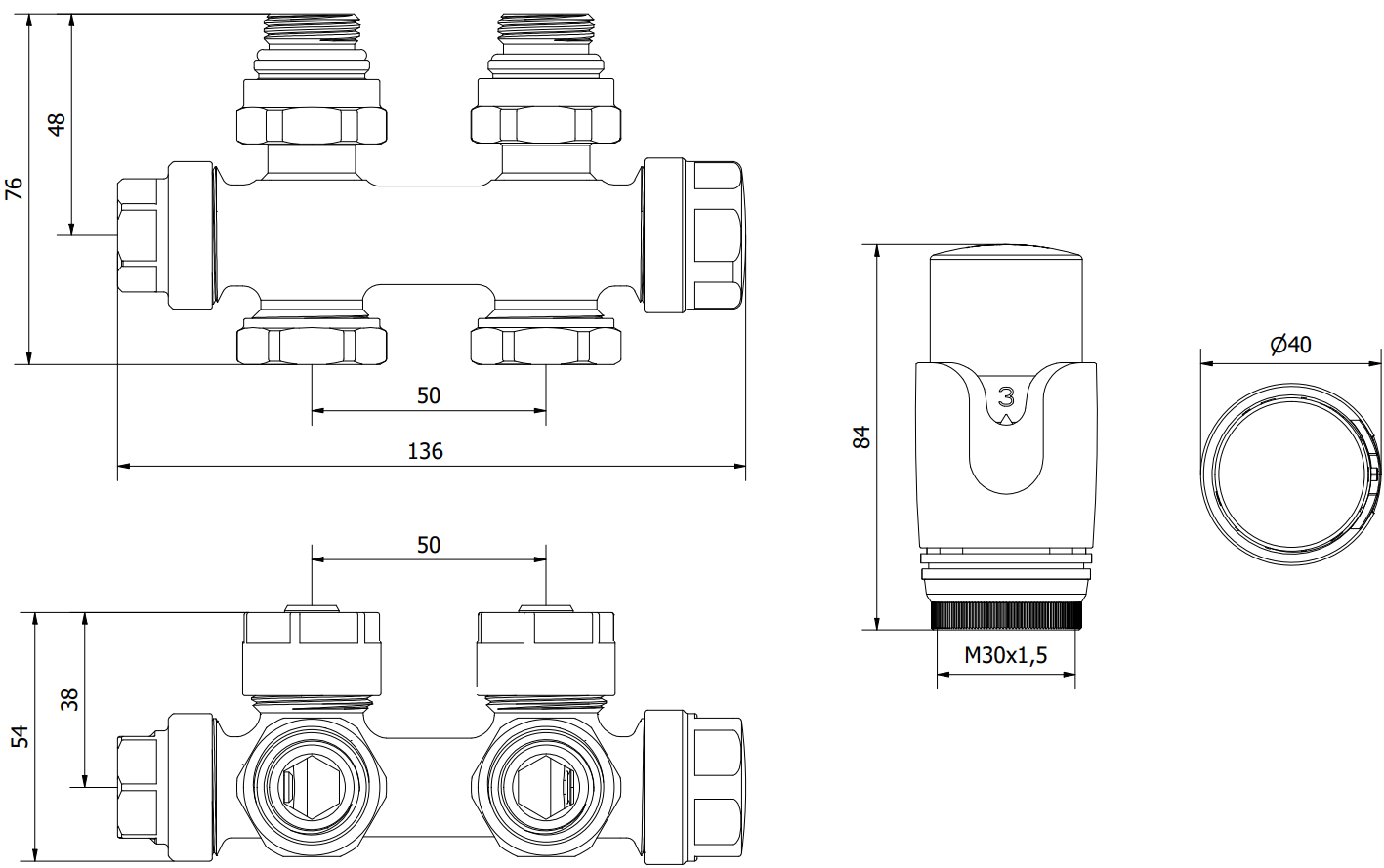

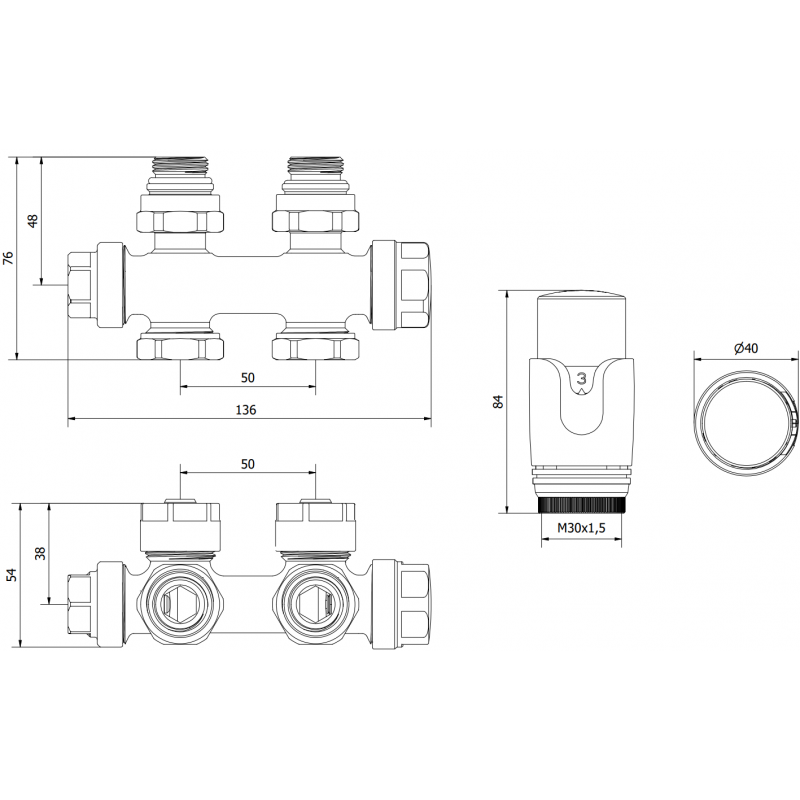

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head colour: Chrome

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection at 5°C

Possibility of connecting the head to the left or right side of the valve

Includes additional fittings for 16x2 mm multilayer pipes and 15 mm copper pipes

Universal supply and shut-off valve for angled and straight connections, regardless of whether the connection is in the wall or in the floor

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G00
Type
Straight , Angular
Colour
Chrome
Connection diameter
G 1/2"
Cover
No
