Mexen G00 angular/straight thermostatic set, Duplex, DN50, black - W908-900-70

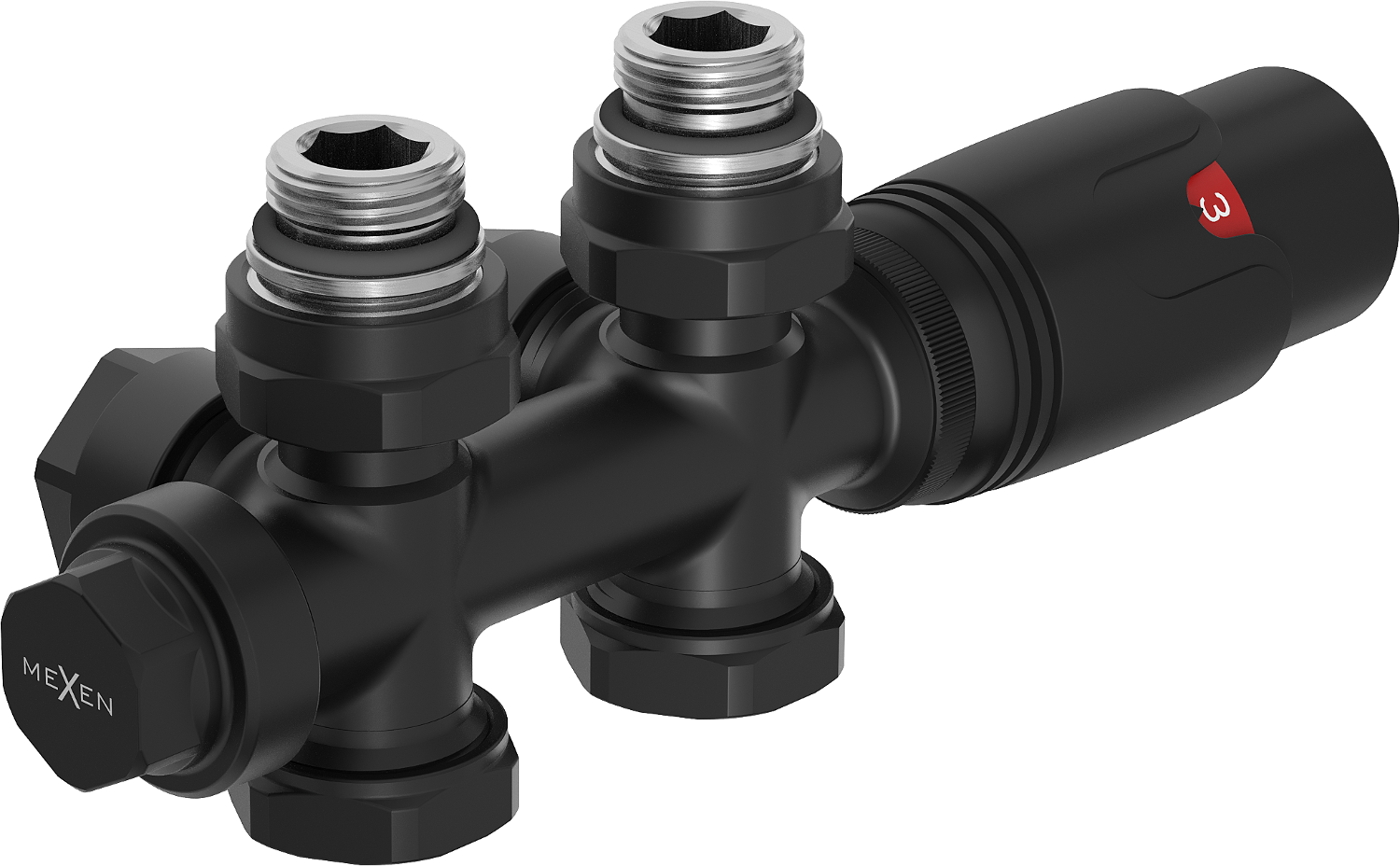

The Mexen G00 angular/straight thermostatic set, Duplex, DN50, black combines high performance with elegant design. Made of brass, available in black, the set offers universal connection for angular and straight pipes. It features a connection diameter of 1/2", a maximum operating temperature of 120°C, and a working pressure of up to 10 bars. Frost protection and additional connectors for multilayer and copper pipes make it a versatile choice for any installation.

Technical data:

Valve material: Brass

Valve colour: Black

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

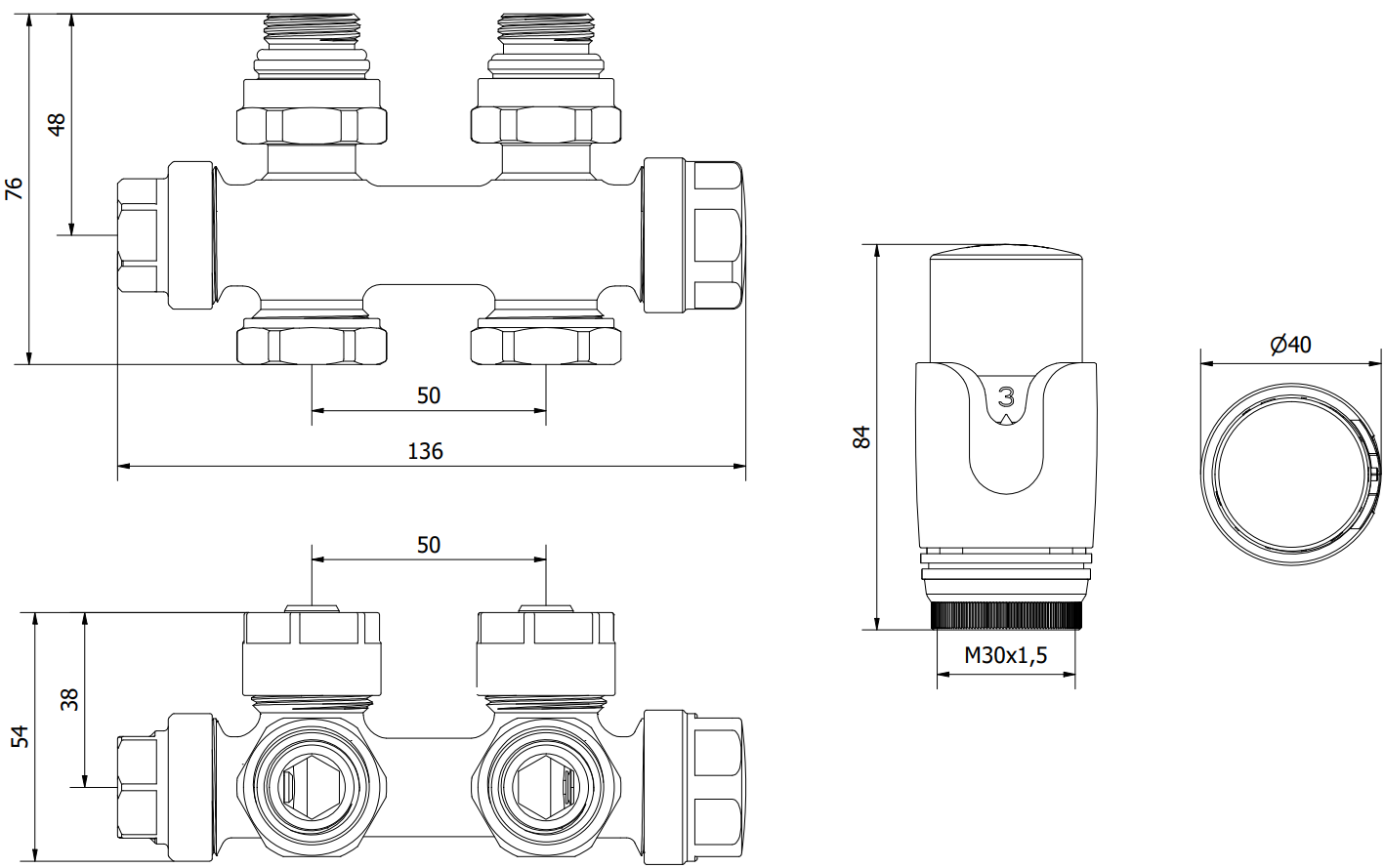

Bottom connection spacing: 50 mm

Head thread: M30 x 1.5 mm

Head colour: Black

Adjustment scale: 0-5

Temperature regulation range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility to connect the head on the left or right side of the valve

The kit includes additional connectors for multilayer pipes 16x2 mm and connectors for copper pipes 15 mm

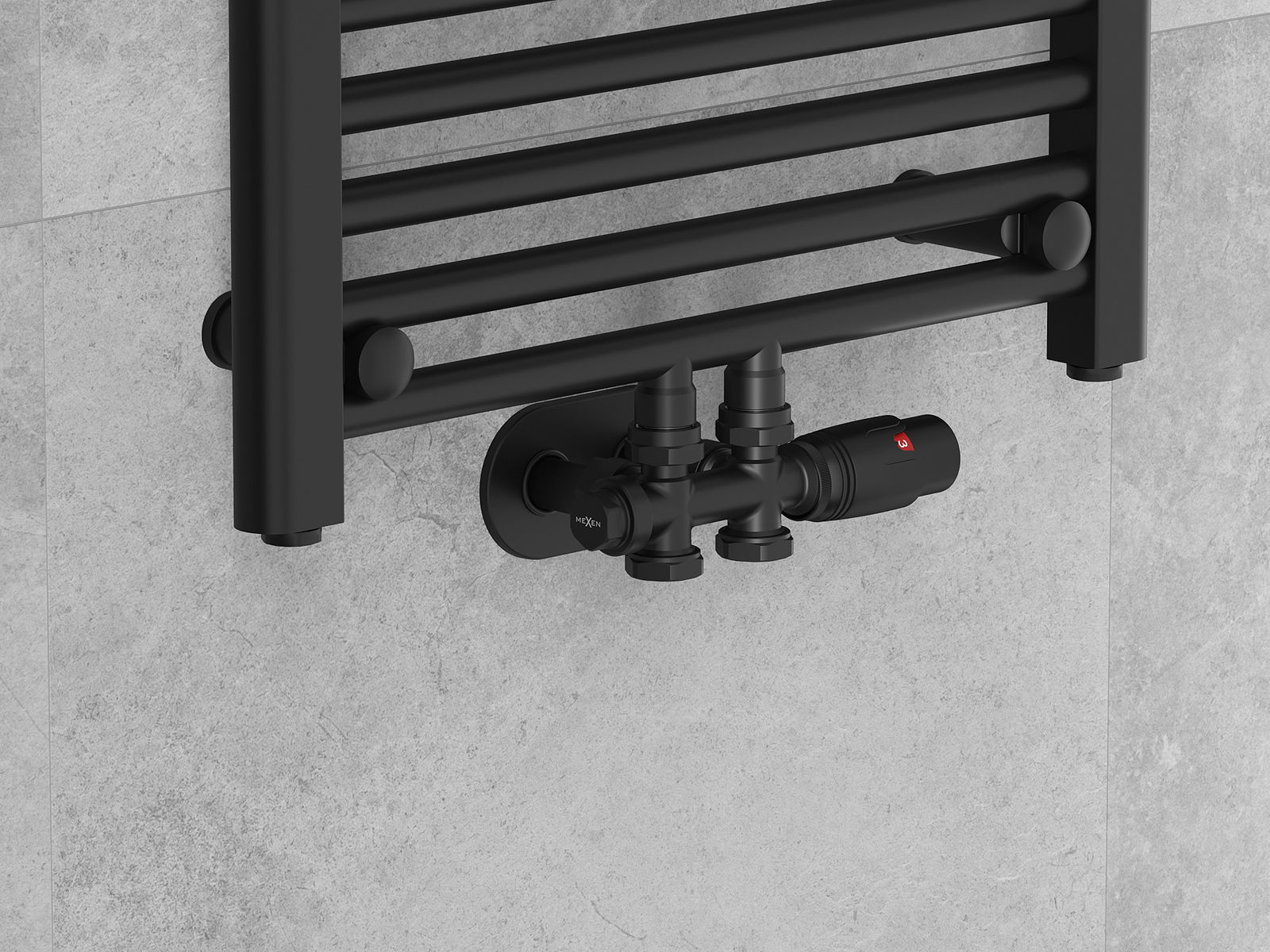

Universal supply and shut-off valve for angular and straight connections, regardless of whether the connection is in the wall or in the floor

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is suitable for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G00
Type
Straight , Angular
Colour
Black
Connection diameter
G 1/2"
Cover
No
