Mexen G00 thermostatic set angled/straight, Duplex, DN50, black - W908-900-70
Mexen G00 thermostatic set angled/straight, Duplex, DN50, black - W908-900-70 Mexen G00 thermostatic set angled/straight, Duplex, DN50, black - W908-900-70 Mexen G00 thermostatic set angled/straight, Duplex, DN50, black - W908-900-70
Brand:
Mexen
Seria:
G00
Ean:
5905315236869
Index:
W908-900-70
Color:
Black
Connection Diameter:
G 1/2"
Type:
Simple
Type:
Corner
Color - Black - ()

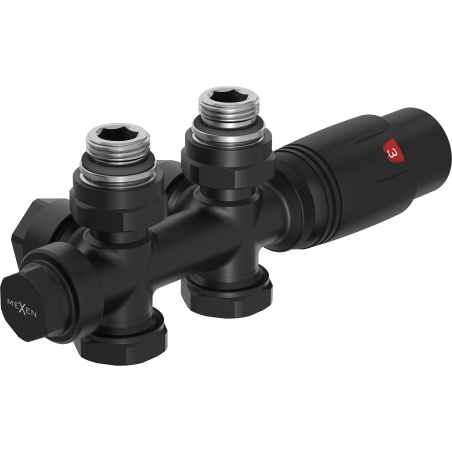

Mexen G00 thermostatic set angled/straight, Duplex, DN50, black - W908-900-70

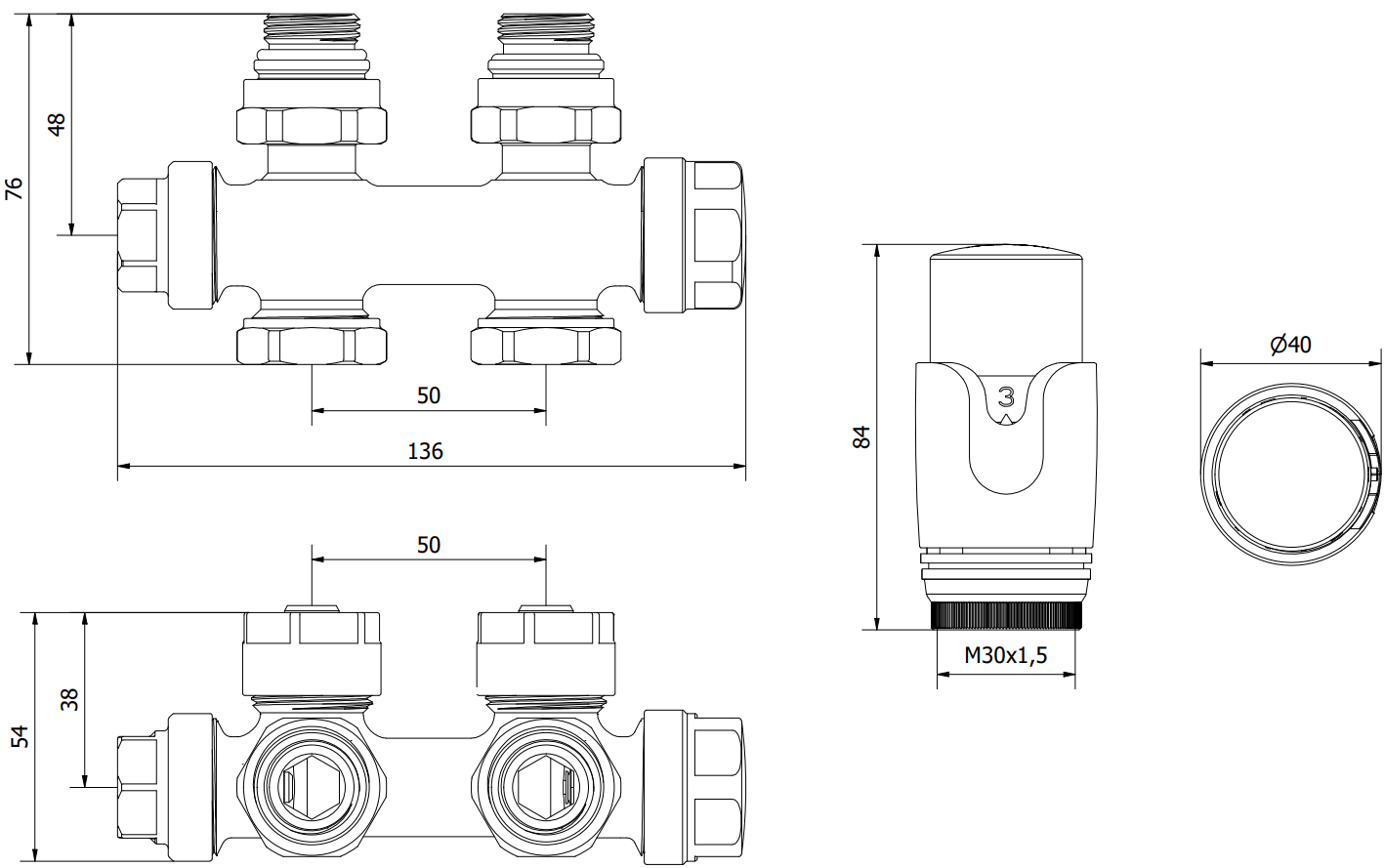

Technical data:

Valve material: Brass

Valve color: Black

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head color: Black

Adjustment scale: 0-5

Temperature range: 0-29 °C

Ambient temperature: max 50 °C

Anti-freeze protection 5°C

Head connection possible from either left or right side of the valve

Includes additional connectors for 16x2 mm multilayer pipes and 15 mm copper pipe connectors

Universal supply and shut-off valve for both angled and straight connections, irrespective of whether the connection is in the wall or floor

Innovative solutions used in this product

2-year warranty

The product is covered by a 2-year warranty. If you have any problems with the purchased product, please contact us via the contact form or by calling our hotline.

Serial
G00
Type
Simple , Corner
Color
Black
Connection Diameter
G 1/2"
Cover
No
