Mexen G00 angle/straight thermostatic set, Duplex, DN50, anthracite - W908-900-66
Mexen G00 angle/straight thermostatic set, Duplex, DN50, anthracite - W908-900-66 Mexen G00 angle/straight thermostatic set, Duplex, DN50, anthracite - W908-900-66 Mexen G00 angle/straight thermostatic set, Duplex, DN50, anthracite - W908-900-66
Brand:
Mexen
Seria:
G00
Ean:
5905315236852
Index:
W908-900-66
Color:
Anthracite
Connection Diameter:
G 1/2"
Type:
Simple
Type:
Corner
Color - Anthracite - ()

Mexen G00 angle/straight thermostatic set, Duplex, DN50, anthracite - W908-900-66

Technical data:

Valve material: Brass

Valve color: Anthracite

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

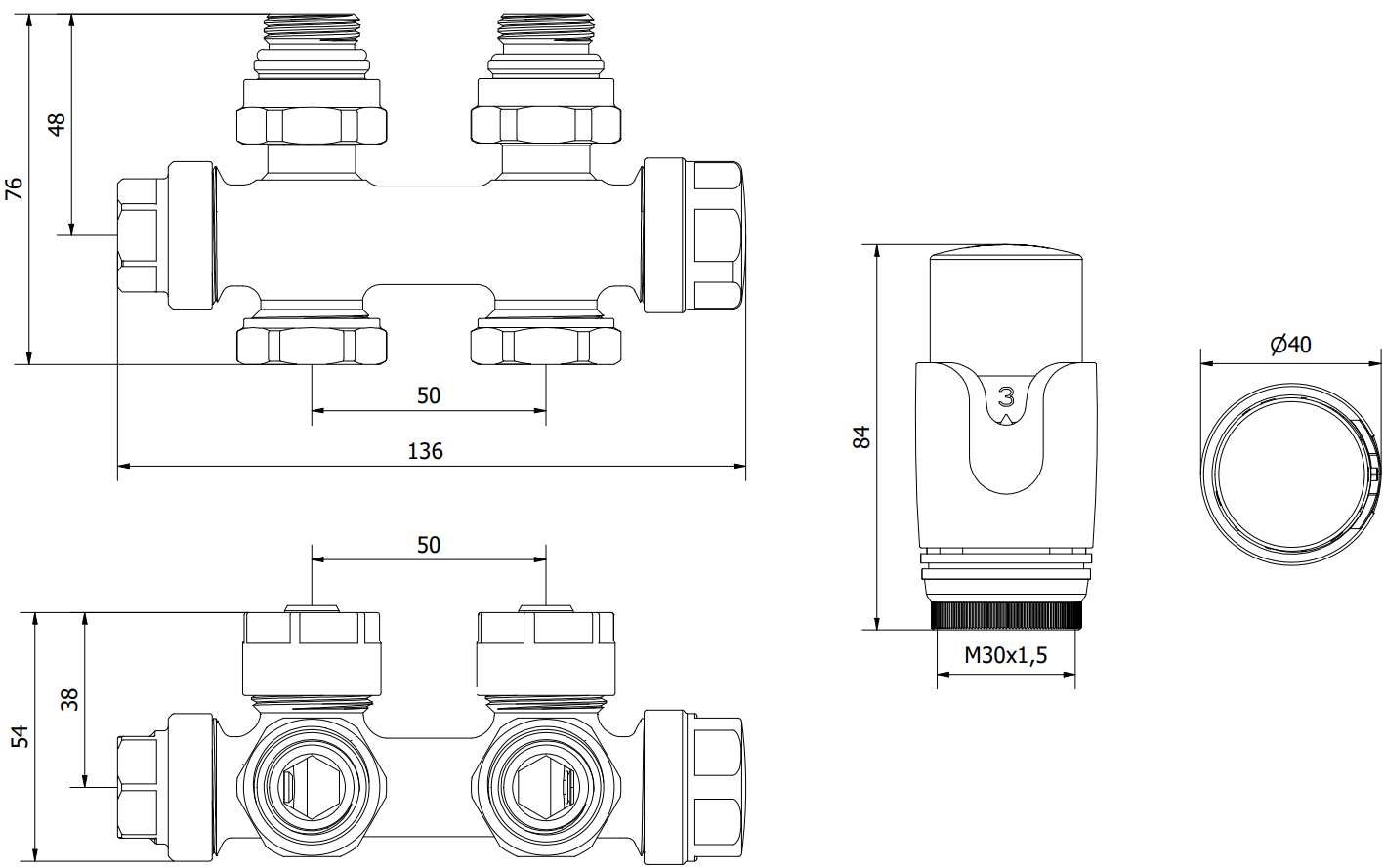

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head color: Anthracite

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility to connect the head on the left or right side of the valve

The set includes additional fittings for 16x2 mm multilayer pipes and fittings for 15 mm copper pipes

Universal supply and shut-off valve for angle and straight connections, regardless of whether the connection is in the wall or in the floor

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G00
Type
Simple , Corner
Color
Anthracite
Connection Diameter
G 1/2"
