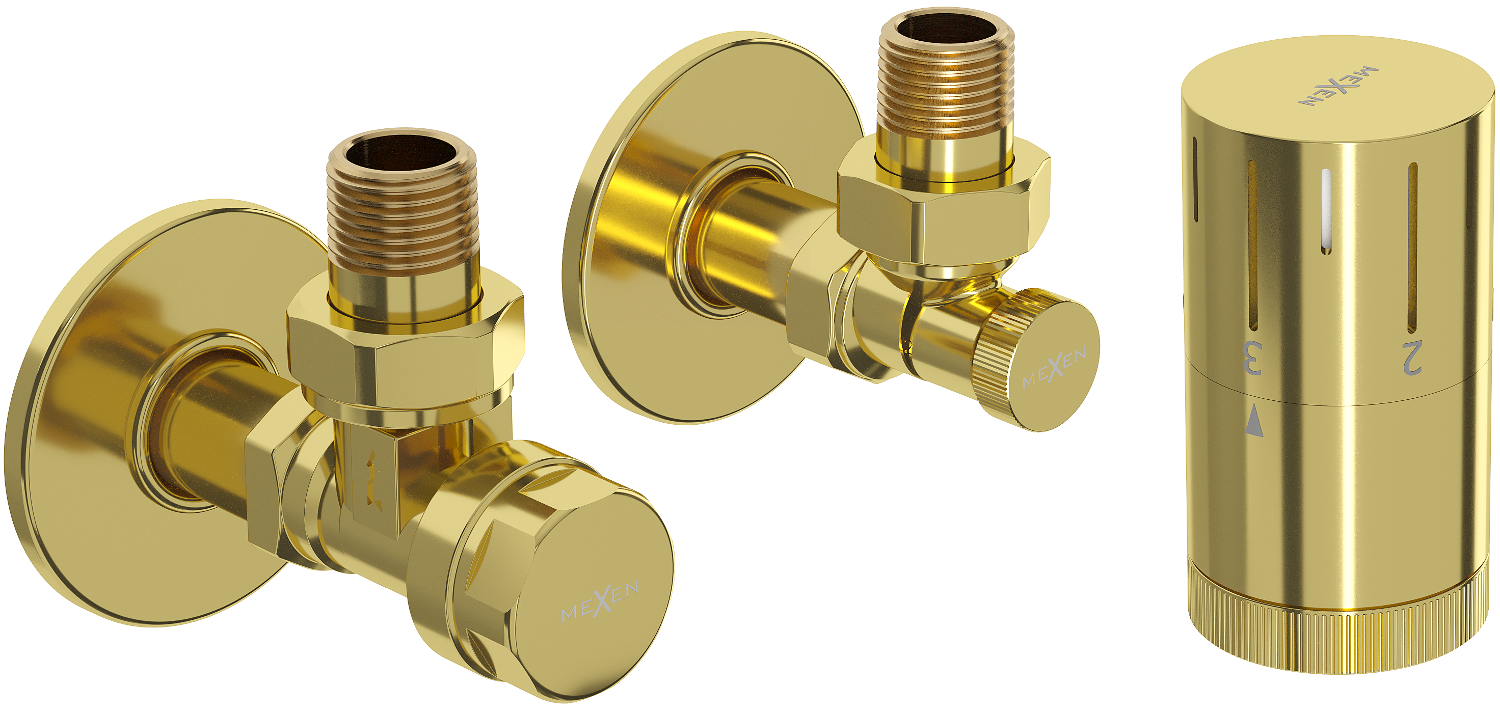

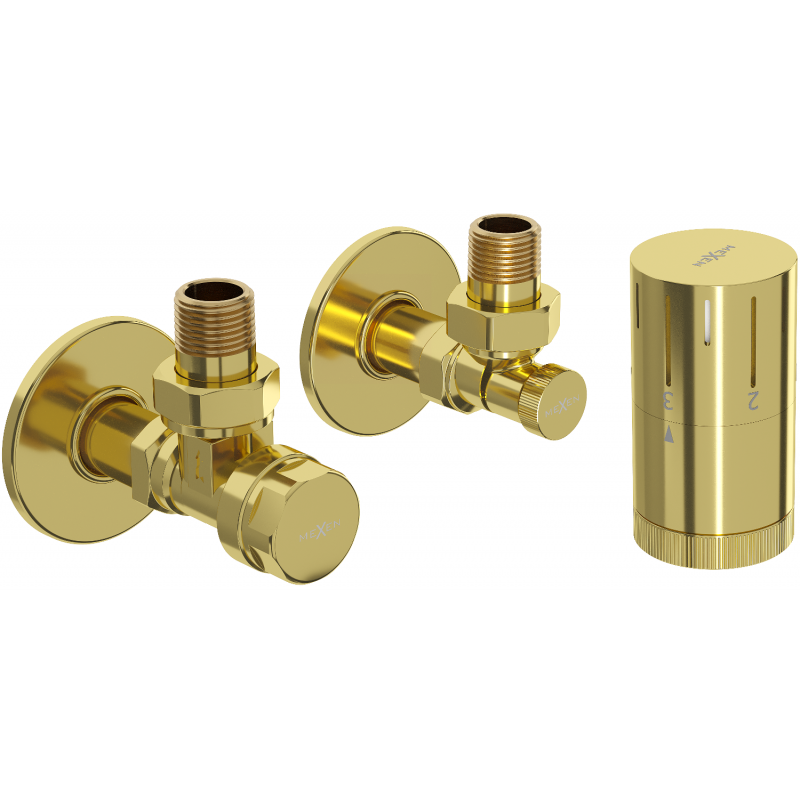

Mexen G05 angular thermostatic set with cover R, gold - W901-958-904-50
(0)
Questions
(0)

Mexen G05 angular thermostatic set with cover R, gold - W901-958-904-50

Mexen G05 angular thermostatic set with cover R, gold - W901-958-904-50
search
  • Mexen G05 angular thermostatic set with cover R, gold - W901-958-904-50
  • Mexen G05 angular thermostatic set with cover R, gold - W901-958-904-50
Mexen G05 angular thermostatic set with cover R, gold - W901-958-904-50
Mexen G05 angular thermostatic set with cover R, gold - W901-958-904-50 Mexen G05 angular thermostatic set with cover R, gold - W901-958-904-50
Brand:
Mexen
Seria:
G05
Ean:
5905315237590
Index:
W901-958-904-50
Color:
Gold
Connection Diameter:
G 1/2"
Type:
Corner
Series:
G05
Color - Gold - ()

Mexen G05 angular thermostatic set with cover R, gold - W901-958-904-50

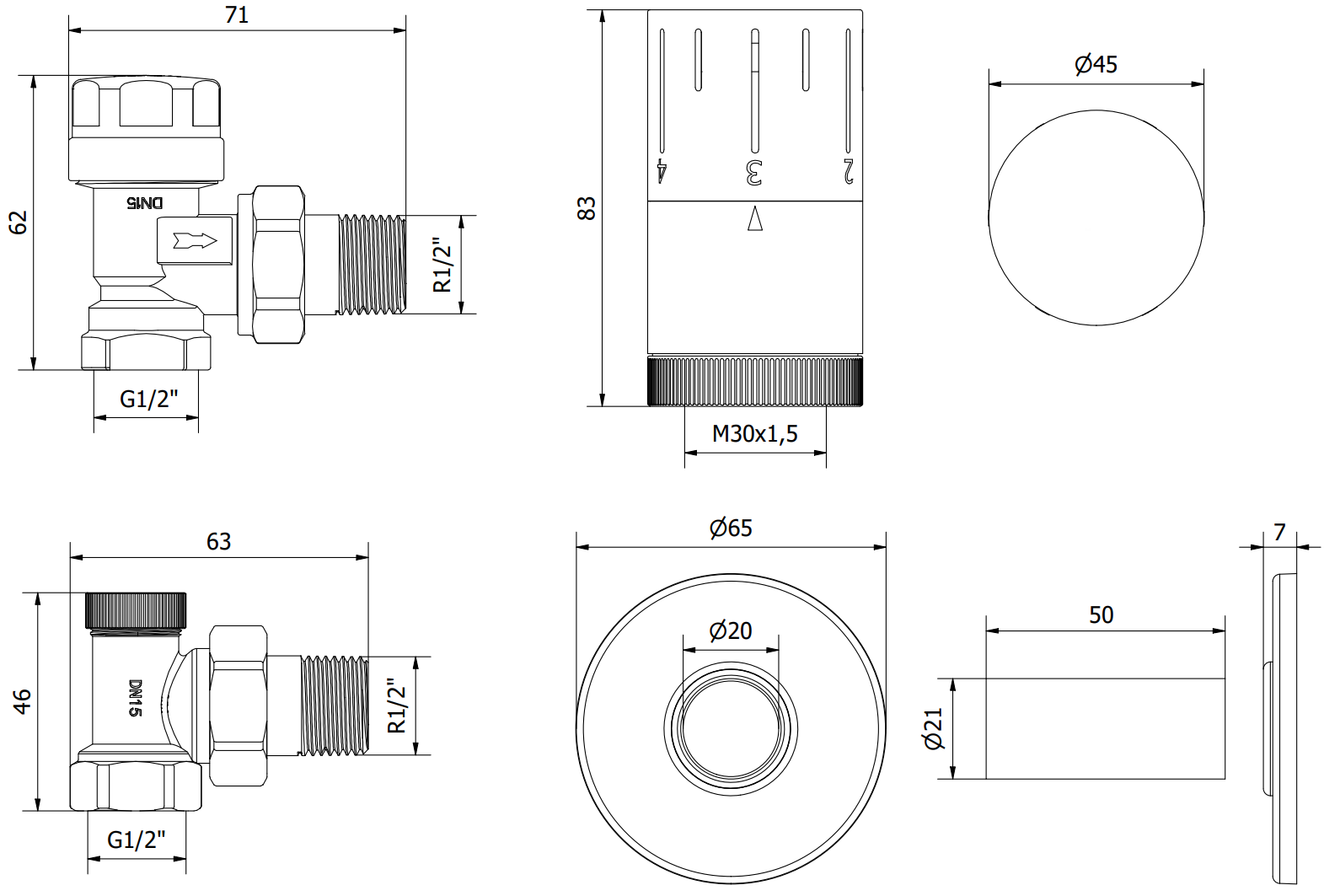

Technical data:

Valve material: Brass

Valve color: Gold

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Head thread: M30 x 1.5 mm

Head color: Gold

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Cover color: Gold

Rosette material: Stainless steel

External diameter of rosettes: 65 mm

Height of rosettes: 7 mm

Internal diameter of the inner hole: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Internal diameter of sleeves: 20 mm

The cover consists of two separate rosettes and a sleeve

The set includes a supply and cut-off radiator valve

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G05
Type
Corner
Color
Gold
Connection Diameter
G 1/2"
Cover
Yes
