Mexen G05 Axial Thermostatic Set, Gold - W903-958-50

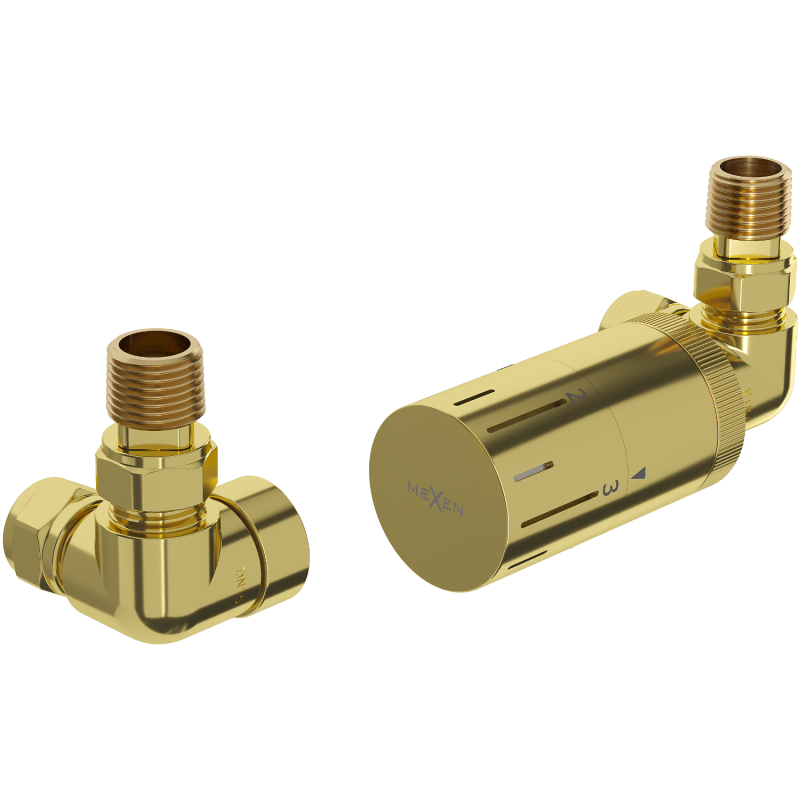

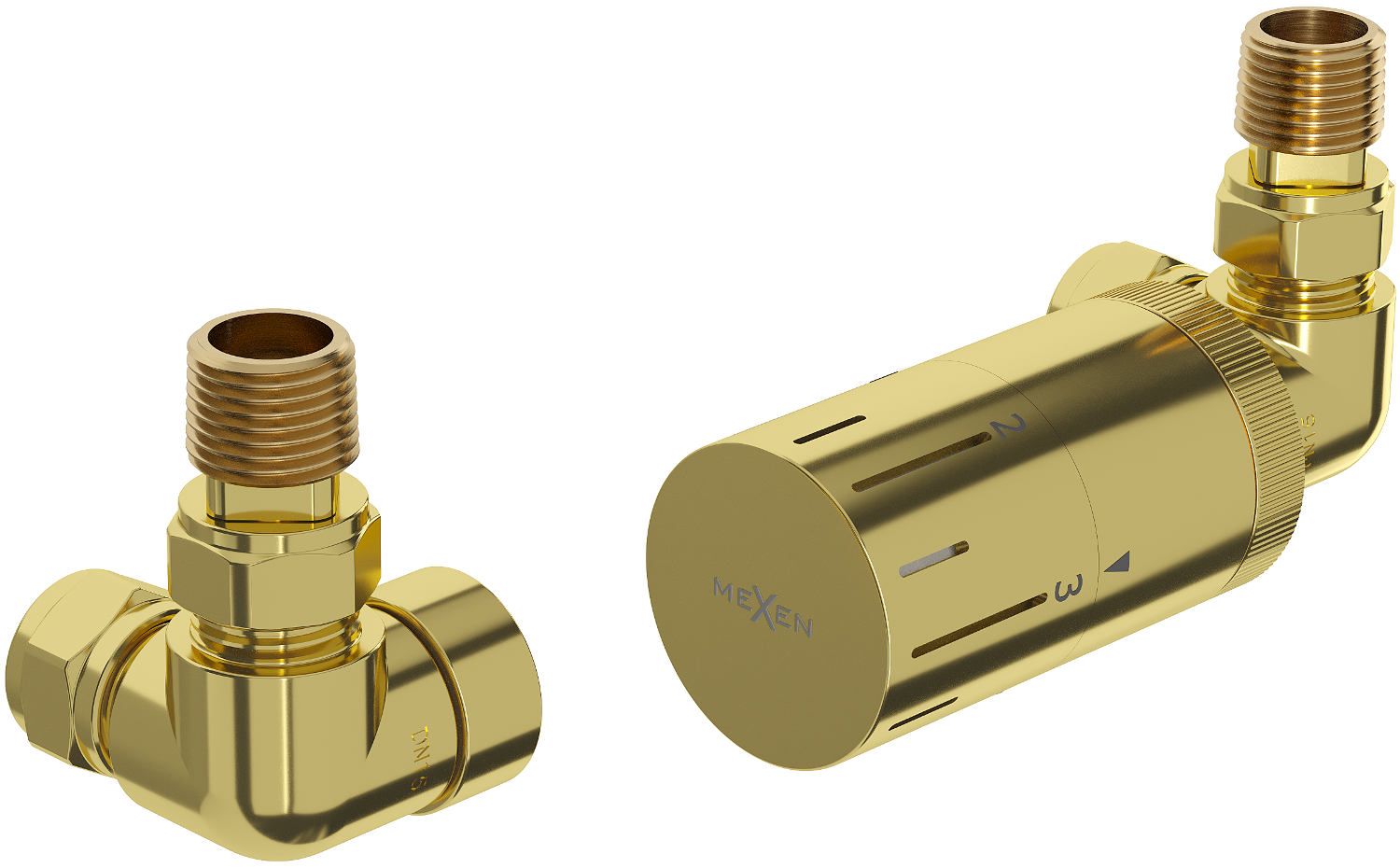

Mexen G05 is an elegant axial thermostatic set in gold colour, made of durable brass. The valves have a connection diameter of G 1/2", their maximum operating temperature is 120°C and they can operate under pressure up to 10 bar. The valves have an adjustment scale of 0-5, with a temperature range from 0 to 29°C and frost protection at 5°C. The set includes a supply and shut-off radiator valve, making it an ideal choice for those seeking functionality and style.

Technical Data:

Valve Material: Brass

Valve Colour: Gold

Valve Connection Diameter: G 1/2"

Operating Temperature: max 120 °C

Maximum Working Pressure: 10 bar

Head Thread: M30 x 1.5 mm

Head Colour: Gold

Adjustment Scale: 0-5

Temperature Adjustment Range: 0-29 °C

Ambient Temperature: max 50 °C

Frost Protection 5°C

The set includes a supply and shut-off radiator valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the operating pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe functioning in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.
